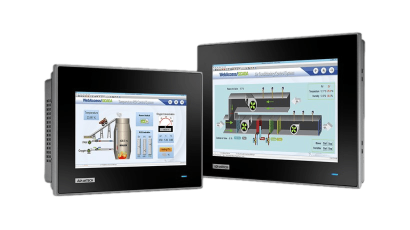

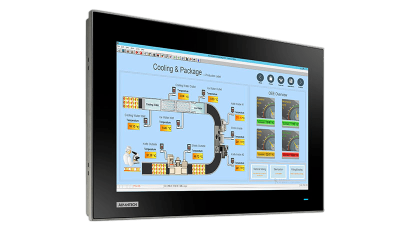

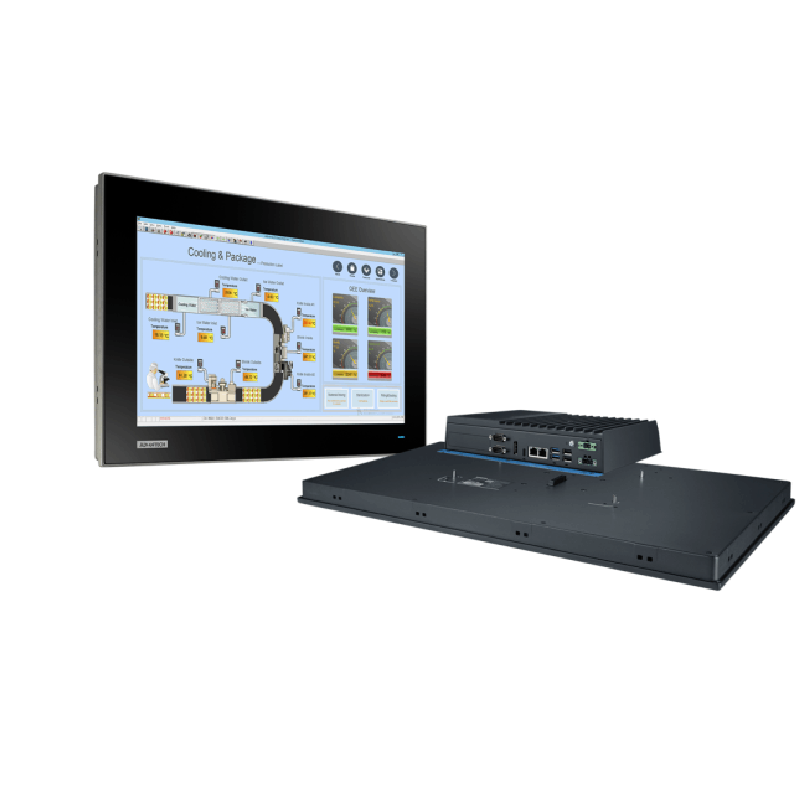

Panel Controllers

Intel Atom® IPC Controller

• Optimized BIOS & Embedded OS for 1ms real-time control (Windows and Linux)

• Achieve 32-axis motion control with 500 μs EtherCAT cycle time under Linux

• OPC UA and Modbus TCP/RTU as IT connectivity enabled by CODESYS

• EtherCAT, PROFIT, Ethernet I/P, CANopen as OT connectivity enabled by CODESYS

• Unlimited I/O points, fieldbus networks, and visualization variables for CODESYS applications

• CODESYS Visualization (Target and Web), SoftMotion and CNC/Robotics support by different package

• Advantech Data Connect (ADC) Library provides flexible and highly efficient data connection with 3rd party application software through symbols (PLC Handler) & shared memory (C++/C#)

• Intel Atom® x6425RE (1.9GHz) processor with 8GB DDR4 memory

• Port isolation for 8 x DI, 8 x DO, 2 x COM

Intel® Core™ IPC Controller

• Optimized BIOS & Embedded OS for 1ms real-time control (Windows and Linux)

• Achieve 128-axis motion control with 500 μs EtherCAT cycle time under Linux

• OPC UA and Modbus TCP/RTU as IT connectivity enabled by CODESYS

• EtherCAT, PROFIT, Ethernet I/P, CANopen as OT connectivity enabled by CODESYS

• Unlimited I/O points, fieldbus networks, and visualization variables for CODESYS applications

• CODESYS Visualization (Target and Web), SoftMotion and CNC/Robotics support by different package

• Advantech Data Connect (ADC) Library provides flexible and highly efficient data connection with 3rd party application software through symbols (PLC Handler) & shared memory (C++/C#)

• 13th Generation Intel® Core™ i7/i5 Processor with 8GB DDR5 memory

• Port isolation for 8 x DI, 8 x DO, 4 x COM
