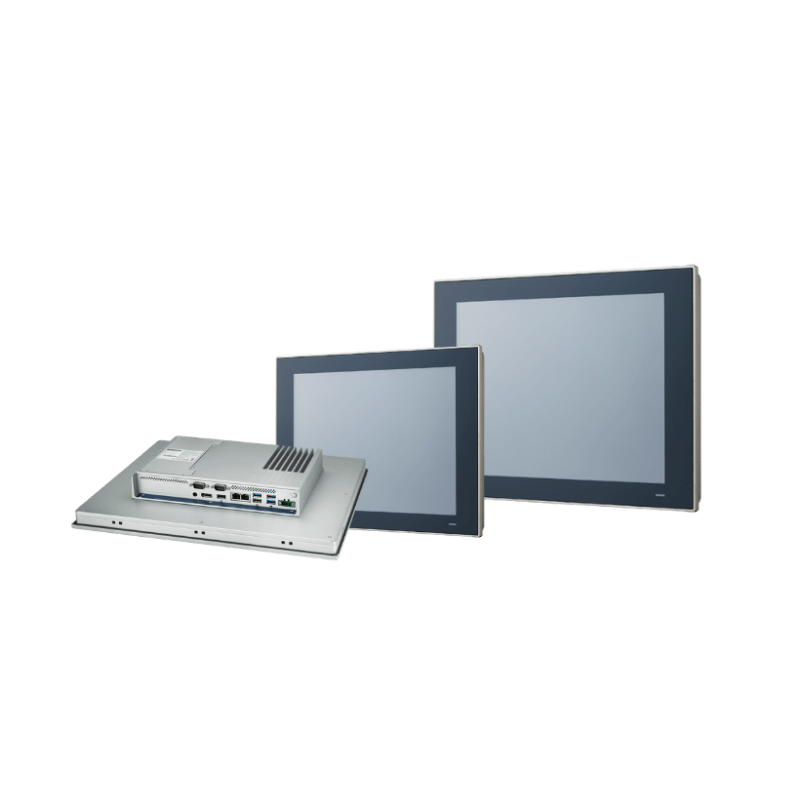

Control Panel

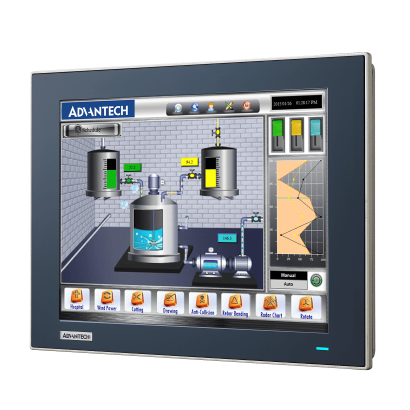

12.1" XGA TFT LED LCD Touch Panel Computer with 8th Gen. Intel® Core™ i3/ i5/ i7 Processor, built-in 8G DDR4 RAM

• Industrial-grade 12.1 XGA TFT LCD with 50K lifetime and LED backlight

• 8th Gen. Intel® Core™ i3- 8145UE dual-core/ i5-8365UE quad-core/ i7-8665UE quad-core processor with built-in 8 GB DDR4 SO-DIMM

• Dual channel memory slots support up to 64G in total

• Compact, fanless embedded system with aluminum alloy front bezel and chassis grounding protection

• True-flat touchscreen with 5-wire resistive touch control and IP66-rated front panel

• Support expansion via Full-size Mini PCIe and two M.2 slots (NVMe, 5G)

• Diverse system I/O and isolated digital I/O via iDoor technology

• Support fieldbus protocols/GPS/GPRS/Wi-Fi capabilities via iDoor technology

• Support TPM2.0 hardware security

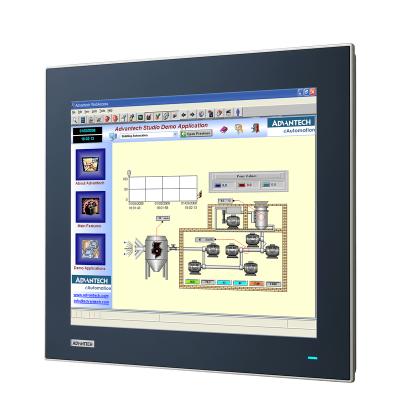

15" XGA TFT LED LCD Touch Panel Computer with 8th Gen. Intel® Core™ i3/ i5/ i7 Processor, built-in 8G DDR4 RAM

• Industrial-grade 15" XGA TFT LCD with 70K lifetime and LED backlight

• 8th Gen. Intel® Core™ i3- 8145UE dual-core/ i5-8365UE quad-core/ i7-8665UE quad-core processor with built-in 8 GB DDR4 SO-DIMM

• Compact, fanless embedded system with aluminum alloy front bezel and chassis grounding protection

• True-flat touchscreen with 5-wire resistive touch control and IP66-rated front panel

• Supports expansion via Full-size Mini PCIe and NVMe

• Diverse system I/O and isolated digital I/O via iDoor technology

• Supports fieldbus protocols via iDoor technology

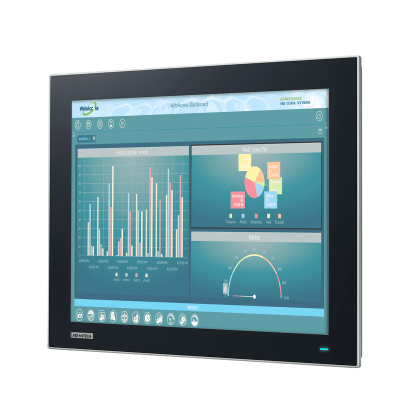

17" SXGA TFT LED LCD Touch Panel Computer with 8th Gen. Intel® Core™ i3/ i5/ i7 Processor, built-in 8G DDR4 RAM

• Industrial-grade 17" SXGA TFT LCD with 50K lifetime and LED backlight

• 8th Gen. Intel® Core™ i3- 8145UE dual-core/ i5-8365UE quad-core/ i7-8665UE quad-core processor with built-in 8 GB DDR4 SO-DIMM

• Dual channel memory slots support up to 64G in total

• Compact, fanless embedded system with aluminum alloy front bezel and chassis grounding protection

• True-flat touchscreen with 5-wire resistive touch control and IP66-rated front panel

• Support expansion via Full-size Mini PCIe and two M.2 slots (NVMe, 5G)

• Diverse system I/O and isolated digital I/O via iDoor technology

• Support fieldbus protocols/GPS/GPRS/Wi-Fi capabilities via iDoor technology

• Support TPM2.0 hardware security

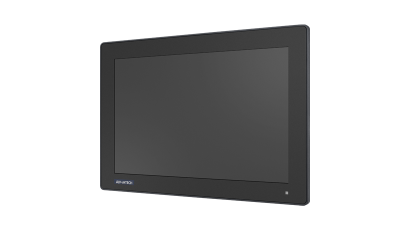

10.1" WXGA Touch Panel Computer with Qualcomm® QCS6490 Octa-Core Kryo™ 670 Processor, 12 TOPS AI NPU, built-in 8G DDR5 RAM

• Powered by Qualcomm® QCS6490 with Kryo™ 670 Octa-Core CPU and 12 TOPS AI NPU for real-time on-device inference

• Supports Windows 11 IoT Enterprise LTSC, Linux Yocto, and Android for flexible software deployment

• IP66-rated, -10°C to 50°C wide operating temperature, and 10G shock resistance for continuous industrial operation

• 12W TDP with on-board 8GB DDR5 RAM and 128GB UFS storage for compact, low-power edge computing

• Rich I/O with 2x GbE RJ45, 2x USB 3.0 Type-A, RS-232/422/485 and RS-485/CAN 2.0B serial ports, plus optional M.2 Wi-Fi/BT and 5G expansion

• Capacitive touchscreen with 1.8mm cover glass for smooth, precise interaction

• Panel or VESA mounting for versatile installation across industrial sites

• 24VDC ±20% power supply designed for reliable factory-floor deployment

15.6" FHD Touch Panel Computer with Qualcomm® QCS6490 Octa-Core Kryo™ 670 Processor, 12 TOPS AI NPU, built-in 8G DDR5 RAM

• Powered by Qualcomm® QCS6490 with Kryo™ 670 Octa-Core CPU and 12 TOPS AI NPU for real-time on-device inference

• Supports Windows 11 IoT Enterprise LTSC, Linux Yocto, and Android for flexible software deployment

• IP66-rated, -10°C to 50°C wide operating temperature, and 10G shock resistance for continuous industrial operation

• 12W TDP with on-board 8GB DDR5 RAM and 128GB UFS storage for compact, low-power edge computing

• Rich I/O with 2x GbE RJ45, 2x USB 3.0 Type-A, RS-232/422/485 and RS-485/CAN 2.0B serial ports, plus optional M.2 Wi-Fi/BT and 5G expansion

• Capacitive touchscreen with 1.8mm cover glass for smooth, precise interaction

• Panel or VESA mounting for versatile installation across industrial sites

• 24VDC ±20% power supply designed for reliable factory-floor deployment
