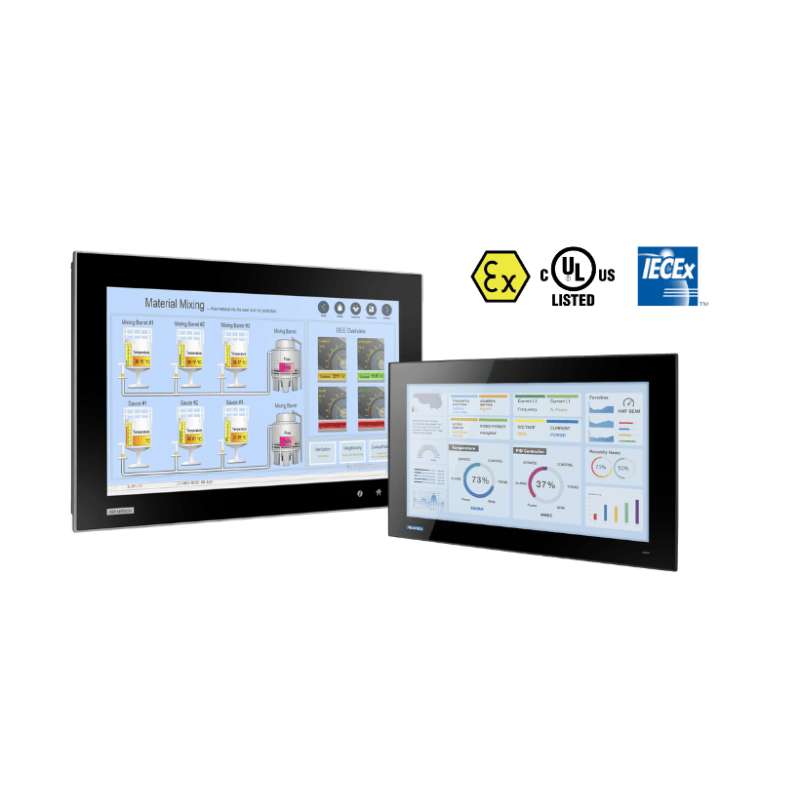

Explosion-Protected HMI

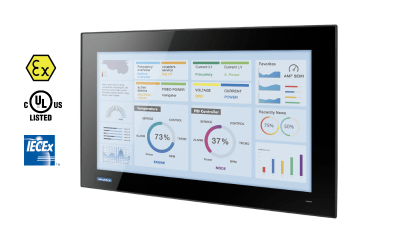

18.5" FHD TFT LED LCD Touch Panel Computer with 13th Gen Intel® Core™ Processors and ATEX Explosion-Protected certification

• Industrial-grade 18.5" FHD TFT LCD with 50K lifetime and LED backlight

• Intel® Core™ Processors (13th Gen ), i7-1365URE deca-core

• Built in single DDR5 4800 RAM with 32GB capacity

• Built in sTLC SSD of 256GB with extreme longevity and reliability

• Compact, fanless embedded system with aluminum alloy front bezel and chassis grounding protection

• Specialized enhanced impact proof touchscreen with PCAP touch control and IP65-rated front panel

• Diverse system including Type C connector with USB 3.2, DP 1.4a, 15W power delivery

• Support TPM2.0 hardware security

• IEC Ex & ATEX certification for Zone 2/22 criteria and Class I Division II explosion proof certification

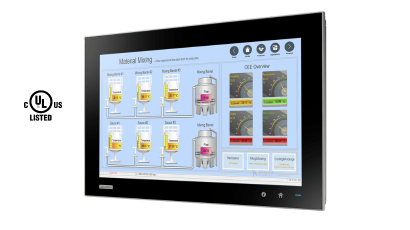

Computer with 8th Gen. Intel® Core™ i5 Processor, built-in 8G DDR4 RAM and UL Class 1 Division 2

• Industrial-grade 18.5" WXGA TFT LCD with 50K lifetime and LED backlight

• 8th Gen. Intel® Core™ i5-8365UE quad-core processor with built-in 8 GB DDR4 SO-DIMM

• Dual channel memory slots support up to 64G in total

• Compact, fanless embedded system with aluminum alloy front bezel and chassis grounding protection

• True-flat touchscreen with PCAP touch control and IP66-rated front panel

• Support expansion via Full-size Mini PCIe and two M.2 slots (NVMe, 5G)

• Support TPM2.0 hardware security

12" XGA TFT LED LCD Thin-Client Terminal with Intel® Atom™ Processor for Hazardous Locations Introduction

• Industrial-grade 12" XGA TFT LCD with 50K lifetime and LED backlight

• Intel® Atom™ E3845 1.91 GHz quad-core processor with 4 GB DDR3L SDRAM

15" XGA Industrial Monitor for Hazardous Location, with 316L Stainless Steel Front Panel

• 15" XGA TFT LCD with LED backlight

• Stainless steel 316L front panel

• IP65 compliant front panel

• -20 ~ 60°C (-4 ~ 140°F) wide operating temperature range

• Enhanced 5-wire resistive touch panel

• Direct VGA & DVI-D video input interface

• Combo RS-232 & USB interface for touchscreen function

• Supports 24 VDC input and 100~240 VAC input (optional AC adapter)

• OSD control pad with lockable function on front panel

• Certified with UL CID2 for hazardous environment

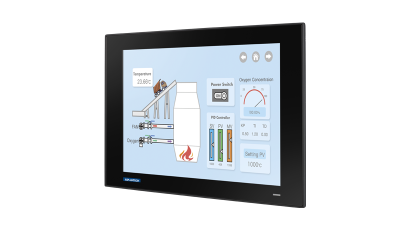

12" XGA TFT LCD Touch Panel Computer with Intel Alder Lake-N i3-N305, featuring ATEX Explosion-Proof Certification.

• Industrial-grade 12" XGA TFT LCD with 50K lifetime and LED backlight

• Intel® Alder Lake-N i3-N305 octa-core processor

• Built in single DDR5 5600 RAM with 16GB capacity

• Built in Explosion-Proof certified SSD for secure data storage

• Compact, fanless embedded system with aluminum alloy front bezel and IP66-rated front panel

• Specialized PCAP touch screen with enhanced durability and chemical resistance for hazardous environments

• Diverse system including dual 2.5GbE LAN, USB 3.2, USB Type-C with high-speed data transmission

• Support TPM2.0 hardware security for data protection and system integrity

• IECEx/ATEX Zone 2/22 explosion proof certification and Class I Division II explosion proof certification

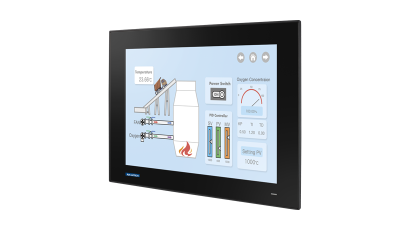

15" XGA TFT LCD Touch Panel Computer with Intel Alder Lake-N i3-N305, featuring ATEX Explosion-Proof Certification.

• Industrial-grade 15" XGA TFT LCD with 50K lifetime and LED backlight

• Intel® Alder Lake-N i3-N305 octa-core processor

• Built in single DDR5 5600 RAM with 16GB capacity

• Built in Explosion-Proof certified SSD for secure data storage

• Compact, fanless embedded system with aluminum alloy front bezel and IP66-rated front panel

• Specialized PCAP touch screen with enhanced durability and chemical resistance for hazardous environments

• Diverse system including dual 2.5GbE LAN, USB 3.2, USB Type-C with high-speed data transmission

• Support TPM2.0 hardware security for data protection and system integrity

• IECEx/ATEX Zone 2/22 explosion proof certification and Class I Division II explosion proof certification
