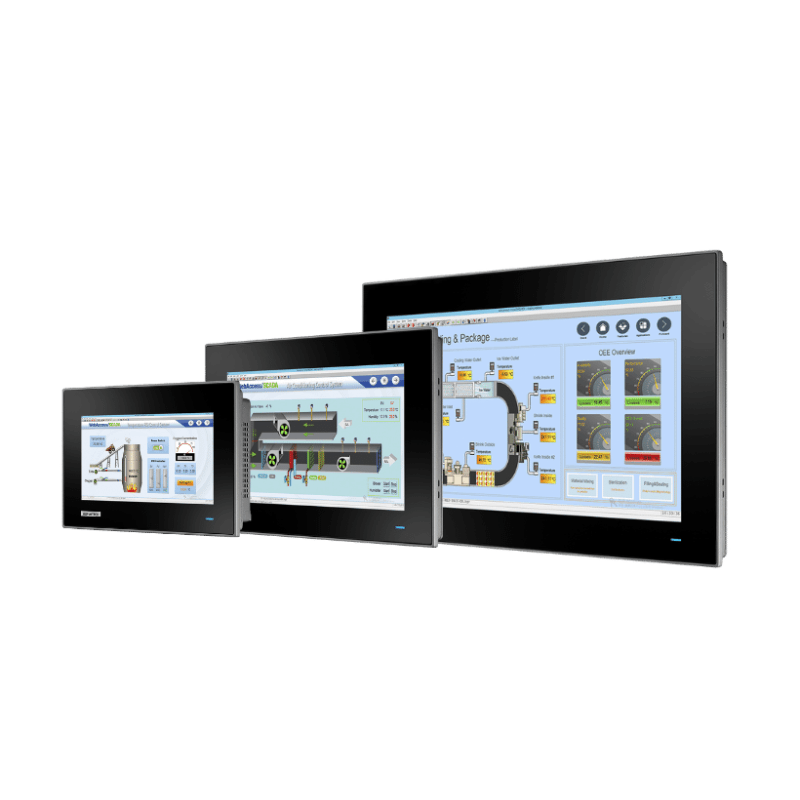

Web-Browser Terminal

$0.00

Built on ARM architecture, it delivers versatile web terminal functionality with Linux Yocto and Android support for quick deployment

Built on ARM architecture, it delivers versatile web terminal functionality with Linux Yocto and Android support for quick deployment

TPC-100W/WX Series

Standard Series

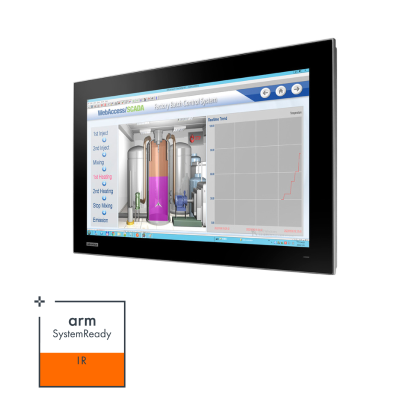

  • TPC-121W

    [Yocto/Android] 21.5" Touch Panel Computer with ARM Cortex™-A53 Processor

    • arm SystemReady IR certified

    • NXP® ARM® Cortex™-A53 i.MX 8M Mini quad-core processor

    • 16:9 LCD with multi-touch P-CAP and true-flat IP66-rated front panel

    • Up to 4 GB DDR4 RAM and 16 GB eMMC storage onboard

    • 1 mb FRAM backup memory for unexpected power interruptions

    • 2 x Serial port with 120Ω termination resistor that one supports the CAN 2.0B protocol and offers a programmable bit rate of up to 1 Mb/sec

    • Embedded browser and for rapid Web App development

    • Supports Linux Yocto and Android

    • Compatible with VESA and panel mounting

    Learn More

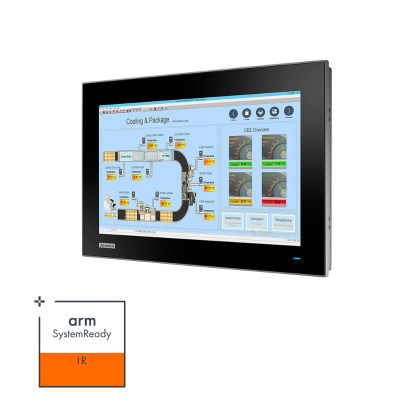

  • TPC-115W

    [Yocto/Android] 15.6" Touch Panel Computer with ARM Cortex™-A53 Processor

    • arm SystemReady IR certified

    • NXP® ARM® Cortex™-A53 i.MX 8M Mini quad-core processor

    • 15.6" 16:9 LCD with multi-touch P-CAP and true-flat IP66-rated front panel

    • Up to 4 GB DDR4 RAM and 16 GB eMMC storage onboard

    • 1 mb FRAM backup memory for unexpected power interruptions

    • 2 x Serial port with 120Ω termination resistor that one supports the CAN 2.0B protocol and offers a programmable bit rate of up to 1 Mb/sec

    • Embedded browser and for rapid Web App development

    • Supports Linux Yocto and Android

    • Wide operating temperature range (-20 ~ 60 °C/-4 ~ 140 °F)

    Learn More ➔

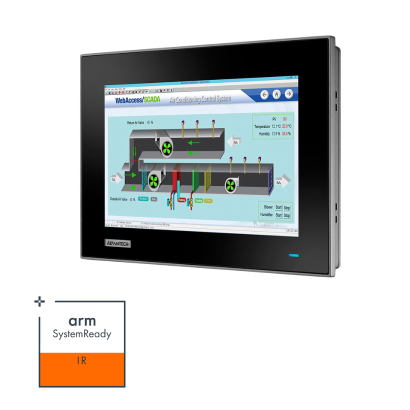

  • TPC-110W

    [Yocto/Android] 10.1" Touch Panel Computer with ARM Cortex™-A53 Processor

    • arm SystemReady IR certified

    • NXP® ARM® Cortex™-A53 i.MX 8M Mini quad-core processor

    • 10.1" 16:9 LCD with multi-touch P-CAP and true-flat IP66-rated front panel

    • Up to 4 GB DDR4 RAM and 16 GB eMMC storage onboard

    • 2 x 10/100/1000 Mbps LANs with optional IEEE 802.3at/af PoE-PD module support

    • 1 mb FRAM backup memory for unexpected power interruptions

    • 2 x Serial port with 120Ω termination resistor that one supports the CAN 2.0B protocol and offers a programmable bit rate of up to 1 Mb/sec

    • Embedded browser and for rapid Web App development

    • Supports Linux Yocto and Android

    Learn More

  • TPC-107W

    [Yocto/Android] 7" Touch Panel Computer with ARM Cortex™-A53 Processor

    • arm SystemReady IR certified

    • NXP® ARM® Cortex™-A53 i.MX 8M Mini quad-core processor

    • 7" 16:9 LCD with multi-touch P-CAP and true-flat IP66-rated front panel

    • Up to 4 GB DDR4 RAM and 16 GB eMMC storage onboard

    • 2 x 10/100/1000 Mbps LANs with optional IEEE 802.3at/af PoE-PD module support

    • 1 mb FRAM backup memory for unexpected power interruptions

    • 2 x Serial port with 120Ω termination resistor that one supports the CAN 2.0B protocol and offers a programmable bit rate of up to 1 Mb/sec

    • Embedded browser and for rapid Web App development

    • Supports Linux Yocto and Android

    Learn More ➔

  • TPC-31T

    [WinCE] 3.5" QVGA TFT LED LCD TI Cortex-A8 Touch Panel Computer

    • TI Cortex-A8 processor on board

    • 3.5" QVGA TFT LED LCD

    • Super slim and compact design with plastic housing

    • Fanless cooling system

    • IP65 compliant front panel

    • Built-in micro SD card with Windows® CE OS

    • 1 x SD card slot

    • Automatic data flow control RS-485

    • Supports 1Mbit FRAM for data back-up

    Learn More ➔

  • TPC-61T

    [WinCE] 5.7" QVGA TFT LED LCD TI Cortex-A8 Touch Panel Computer

    • TI Cortex-A8 processor on board

    • 5.7" QVGA TFT LED LCD

    • Super slim and compact design with plastic housing

    • Fanless cooling system

    • IP65 compliant front panel

    • Built-in micro SD card with Windows® CE OS

    • 1 x SD card slot

    • Automatic data flow control RS-485

    • Supports 1Mbit FRAM for data back-up

    Learn More ➔

Power-Energy Control Series

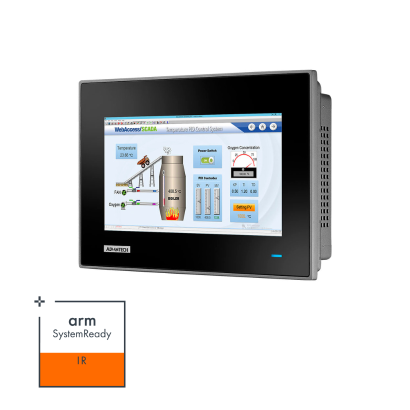

  • TPC-107WX

    [Yocto/Android] 7"High Brightness Touch Panel Computer with ARM Cortex™-A53 Processor

    • arm SystemReady IR certified

    • NXP® ARM® Cortex™-A53 i.MX 8M Mini quad-core processor

    • 7", 10.1" 16:9 High brightness LCD with multi-touch P-CAP and true-flat IP66-rated front panel

    • Supports Linux Yocto 4.0

    • Wide operating temperature range (-30~70°C/ -22~158°F

    Learn More ➔

  • TPC-110WX

    [Yocto/Android] 10.1" High Brightness Touch Panel Computer with ARM Cortex™-A53 Processor

    • arm SystemReady IR certified

    • NXP® ARM® Cortex™-A53 i.MX 8M Mini quad-core processor

    • 10.1" 16:9 High brightness LCD with multi-touch P-CAP and true-flat IP66-rated front panel

    • Supports Linux Yocto 4.0

    • Wide operating temperature range (-30~70°C/ -22~158°F

    Learn More ➔
