Advantech’s UNO-100/300 series are modular edge controllers powered by the latest high-performance Intel® processors. Aimed at factory applications such as real-time monitoring, data management, and remote control, UNO-100/300 edge controllers feature a rugged design, wide temperature range, and shock/vibration tolerance to support operation in harsh industrial environments. The modularized form factor allows these controllers to be flexibly configured with diverse interfaces for integrating optional expansion, such as PCIe for high-density I/O, PCI for motion cards, and iDoor for fieldbus modules. This customizable functionality streamlines deployment and maintenance while ensuring cost-effective upgrades, making UNO-100/300 series edge controllers future-proof solutions ideal for realizing intelligent factory operations.
Feature Highlights
-
Supports -20 ~ 50 °C/ -4 ~ 122 °F with 0.7m/s airflow and wide-temperature (-40 ~ 85 °C/ -40 ~ 185 °F) peripherals, e.g., SSDs, wireless modules
-
Embedded with a Trusted Platform Module (TPM) 2.0 that provides hardware-based security for data transfers and operations
-
Supports up to 3 x PCIe/PCI expansion slots (1 x PCIe x16, 2 x PCI) to enable the integration of modular peripherals and add-on cards, such as GPU, DAQ, motion-control, and vision frame grabber cards
-
Provides 1 x iDoor module to be installed on the PCIe slots, offering expandable wireless connectivity for remote communications
-
Equipped with iBMC technology to support out-of-band management for remote system recovery
-
ntegrated with WISE-DeviceOn software to enable remote device management and upgrade from a centralized platform
Products:
4 Total Items
-

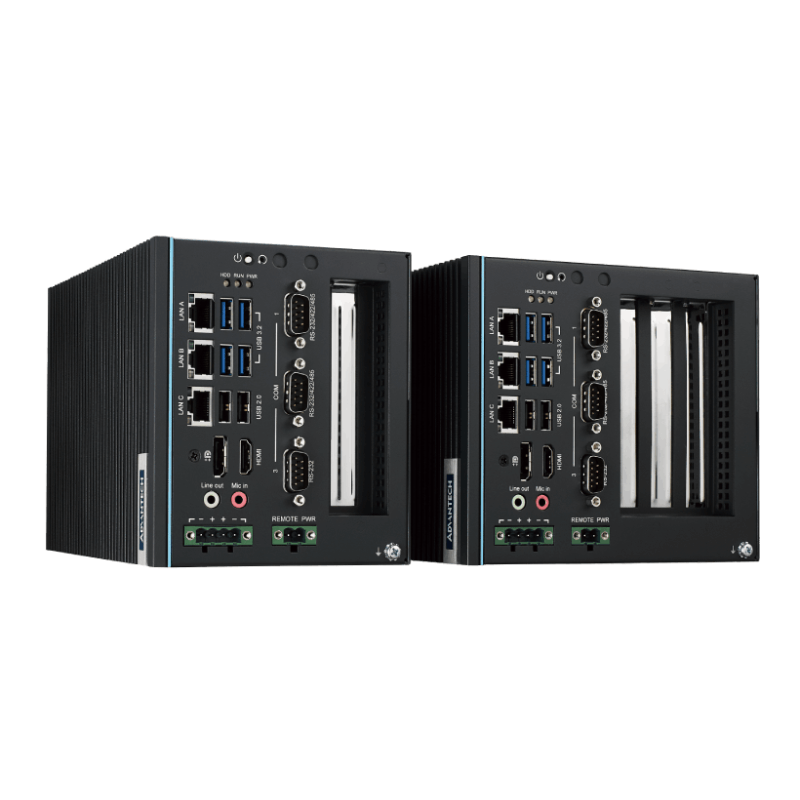

UNO-348
Expandable Embedded Box IPC with 10th Gen Intel® CPU
Intel® 10th Gen socket type processor with DDR4 memory
Scalable CPU, RAM selection
Compact, rugged and fanless design for harsh embedded environment
Flexible expansion with up to 3 x PCIe/PCI slots, 1 x M.2 (B-key), 1 x mPCIe & 2 x 2.5" SSD
Optional iDoor expansion
Remote out-of-band (OOB) power management with Advantech’s iBMC technology
Built-in TPM2.0 for hardware-based security
-
UNO-3272G
Expandable Embedded Box IPC with Intel® Celeron® J1900
Intel® Celeron® J1900 2.0GHz processor with 4GB DDR3L memory
3 x USB2.0, 1 x USB3.0, 2 x RS232/422/485, 2 x RS232
2 x 10/100/1000BASE-T Ethernet
VGA, HDMI support 2 x independent displays
Optional Digital I/O support for sensing and controlling
Dedicated TPM2.0 microcontroller designed for hardware security
Flexible system I/O expansion by iDOOR technology
Support diverse fieldbus protocol by iDOOR technology
Dual Power input for power redundancy
-

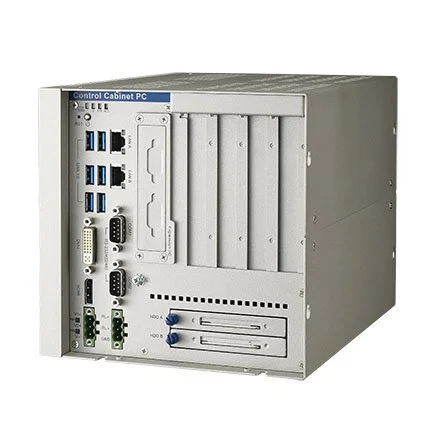

UNO-3285G
Intel® Core™ i Automation Computer with 4 PCI(e) Expansion Slots
Intel® 6th Gen Core™ i7-6822EQ Quad Core Processors with 8GB DDR4 Memory
2 x GbE, 6 x USB 3.0, 2 x RS-232/422/485, 2 x RS-232 (pin header), 1 x DVI-I, 1 x HDMI
2 x PCIe x8, 2 x PCI, 2 x mPCIe (2 x full), 1x CFast, slot, 1 x mSATA slot (optional)
Dual Hot-Swappable storage with thumb screw support for RAID 0/1
Supports Fieldbus Protocol by iDoor Technology
Dual power input for power redundancy
Front LED indicator design for monitoring system status
-

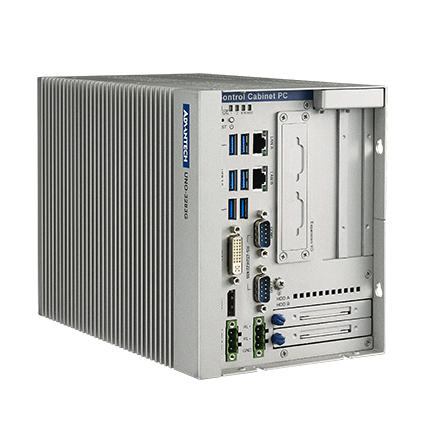

UNO-3283G/3285G
Intel® Core™ i Automation Computer with 2 PCI(e) Expansion Slots
6th Generation IntelR Quad Core Processors with 8GB DDR4 Memory
2 x GbE, 6 x USB 3.0, 2 x RS-232/422/485, 2 x RS-232 (pin header), 1 x DVI-I, 1 x HDMI
1 x PCIex16, 1x PCI, 2 x mPCIe (2 x full), 1x CFast slot, 1 x mSATA slot (optional)
Thumb screw for easy maintenance
Hot-Swappable HDD/SSD support for RAID 0/1
Easily exchangeable RTC battery
Supports Fieldbus Protocol by iDoor Technology
Chassis Grounding Protection
LAN Redundancy (Teaming)
