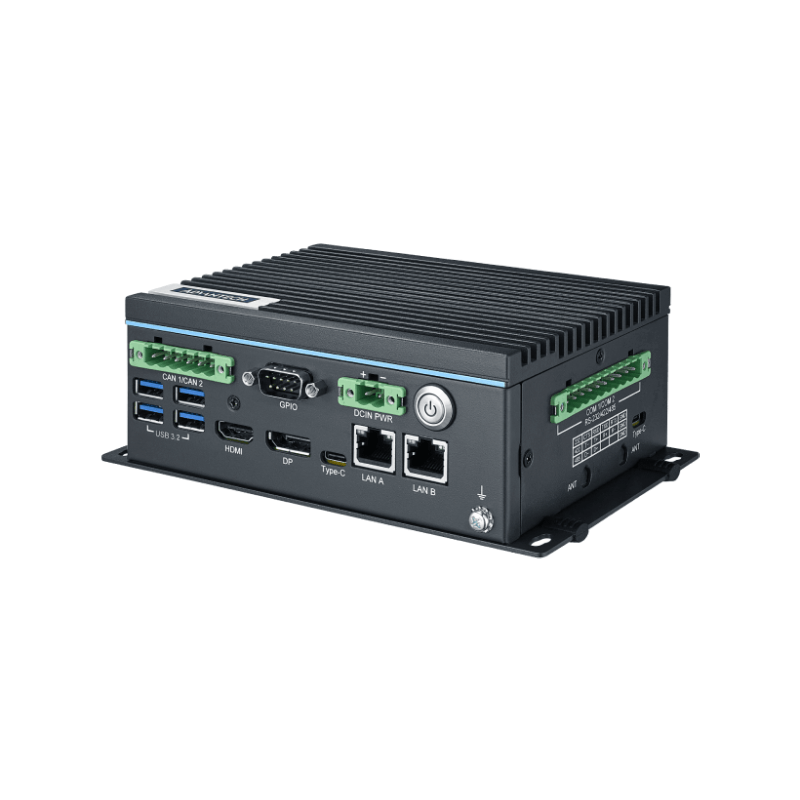

Industrial IoT Edge Gateway

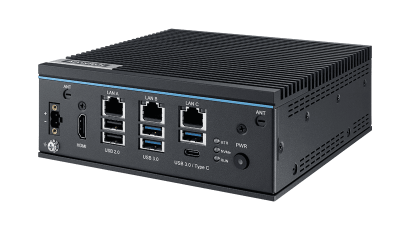

Edge AI Compact Box PC with Intel® Core™ Ultra Processor (Series 3)

• Intel® Core™ Ultra series 3 processors (code name: Panther Lake H) with 25W and 45W TDP support

• Integrated AI acceleration providing up to 180 TOPS total AI performance (120 GPU + 50 NPU + 10 CPU)

• Xe3 GPU architecture providing up to 2× the graphics performance compared to Arrow Lake-H

• Dual-channel DDR5 SO-DIMM memory supporting up to 128GB (64GB per channel)

• M.2 E-Key, B-Key, M-Key (supports NVMe) expansion for storage, LTE/5G, and Wi-Fi

• Built-in 1000Mbps & 2500Mbps LAN ports with TCC and TSN support

• Modular I/O board design offering dual LAN or isolated DIO/CANBUS/COM

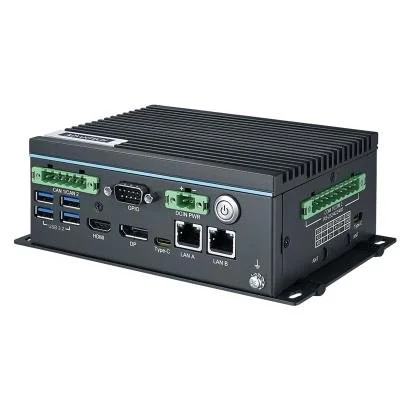

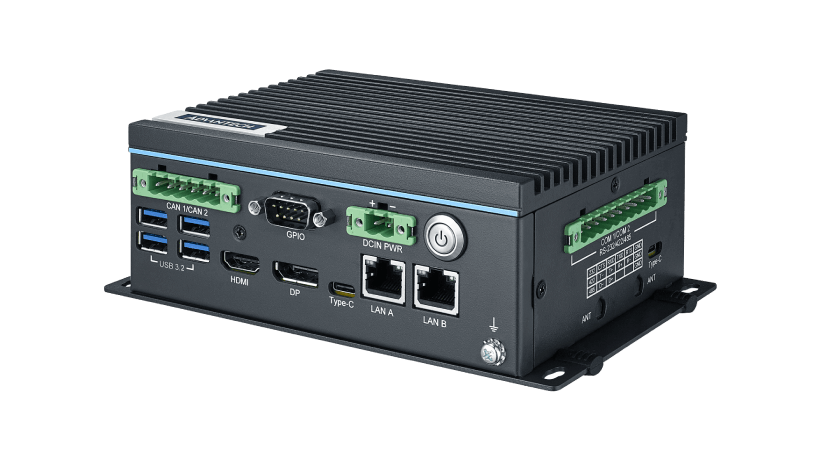

Compact IoT Edge Computer with Intel® 12th Gen. Core™ i Processor

• 12th Gen Intel® Core™ i Processor up to 10 Cores

• Dual Channel DDR5-4800 up to 64GB

• M.2 E-Key, B-Key, M-Key (support NVMe) expansion for storage/wireless

• Equipped with CANBus for reliable communication

• DC-in terminal block for wiring flexibility

• Supports multiple displays for ThinManager solution

• Supports software APIs, WISE DeviceOn, WISE Edge365

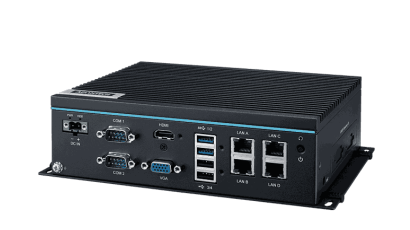

Intel® Processor N97 IoT Edge Computer with 4x LAN, 6x COM, 4x USB, 1x HDMI, and 1x VGA.

• Intel® Processor N97

• Flexible iDoor expansion design with sufficient IO port

• 4 x GbE, 2 x USB3.2, 2 x USB2.0, 2 x RS232/422/485, 4 x RS485, 1 x HDMI, 1 x VGA, 2 x GPIO

• Compact size with fanless design

• Optional 4G/GPS/GPRS/Wi-Fi communication

• Terminal block for wiring capability

• Optimized mechanical design for easier RAM swapping

• Support Win11 IoT and Ubuntu 22.04

Compact IoT Edge Computer with Intel® Core™ i CPU

• 8th generation Intel® Core™ i processor

• 2 x GbE, 4 x USB3.2, 2 x RS-232/422/485, 1 x HDMI, 1 x DP, 1 x GPIO (8 bit)

• Compact, fanless design

• Rubber stopper for stand mount and optional kit for DIN-rail mounting

• Threaded DC jack for reliable power supply

• Optimized mechanical design for easy RAM swapping

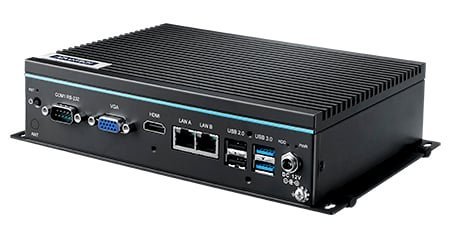

IoT Edge Computer with Intel® Celeron® J3455

• Intel® Celeron® J3455 processor

• Robust design with high stability

• 2 x GbE, 2 x USB3.0, 2 x USB2.0, 4 x RS232, 2 x RS485, 1 x HDMI, 1 x VGA

• Compact size with fanless design

• Rubber stopper design for stand mount and optional kit for DIN-rail mount

• Threaded DC Jack design for more steady power supply

• Optimized mechanical design for easier RAM swapping

Industrial Raspberry Pi 4 HAT Gateway Kit

• UNO-220 industrial-grade chassis transforms RPi 4 into a ruggedized gateway for shopfloor environments

• Industrial-grade power and I/O gateway kit installed with Raspbian OS provides RPi 4 -ready solutions for rapid prototyping

• An power and industrial I/O board for RS-232/485 and GPIO extension

• Amazon AWS IoT Greengrass certified

FreeScale i.MX 6 DualLite Industrial Protocol Gateway

• Freescale i.MX 6 Dual Lite A9 1GHz

• Support MQTT, LWM2M client for cloud communication

• Embedded with Microsoft Azure certified security chip

• Support Micro SD card & on-line firmware update

• Support DI wet contact & dry contact by switch

• Support Node ID by software

• Support data logger on Micro SD card

• Operation System: Yocto 2.1/ Ubuntu 16.04

• Operation Temperature: -20~55°C
