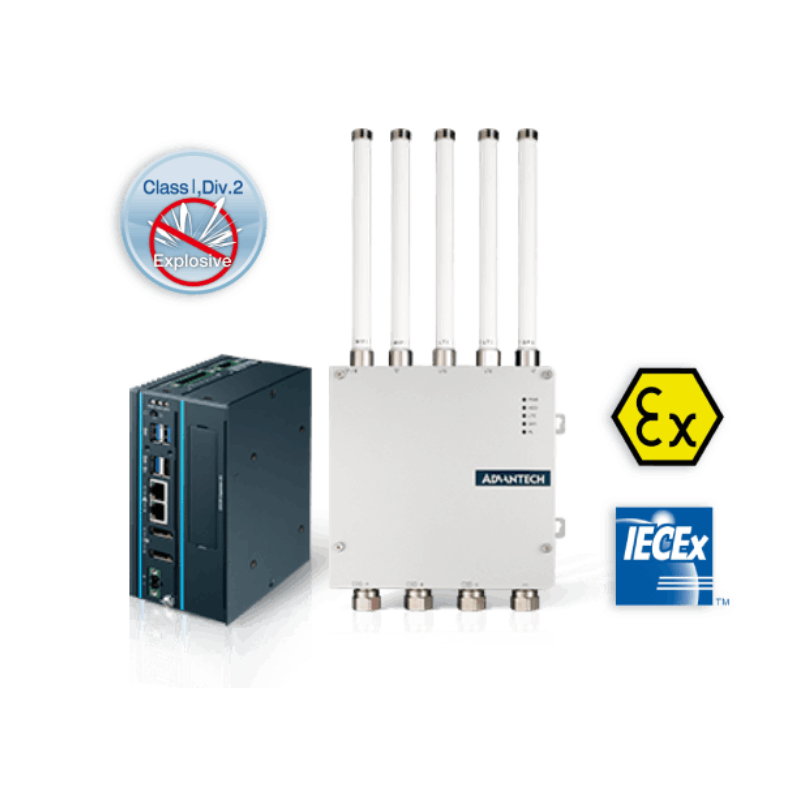

Explosion-Protected Computer

$0.00

Advantech provides ruggedized gateways with C1D2, ATEX, and IECEx certifications, ensuring safe operation for hazardous

Model:

Advantech provides ruggedized gateways with C1D2, ATEX, and IECEx certifications, ensuring safe operation for hazardous

As industries advances, hazardous working environments are facing increasing challenges with safety requirements. Therefore, the industrial IoT devices must not only be stringent, but also secure, scalable and reliable. Advantech’s UNO-410 and UNO-430 EXP are industrial-grade data gateways with UL listed C1D2, ATEX, and IECEx certification, making them ideal for applications in the oil & gas, mining, food & beverage, and chemicals & pharmaceuticals industries.

Feature Highlights

    • C1D2,ATEX, and IECEx certification for explosion tolerance

    • Built-in TPM 2.0 for hardware-based security

    • Wide operating temperature and power input range

    • UNO-410 supports an mPCIe slot for Wi-Fi module and a M.2 3042 B key socket for LTE module.

    • UNO-430 EXP supports M.2 E-key and B-key sockets to provide Wi-Fi, 5G/LTE, and GPS capabilities.

    • UNO-410 is equipped with an optimized Din-rail kit, enabling easy installation in cabinet.

    • UNO-430 EXP adopts a front door and cable gland design for easy a

Products:

3 Total Items

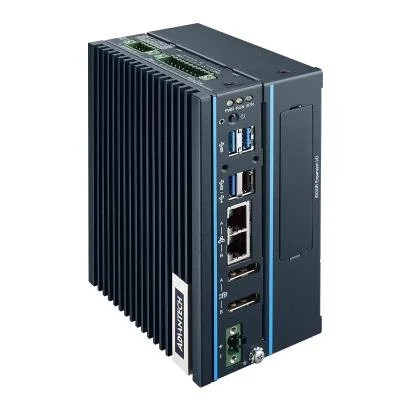

  • UNO-410

    Explosion-Protected DIN-rail Gateway with Intel® Atom® E3940, C1D2, ATEX/IECEx Certification

    • Explosion protection with UL listed Class 1, Division 2 /ATEX Zone 2/ IECEx Zone 2 certification

    • Port isolation for 8 x DI, 8 x DO, 2 x COM

    • Dual storage with M.2 2242 SATA SSD and 2.5” HDD/SSD

    • Onboard TPM 2.0 provides hardware-based security

    • Supports M.2 3042/3052 module

    • Microsoft Azure IoT Edge and Amazon AWS IoT Greengrass certified

    Learn More ➔

  • UNO-430 EXP

    IP66-Rated Waterproof Outdoor Gateway with C1D2, ATEX, IECEx Certification

    • Intel® Atom™ E3950 quad-core processor with 8GB of DDR3L memory

    • IP66 rating for protection from water and dust ingress

    • Wide operating temperature range (-40 ~ 70 °C/-40 ~ 158 °F)

    • Built-in TPM 2.0 for hardware-based security

    • Reserve M.2 3042/3052 B Key, M.2 2230 E Key for Wifi, LTE & GPS expansion

    • Easy maintenance and installation with front door and cable gland design

    • C1D2, ATEX, and IECEx certification for explosion tolerance

    • Microsoft Azure IoT Edge and Amazon AWS IoT Greengrass certified

    Learn More ➔

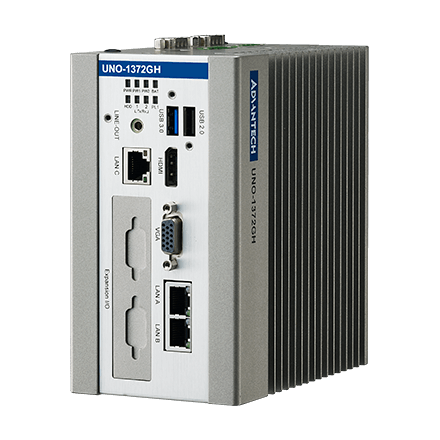

  • UNO-1372GH

    Explosion-Proof DIN-Rail Gateway with Intel® Atom® E3845

    • UL listed for Hazardous Locations: Class I, Division 2

    • Intel® Atom E3845 1.91GHz processor with 4GB DDR3L memory

    • Dual power inputs

    • Digital I/O with isolation protection for sensing and controlling

    • Amazon AWS IoT Greengrass certified

    Learn More ➔
