PC-based Motion Controllers

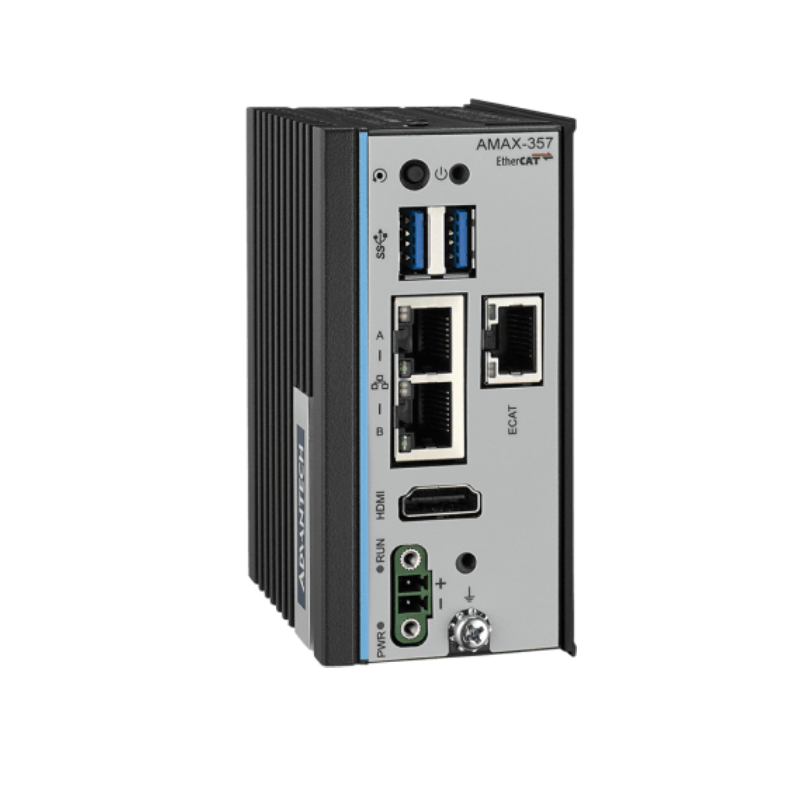

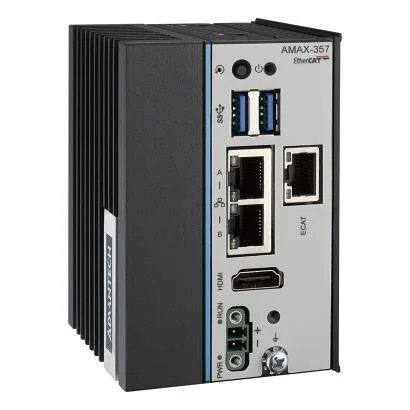

Ultra Compact PC-based EtherCAT Controller with Intel Atom Processor, 64GB eMMC, 2 x LAN, 2 x USB and Slice IO expansion

• Up to 32-axis EtherCAT PC-based motion controller

• Intel® Atom® quad-core x6413E processor

• 4 GB DDR4 onboard memory

• 64GB eMMC on board storage

• 2 x GbE LAN, 2 x USB, 1 x HDMI, 1 x EtherCAT

• Full-size mPCIE/mSATA for flexible expansion

• Built-in TPM2.0 for hardware-based security

• Supports PTP, linear and circle interpolation, Path table

• Supports C/C++, VS.Net, LabVIEW programming languages
