DAQ Cards

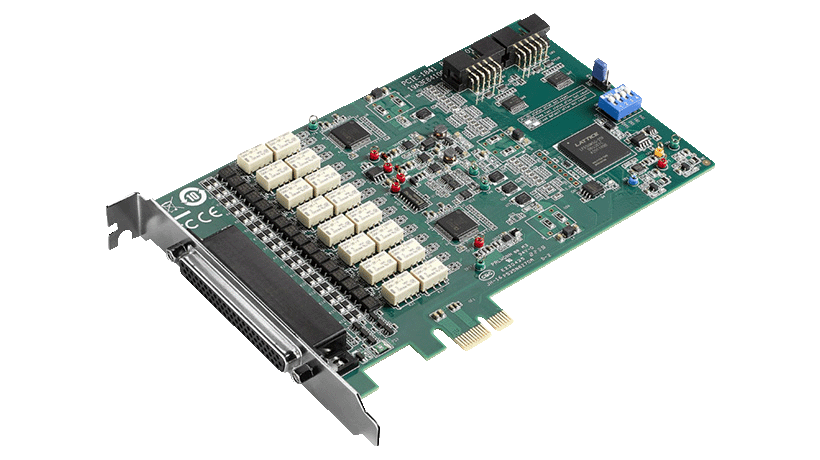

250 kS/s, 16-bit, 8-ch, Simultaneous Sampling, Multifunction PCIE Card

• 8 differential simultaneous sampling analog inputs, up to 250 kS/s, 16-bit resolution

• 2 analog outputs, up to 3 MS/s, 16-bit resolution

• Full auto-calibration

• 2 analog triggers and 2 digital triggers for AI/O

• 32 programmable DI/Os with interrupt functions

• Four 32-bit programmable counters/ timers/ encoders

• Board ID switch

• Support for Microsoft Windows 10/11

500 kS/s, 12-bit, 16-ch Multifunction PCIE Card

• 16 analog inputs, up to 800 KS/s, 12-bit resolution

• 2 analog outputs, up to 500 KS/s, 12-bit resolution

• Support for digital trigger and analog trigger

• 24 programmable digital I/O lines

• Two 32-bit programmable counter/timers

• Onboard FIFO memory ( 4 K samples)

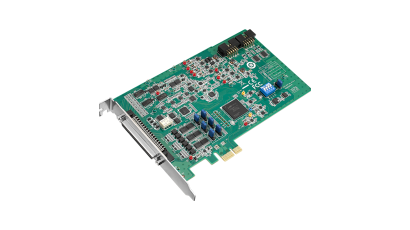

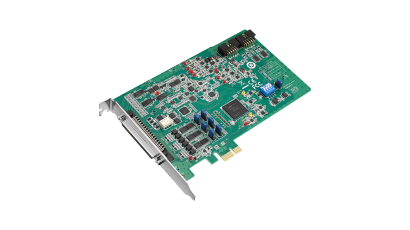

1 MS/s, 16-bit, 16-ch Multifunction PCIE Card

• 16 analog inputs, up to 1 MS/s, 16-bit resolution

• 2 analog outputs up to 3 MS/s, 16-bit resolution

• Support Analog and Digital Trigger for AI/O

• Support Waveform generation for AO

• 24 programmable digital I/O lines

• Two 32-bit programmable counter/timers

• Onboard FIFO memory (8k samples)

• Support for Microsoft Windows 10/11 and Linux

5 MS/s, 16-bit, 16-ch Multifunction PCIE Card

• 16 analog inputs, up to 5 MS/s, 16-bit resolution

• 2 analog outputs up to 3 MS/s, 16-bit resolution

• Support Analog and Digital Trigger for AI/O

• Support Waveform generation for AO

• 24 programmable digital I/O lines

• Two 32-bit programmable counter/timers

• Onboard FIFO memory (8k samples)

• Support for Microsoft Windows 10/11 and Linux

250 kS/s, 16-bit, 8-ch Simultaneous Sampling, Multifunction PCI Card

• 8 differential analog inputs

• 8 A/D converters simultaneously sampling

• 16-bit A/D converter, with up to 250kHz sampling rate for each channel

• Programmable gain

• Multiple A/D triggering modes

• Onboard FIFO memory up to 8K Sample

• Programmable pacer/counter

• BoardID™ switch

• Universal PCI Bus (supports 3.3V or 5V PCI bus signals)

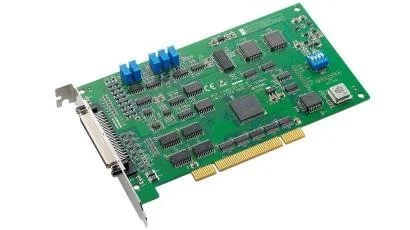

00 kS/s, 12-bit, 16-ch Universal Multifunction PCI Card

• 16-ch single-ended or 8-ch differential or a combination of analog input

• 12-bit A/D converter, with up to 100 kHz sampling rate

• Onboard programmable counter

• Two 12-bit analog output channels

• 16-ch digital input and 16-ch digital output

• Automatic channel/gain scanning

• Onboard FIFO memory (4,096 samples)

• Programmable gain

• BoardID™ switch

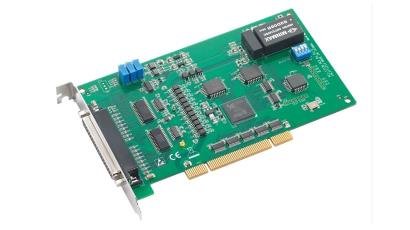

100 kS/s, 12-bit, 16-ch Universal Multifunction PCI Card

• 16-ch single-ended analog input

• Cost-effective

• 12-bit A/D converter, with up to 100 kHz sampling rate

• 16 single-ended analog inputs

• 12-bit A/D converter, with up to 100 kHz sampling rate

• Programmable gain

• 16 digital inputs and 16 digital outputs

• 16-ch digital input and 16-ch digital output

• Two 12-bit analog output channels

• Two 12-bit analog output channels

1 MS/s, 12-bit, 16-ch Multifunction PCI Card

• 16 single-ended or 8 differential or a combination of analog inputs

• 12-bit A/D converter, with up to 1 MHz sampling rate

• Two 12-bit analog output channels with continuous waveform output function

• 16-ch digital input and 16-ch digital output

• Three 16-bit programmable multifunction counter/timers on 10 MHz

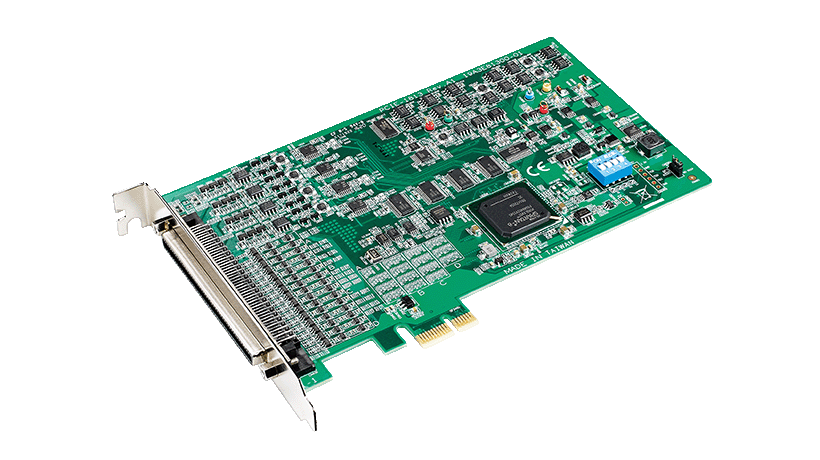

250 kS/s, 16-bit, 64-ch Analog Input PCIE Card

• 64-ch single-ended or 32-ch differential or a combination of analog input

• 16-bit A/D converter, with up to 250 kHz sampling rate

• Auto calibration

• Onboard FIFO memory (8,192 samples)

• PCIE-Bus mastering data transfer

• BoardID™ switch

1MS/s, 16-bit, 32-ch Analog Input PCIE Card

• 32-ch single-ended or 16-ch differential or a combination of analog input

• 16-bit A/D converter, with up to 1MHz sampling rate

• Multi-card synchronization

• Current measurement (0-20mA or 4-20mA)

• Support digital and analog triggers

• Auto calibration

128 kS/s, 24-bit, 8-ch PCIE Card for Sound and Vibration

• 8 simultaneously sampled analog inputs, up to 128 kS/s

• 24-bit resolution ADCs with -102 dB total harmonic distortion plus noise (THD+N)

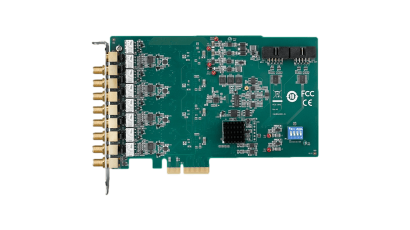

216 kS/s, 24-bit, 8/4-ch PCIE Card for Sound and Vibration

• 24-bit resolution ADCs with 115 dB dynamic range

• Wide input ranges from ±0.2 V to ±10 V

• Software selectable AC/DC coupling

• Software configurable 4 or 10 mA Integrated Electronic Piezoelectric Excitation (IEPE)

• Built-in anti-aliasing filter

• 8 simultaneously sampled analog inputs up to 216 kS/s

• Multiple card synchronization

• Full auto-calibration

125 MS/s, 16-bit, 4-ch Simultaneous Digitizer

• 4 simultaneous analog inputs, up to 125MHz, 16-bit resolution

• 500MHz Time Interleaved Sampling

• Non-stop data streaming capable

• 2 GB on-board memory

• 1M or 50 Ohm selectable input impedance

• On-Board tunable anti-aliasing filter

• AC/DC Coupling

16/8-ch, 18-bit, 1MS/s/ch Simultaneous Analog Input PCI Express DAQ Card

• 16/8-ch simultaneous sampling up to 1 MS/s

• 18-bit resolution

• Software selectable low-pass filter

• Wide input range up to 40 Vpp (±20 V range)

• Support both voltage and current measurement

• Multiple selectable trigger modes

8/4-ch, 14-bit, 10 MS/s per-channel simultaneous analog-input PCIe DAQ card

• 8 or 4 x Simultaneously Analog Inputs, up to 10 MS/s

• 14-bit resolution

• Supports digital and analog triggers

• Wide input range up to 20 Vpp (±10 V range)

• Onboard FIFO memory (65,536 samples)

8/4-ch, 14-bit, 20MS/s/ch Simultaneous Analog Input PCI Express DAQ Card

• 8 or 4 x Simultaneously Analog Inputs, up to 20 MS/s

• 14-bit resolution

• Supports digital and analog triggers

• Wide input range up to 20 Vpp (±10 V range)

• Onboard FIFO memory (65,536 samples)

100 kS/s, 12-bit, 32-ch Isolated Analog Input Universal PCI Card

• 2,500 VDC isolation protection

• 32-ch single-ended or 16-ch differential or a combination of analog input

• 12-bit resolution for A/D conversion

• Programmable gain for each input channel

• Software, internal or external pacer sampling modes supported

• Onboard FIFO memory: 4,096 samples;

• Universal PCI bus

• BoardID™ switch

10/30 MS/s, 12-bit, 4-ch Simultaneous Analog Input PCI Card

• 4 single-ended analog input channels

• 12-bit A/D converter, with up to 30 MHz sampling rate

• Multiple A/D triggering modes

• Onboard FIFO memory 32,768 samples

• 4 A/D converters simultaneously sampling

• Programmable gain

• Programmable pacer/counter

• BoardID™ switch

• Universal PCI Bus (supports 3.3 V or 5 V PCI bus signals)

12-bit, 4-ch Isolated Analog Output Universal PCI Card

• 4 12-bit D/A output channels

• Multiple output ranges

• 2,500 VDC isolation between the outputs and the PCI bus

• Keeps the output settings and values after system reset

• One DB37 connector for easy wiring

• Universal PCI and BoardID™ switch

12-bit, 4-ch Analog Output PCI Card with 16-ch Digital I/O

• 10 MHz maximum digital update rate

• Auto calibration function

• Four analog output channels with 8,192 samples FIFO buffer

• A 12-bit DAC is equipped for each of analog output channels

• Real-time waveform output function with internal/external pacer

16-bit, 8-ch Analog Output PCI Card with 16-ch Digital I/O

• Auto calibration function

• A 16-bit DAC is equipped for each analog output channel

• Synchronized output function

• Output values retained after system hot reset

• 2-port (16-channel) user-defined digital input/output

• BoardID™ switch

14-bit, 32-ch Isolated Analog Output Universal PCI Card

• 32 high-density analog output channels

• Flexible Output Range: +/-10 V, 0 ~ 20 mA and 4 ~ 20 mA

• Synchronized output function

• Keeps output values after system hot reset

• BoardID™ switch

14-bit, 12-ch Analog Output Universal PCI Card with 32-ch Digital I/O

• 12 independent analog output channels

• Fuse on each channel

• Universal PCI for 5 V and 3.3 V support

• BoardID™ switch

• Synchronized output function

• 32/16 high-density analog output channels

• Flexible Output Range: ±10 V, 0 ~ 20 mA and 4 ~ 20 mA

• Synchronized output function

• Keep output values when hot system reset

• High ESD protection (2,000 VDC)

• Board ID switch

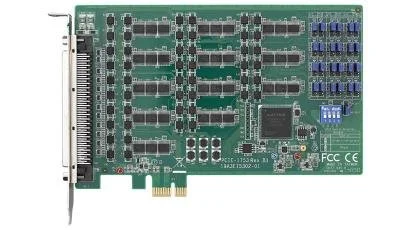

96-ch Digital I/O PCIE Card

• Fully compatible with PCI-1753

• Up to 96 TTL digital I/O lines

• Emulates mode 0 of 8255 PPI

• Supports both dry and wet contact

• Interrupt handling capability

• Output status read-back

• Supports input data pattern match and change of state functions

• Keep I/O settings and output status after hot reset

• Buffered circuits for higher driving capacity than the 8255

• High-density 100-pin SCSI connector

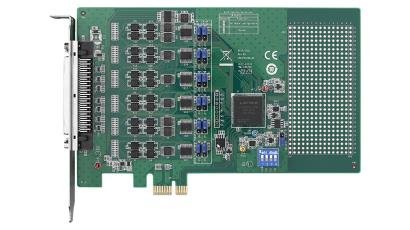

48-ch Digital I/O and 3-ch Counter PCIE Card

• 48 TTL digital I/O lines

• Emulates mode 0 of 8255 PPI (every port with nibble)

• Supports both dry and wet contact

• Interrupt handling capability

• Timer/Counter interrupt capability

• Buffered circuits for higher driving capacity than the 8255

• Keeps the I/O port setting and DO state after system reset

• BoardID switch

• Pattern match interrupt function for DI

• Change of state interrupt function for DI

• Programmable digital filter function for DI

24-ch Digital I/O Universal PCI Card

• ISA-Compatible with PCL-724

• 24 TTL digital I/O channels

• Emulates mode 0 of 8255 PPI

• Interrupt handling

• Opto-22 compatible 50-pin connectors

• Output status readback

• PCI universal card

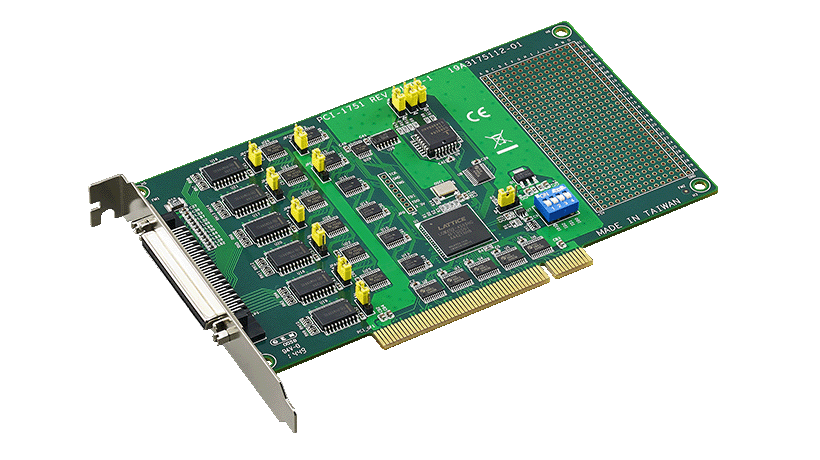

48-ch Digital I/O and 3-ch Counter PCI Card

• 48 TTL digital I/O lines

• Emulates mode 0 of 8255 PPI

• Supports both dry and wet contact

• Interrupt handling capability

• Timer/Counter interrupt capability

• Buffered circuits for higher driving capacity than the 8255

• Keeps the I/O port setting and DO state after system reset

• BoardID switch

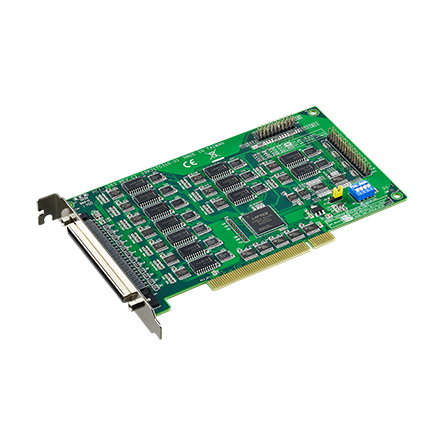

96-ch Digital I/O PCI Card

• Emulates mode 0 of 8255 PPI

• Buffered circuits for higher driving capacity than 8255

• Multiple-source interrupt handling

• Interrupt output pin for simultaneously triggering external devices with the interrupt

• Output status read-back

• “Pattern match” and “Change of state” interrupt functions for critical I/O monitoring

• Keeps I/O setting and digital output values when hot system reset

• Supports dry contact and wet contact

• High-density 100-pin SCSI connector
