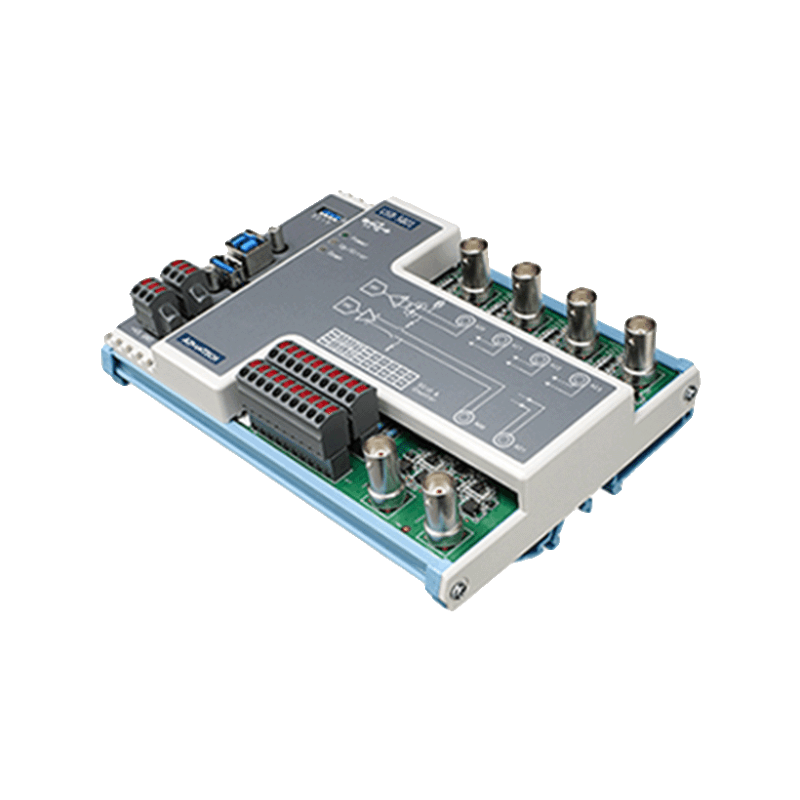

USB Modules

$0.00

The USB DAQ series include various USB I/O modules supporting multifunction industrial USB. They are easy to deploy and install.

The USB DAQ series include various USB I/O modules supporting multifunction industrial USB. They are easy to deploy and install.

Products

  • USB-5820

    4-ch, 16-bit, 200 kS/s Isolated Analog Output USB 3.0 I/O Module

    • USB 3.0 SuperSpeed

    • Daisy chainable by built-in USB hub

    • 4 x 16-bit analog output channels with 2,500 V DC isolation

    • Multiple voltage and current output ranges

    • Removable European-type connector

    • Supported operating systems: Windows 10/11

    Learn More

  • USB-5817

    8-ch, 16-bit, 200 kS/s Isolated Analog Input USB 3.0 I/O Module

    • USB 3.0 SuperSpeed

    • Daisy chainable by built-in USB hub

    • 8 x 16-bit analog input channels with 2,500 VDC isolation

    • Support voltage and current measurement

    • Wide common-mode voltage range (±275 V)

    • Removable European-type connector

    • Supported operating systems: Windows 10/11

    Learn More

  • USB-5801

    4-ch, 24-bit, 192 kS/s USB 3.0 I/O Module for Sound and Vibration (with AO and Tachometer)

    • USB 3.0 SuperSpeed and daisy chainable by built-in USB hub

    • 4x simultaneously sampled analog inputs, up to 192 kS/s

    • 24-bit resolution ADCs with -94 dB total harmonic distortion plus noise (THD+N)

    • Built-in anti-aliasing filter

    • 2 mA integrated electronic piezoelectric (IEPE) excitation currents

    • 2 analog outputs with update rate up to 192 kS/s

    • 24-bit resolution DACs with -90 dB total harmonic distortion plus noise (THD+N)

    Learn more

  • USB-5830

    16-ch Isolated DI and 16-ch Isolated DO USB 3.0 I/O Module

    • USB 3.0 SuperSpeed

    • Daisy chainable by built in USB hub

    • 16-ch digital input and 16-ch digital output with 2,500 VDC isolation

    • Wide input voltage range (10 ~ 30 VDC)

    • Wide output voltage range (5 ~ 40 VDC) and high output current (350 mA/ch)

    • Quick removable European type connector

    • LED indicators for I/O status

    • Supported operating systems: Windows 10/11

    Learn More

  • USB-5860

    8-ch Isolated Digital Input and 8-ch Relay USB 3.0 I/O Module

    • USB 3.0 SuperSpeed

    • Daisy chainable by built in USB hub

    • 8-ch Isolated Digital Input and 8-ch Form A-type Relay Output

    • Wide input voltage range (10 ~ 30 VDC)

    • High-voltage isolation on input channel (2,500 VDC )

    • Quick removable European type connector

    • LED indicators for I/O status

    • Supported operating systems: Windows 10/11

    Learn More

  • USB-5855

    32-ch Isolated Digital Input and 16-ch PhotoMOS Relay USB 3.0 I/O Module

    • USB 3.0 SuperSpeed

    • Daisy chainable by built in USB hub

    • 32-ch digital input and 16-ch PhotoMOS Relay output (Form A) isolation

    • Wide input voltage range (10 ~ 30 VDC)

    • 1500 VDC optical isolation for relay outputs

    • Quick removable European type connector

    • LED indicators for I/O status

    • Supported operating systems: Windows 10/11

    Learn more

  • USB-5856

    32-ch Isolated DI and 32-ch Isolated DO USB 3.0 I/O Module

    • USB 3.0 SuperSpeed

    • Daisy chainable by built in USB hub

    • 32-ch digital input and 32-ch digital output with 2,500 VDC isolation

    • Wide input voltage range (10 ~ 30 VDC)

    • Wide output voltage range (5 ~ 40 VDC) and high output current (350 mA/ch)

    • Quick removable European type connector

    • LED indicators for I/O status

    • Supported operating systems: Windows 10/11

    Learn More

  • USB-5862

    16-ch Isolated Digital Input and 16-ch Relay USB 3.0 I/O Module

    • USB 3.0 SuperSpeed

    • Daisy chainable by built in USB hub

    • 16-ch Isolated Digital Input and 16-ch Form A-type Relay Output

    • Wide input voltage range (10 ~ 30 VDC)

    • High-voltage isolation on input channel (2,500 VDC )

    • Quick removable European type connector

    • LED indicators for I/O status

    • Supported operating systems: Windows 10/11

    Learn More ➔

  • USB-4702

    10 kS/s, 12-bit, 8-ch Multifunction USB Module

    • Supports USB 2.0

    • Bus-powered

    • 8 x analog input channels

    • 12-bit resolution AI

    • Sampling rates up to 10 kS/s

    • 8-ch DI/8-ch DO, 2-ch AO and one 32-bit counter

    • Portable

    Learn More ➔

  • USB-4704

    48 kS/s, 14-bit, 8-ch Multifunction USB Module

    • Supports USB 2.0

    • Bus-powered

    • 8 x analog input channels

    • 14-bit resolution AI

    • Sampling rate up to 48 kS/s

    • 8-ch DI/8-ch DO, 2-ch AO and one 32-bit counter

    • Portable

    Click Here

  • USB-4711A

    150 kS/s, 12-bit, 16-ch Multifunction USB Module

    • Supports USB 3.0 SuperSpeed

    • Bus-powered

    • 16 analog input channels

    • 12-bit resolution AI

    • Sampling rate up to 150 kS/s

    • 8-ch DI/8-ch DO, 2-ch AO and one 32-bit counter

    • Detachable screw terminal on modules

    • Suitable for DIN-rail mounting

    • One lockable USB cable for secure connection included

    • Portable

    Learn more

  • USB-4716

    200kS/s, 16-bit, 8-ch Analog Input iDAQ Module

    • Hot-swappable in iDAQ system

    • Detachable Euro-type spring terminal connectors

    • 8 x 16-bit analog input channels with 600VRMS isolation

    • Supports voltage and current measurements

    • Wide common-mode voltage range (±275 V)

    Learn More
