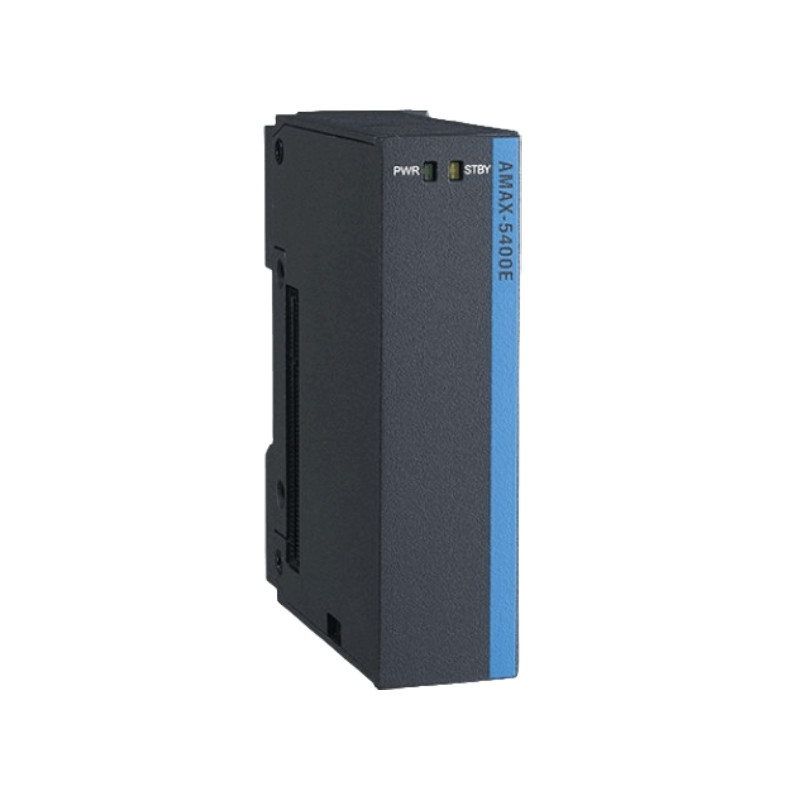

PCIe Expansion Modules

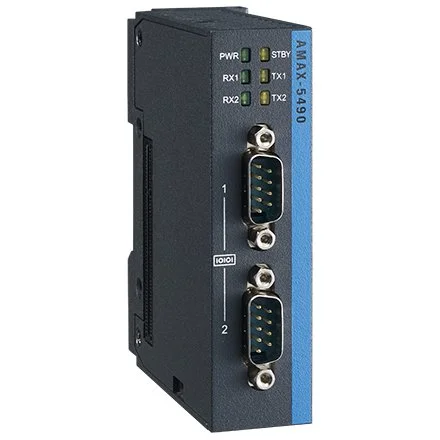

2-port Isolated RS-232/422/485 Communication Module

• Data Bits: 5, 6, 7, 8

• Stop Bits: 1, 1.5, 2

• Parity: None, even, odd

• Baud Rate: 50 bps ~ 230.4 kbps

• Data Signals: RS-232: TxD, RxD, GND RS-422: Tx+, Tx-, Rx+, RXRS-485: Data+, Data-

• FIFO: 256 bytes

• Flow Control: Xon/Xoff

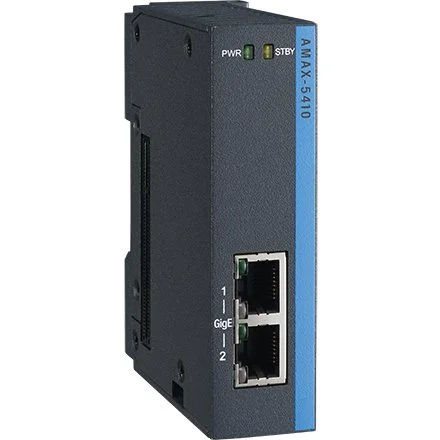

2-port GigE Vision Frame Grabber Module

• Compatibility: IEEE 802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.3af

• Speed: 10/100/1000 Mbps

• No. of Ports: 2 Gigabit Ethernet Media Access Control (MAC) andphysical layer (PHY) ports

• Input Voltage: 24 VDC direct from WISE-5000 CPU module

2-Port CAN Module

• 2-ch CAN port

• Support CAN2.0B, compatible with CAN2.0A

• Data Transfer Rate: 1Mbits/s

• Optical isolation protection of 2,500 VDC ensures system reliability
