Features & Benefits
RS-485 Serial I/O: ADAM-4000/4100 Series
The ADAM-4000/ 4100 series featuring rugged industrial-grade cases are specially designed for reliable operation in harsh environments. Built-in microprocessors independently provide intelligent signal conditioning, analog I/O, digital I/O, data display, and RS-485 communication through Modbus RTU protocols.
-
Standardized Protocol
One of the most widely used standard communication protocols for eAutomation development
Centralized Control
Universal remote I/O modules to operate the system via Modbus
Provides the sample code and command for users to program
Easy Integration
-
Noise Protection
Data accuracy assured by enhanced ESD/ EFT/ Surge Protection
Module Stability Ensured
Once a problem is detected, the Watchdog Timer automatically recovers the system
Save on Maintenance Costs
The Watchdog Timer enhances system stability and reduces maintenance costs
-
Friendly L-Shaped Cable Design*
Users can optionally order the 90 degree micro USB to a Type-A USB cable with a locking mechanism to provide a stable connection
Micro USB Interface*
The new ADAM-4100 series can be powered and transmit data via micro USB interface
* Only featured on the B version of ADAM-4100 series selected models
Analog I/O Modules
Remote RS-485 I/O modules using Modbus RTU protocol offer complete analog I/O for current, voltage, thermocouple or RTD.
-
![]()
ADAM-4015
6RTD Modbus RS-485 Remote I/O
6ch RTD
Protocols:Modbus RTU,ASCII
Watch dog to recover the system
3000VDC isolation protection
Wiring burned-out detection function
-
![]()

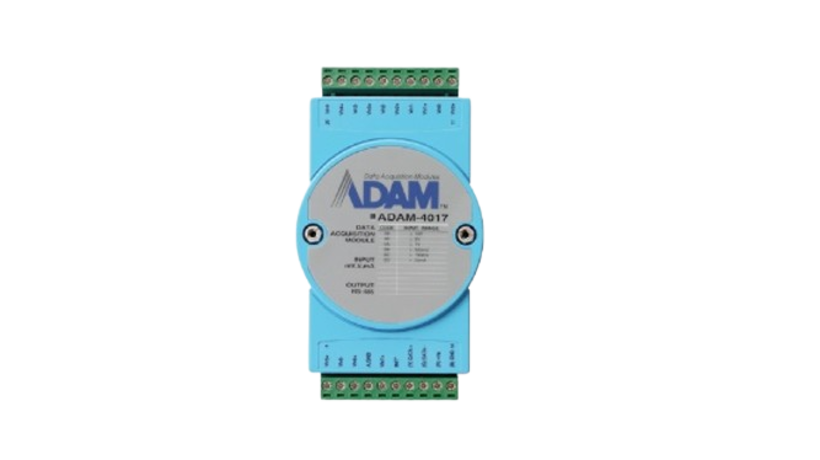

ADAM-4017
8AI RS-485 Remote I/O
8ch analog input(voltage or current)
Protocols:ASCII
Watchdog timer to recover the system
-
![]()

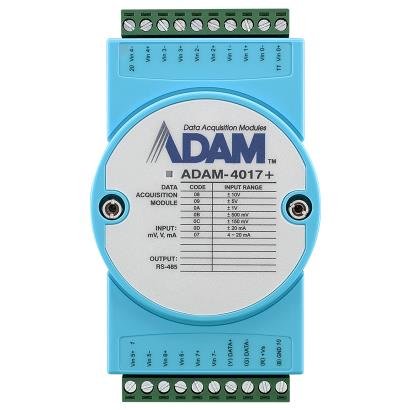

ADAM-4017+
8AI Modbus RS-485 Remote I/O
8ch analog input(current or voltage)
Protocols:Modbus RTU,ASCII
Watchdog timer to recover the system
3000VDC isolation protection
-
![]()

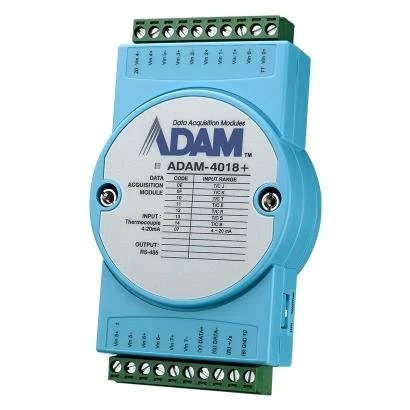

ADAM-4018+
8Thermocouple Modbus RS-485 Remote I/O
8ch thermocouple(can be set to current)
Protocols:Modbus RTU,ASCII
Watchdog timer to recover the system
3000VDC isolation protection
Wiring burned-out detection function
-
![]()

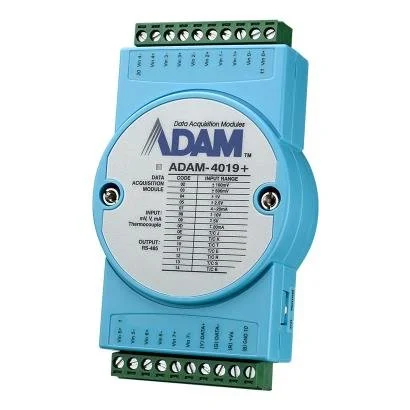

ADAM-4019+
8Thermocouple Modbus RS-485 Remote I/O
8ch thermocouple(can be set to voltage or current)
Protocols:Modbus RTU,ASCII
Watchdog timer to recover the system
3000VDC isolation protection
Wiring burned-out detection function
-
![]()
ADAM-4021
1AO RS-485 Modbus Remote I/O
1ch analog output
Protocols:ASCII / Modbus
Watchdog timer to recover the system
3000VDC isolation protection
-
![]()
ADAM-4024
4AO/4DI Modbus RS-485 Remote I/O
4ch analog output/4ch digital input
Protocols:Modbus RTU,ASCII
Watchdog timer to recover the system
3000VDC isolation protection
Digital I/O Modules
Remote RS-485 data acquisition modules offer digital, counter or relay I/O with Modbus RTU for industrial facility monitoring and management.
-
![]()

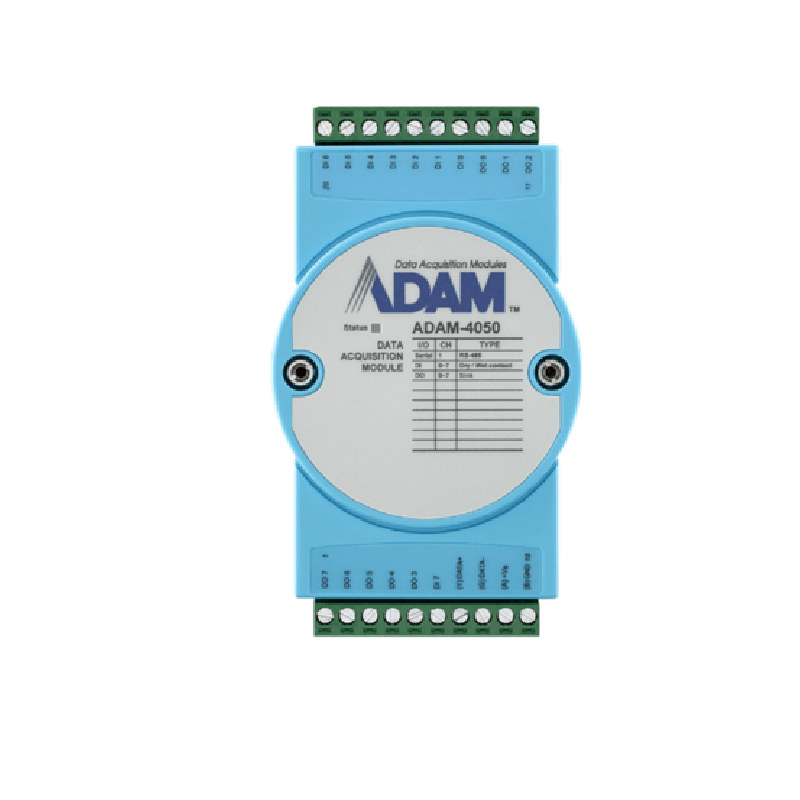

ADAM-4050
8DI/8DO RS-485 Remote I/O
8ch digital input/8ch digital output
Protocols: Modbus RTU,ASCII
Watchdog timer to recover the system
-
![]()
ADAM-4051
16DI Modbus RS-485 Remote I/O
16ch digital input
Protocols:Modbus RTU,ASCII
Watchdog timer to recover the system
2500VDC isolation protection
-
![]()
ADAM-4053
16DI RS-485 Remote I/O
16ch digital input
Protocols: Modbus RTU,ASCII
Watchdog timer to recover the system
-
![]()
ADAM-4055
8DI/8DO Modbus RS-485 Remote I/O
8ch digital input/8ch digital output
Protocols:Modbus RTU,ASCII
Watchdog timer to recover the system
2500VDC isolation protection
-
![]()
ADAM-4056SO
12DO(Source type) Modbus RS-485 Remote I/O
12ch source type digital output
Protocols:Modbus RTU,ASCII
Watchdog timer to recover the system
5000VDC isolation protection
-
![]()
ADAM-4060
4Relay RS-485 Remote I/O
4ch relay
Protocols:Modbus RTU,ASCII
Watchdog timer to recover the system
-
![]()

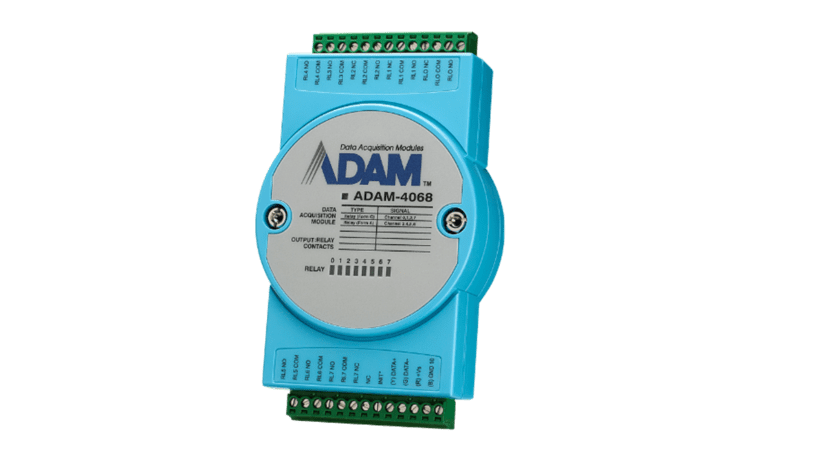

ADAM-4068
8Relay Modbus RS-485 Remote I/O
8ch relay
Protocols:Modbus RTU,ASCII
Watchdog timer to recover the system
