Modular I/O System: ADAM-5000 Series

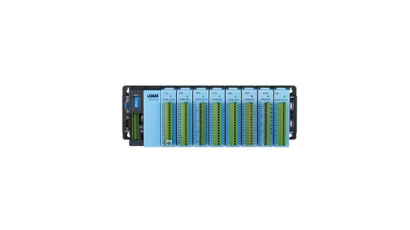

8-slot Edge Intelligent DAQ controller

(Controllers)

• Linux C programming based on Linux operating system

• Built-in real-time clock and watchdog timer

• 1 micro SD slot expansion for data storage

• 4 serial communication ports onboard

• 2 Ethernet Ports

• 4 or 8 I/O slot expansion

4-slot Distributed DA&C System for RS-485

• RS-485 communication for easy installation and networking

• 4 slots for up to 64 points data monitoring card control in one module

• Supports ADAM ASCII protocol or Modbus®/RTU protocol

• Supports Modbus/RTU protocol with user-defined Modbus address

• Extensive software support, includes windows DLL drivers, OCX drivers, OPC server and popular HMI/SCADA software drivers

• Seamlessly integrated with easy-to-use ADAMView data acquisition software

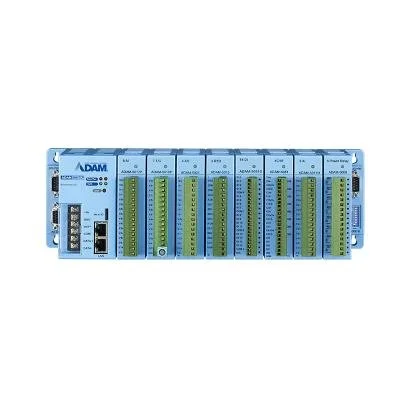

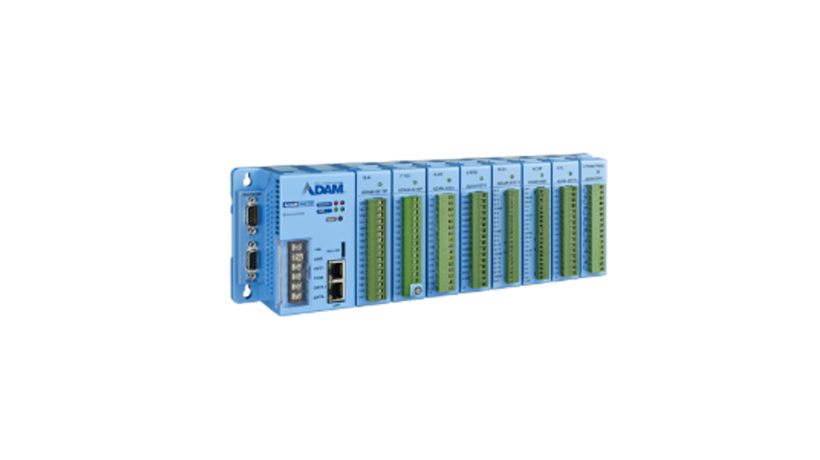

8-slot Distributed DA&C System for Ethernet

• 10/100Base-T auto-negotiation high-speed communication port

• Supports Modbus/TCP for easy integration

• Supports UDP event handling function

• 1500 VDC isolation for Ethernet communication

• Provides C and .NET class library to develop applications

• Built-in watchdog timer for system auto-reset

• Windows utility- I/O modules configuration and calibration- Network auto searching- Data stream setting- Current status monitoring and alarm trigger

• 8 I/O slots for up to 128 points data monitoring and control

8-slot Distributed DA&C System for RS-485

• RS-485 communication for easy installation and networking

• 8 slots for up to 128 points data monitoring card control in one module

• Supports ADAM ASCII protocol or Modbus®/RTU protocol

• Supports Modbus/RTU protocol with user-defined Modbus address

• Extensive software support, includes windows DLL drivers, OCX drivers, OPC server and popular HMI/SCADA software drivers

• Seamlessly integrated with easy-to-use ADAMView data acquisition software

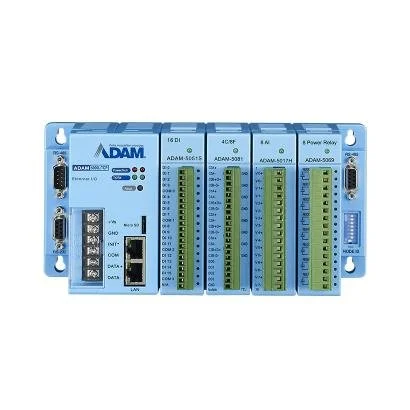

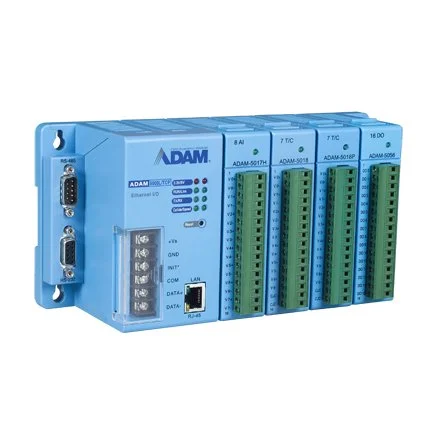

4-slot Distributed DA&C System for Ethernet

• 10/100Base-T auto-negotiation high-speed communication port

• Supports Modbus/TCP for easy integration

• Supports UDP event handling function

• 1500 VDC isolation for Ethernet communication

• Provides C and .NET class library to develop applications

• Built-in watchdog timer for system auto-reset

• Windows utility- I/O modules configuration and calibration- Network auto searching- Data stream setting- Current status monitoring and alarm trigger

• 4 I/O slots for up to 64 points data monitoring and control

• Allows concurrent access for 8 host PCs

3-ch RTD Input Module

• Accuracy: ±0.1% or better

• Effective resolution: 16-bit

• Input connections: 2, 3 or 4 wire

• Sampling rate: 10 samples/sec. (total)

• Isolation voltage: 3000 VDC

• Input type: PT100 or Ni RTD

• Channels: 3

8-ch Analog Input Module

• Accuracy: ±0.1% or better

• Effective resolution: 16-bit

• Input range: ±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V; ±20 mA

• Sampling rate: 10 samples/sec. (total)

• Isolation voltage: 3000 VDC

• Fault and overvoltage protection: withstands overvoltage up to ±35 V

• lnput type: mV, V, mA

• Channels: 8 differential

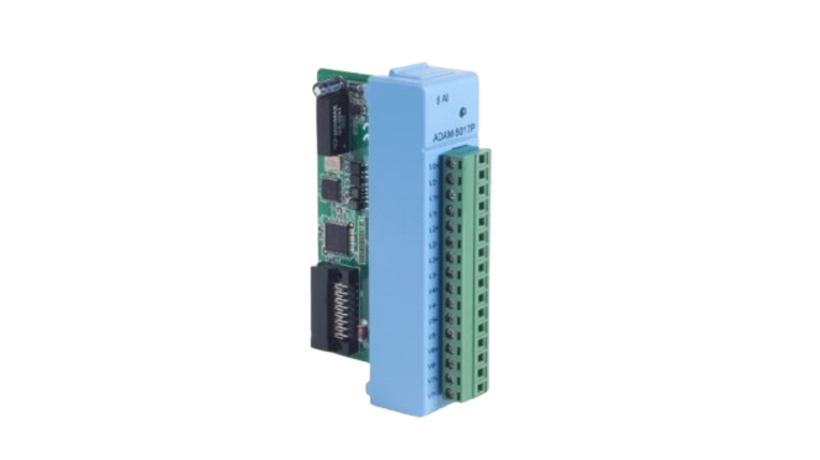

8-ch Analog Input Module with Independent Input Range

• Accuracy: Voltage mode : ±0.1% or better, Current mode : ±0.2% or better

• High Common Mode: 200 VDC

• Over Voltage Protection: ±60 VDC

• Built-in TVS/ESD Protection

• Isolation Voltage: 3,000 VDC

• CMR @ 50/60 Hz: 92 dB min.

• Channels: 8 differential and independent configuration channels

• Input Impedance: Voltage: 800kΩ, Current: 120Ω (Build-in 120Ω. register for Current Input) for Curren

7-Ch Thermocouple Input Module

• Accuracy Bandwidth: ±0.1% or better, 13.1 Hz @ 50 Hz, 15.72 Hz @ 60 Hz

• Sampling Rate: 10 samples/sec. (total)

• High Common Mode: 2000 VDC

• Isolation Voltage: 3,000 VDC

• Fault and Overvoltage Protection: Withstands over voltage up to ±35 V

• CMR @ 50/60 Hz: 92 dB min

• Input Impedance: 20 MΩ. (Build-in 120 Ω Register for Current Input)

• Built-in TVS/ESD Protection

• Filter function: Yes

7-ch Thermocouple Input Module with Independent Input Range

• Accuracy Bandwidth: ±0.1% or better, 13.1 Hz @ 50 Hz, 15.72 Hz @ 60 Hz

• Sampling Rate: 10 samples/sec. (total)

• High Common Mode: 2000 VDC

• Isolation Voltage: 3,000 VDC

• Fault and Overvoltage Protection: Withstands over voltage up to ±35 V

• CMR @ 50/60 Hz: 92 dB min

• Input Impedance: 20 MΩ. (Build-in 120 Ω Register for Current Input)

• Built-in TVS/ESD Protection

• Filter function: Yes

• Channels: 7 differential with Independent Input Range

4-ch Analog Output Module

• Accuracy: ±0.1% of FSR for current output

• Effective resolution: 12-bit

• Isolation voltage: 3000 VDC

• Output range: 0 ~ 20 mA, 4 ~ 20 mA, 0 ~10 V

• Resolution: ±0.015% of FSR

• Channels: 4

• Output type: mA, V
