Serial/USB Converters/Repeaters: ADAM-4500 series

RS-422/485 Repeater

• Transmission speed up to 115.2 kbps with auto Baud-rate Detection

• Networking up to 1200 meters (4000 feet)

• Power Input 10 ~ 48 VDC with power reversal protection

• Operating Temperature -40~85°C (-40~185° F)

• Switch for RS-422/485 Setting and terminal resistance setting

Isolated USB to RS-232 Converter

• Power from the USB port

• Hot swap function supported

• Isolation protection 3000 VDC provided

• Automatic RS-485 data flow control

• Transmission speed up to 115.2 kbps

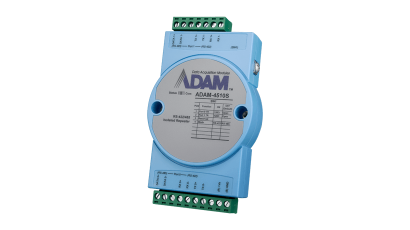

Isolated Wide Operation Temperature RS-422/485 Repeater

• Wide Operating Temperature: -40 ~ 85° C

• Automatic RS-485 data flow control

• 3000 VDC isolation protection

• Surge protection RS-485 data line

• LED indicator to monitor status

Multi-mode Fiber Optic to RS-232/422/485 Converter

• 2 x ST fiber connector

• Operation mode: Point-to-Point, and Ring (half-duplex)

• Half/Full-duplex, bidirectional transmission mode

• Automatic RS-485 data flow control

• LED indicator to monitor status

Isolated RS-422/485 Repeater

• Transmission speed up to 115.2 kbps with auto Baud-rate Detection

• Networking up to 1200 meters (4000 feet)

• 3000 VDC Isolation

• Power Input 10 ~ 48 VDC with power reversal protection

• Operating Temperature -40~85°C (-40~185° F)

• Auto-detection on baud rate / data format

• Switch for RS-422/485 Setting and terminal resistance setting

Single-mode Fiber Optic to RS-232/422/485 Converter

• 1 x SC fiber connector

• Operation mode: Point-to-Point,Redundant and Ring(half-duplex)

• Half/Full-duplex, bidirectional transmission mode

• Automatic RS-485 data flow control

• LED indicator to monitor status

Isolated USB to RS-232/422/485 Converter

• Power from the USB port

• Hot swap function supported

• Isolation protection 3000 VDC provided

• Automatic RS-485 data flow control

• Transmission speed up to 115.2 kbps

Isolated RS-232 to RS-422/485 Converter

• Automatic RS-485 data flow control

• 3000 VDC isolation protection

• Surge protection RS-485 data line

• Transmission speed up to 115.2 Kbps

• LED indicator to monitor status
