USB Converters and Hubs

ULI-314DC - USB to RS-232/422/485 (DB9 Male) Industrial Isolated Converter, 4 Port

• USB to RS-R32/422/485 Converter

• UL Class 1/Division 2

• 2 kV Isolation

• Level 4 ESD Protection (15 kV Air, 8 kV Contact)

• 921.6 Kbps Serial Data Rate

• - 40 to + 80 °C Operating Temperature

• DIN and Flat Panel Mounting Options

• TB and Power Jack 10-30 VDC Power Inputs

• High Retention USB Connector, Plug in Serial Terminal Block

ULI-414CI - Industrial USB 2.0 Hub, 4 Port, Industrial, Isolated, High Retention Connectors

• Expands one USB port to 4 USB ports (USB 2.0)

• 4 kV Isolation & ESD Level 4 (contact 8 kV, air 15 kV) Performance Criteria B Protection

• Data rate: 12 Mbps at high speed

• Wide operating temperature: -40 to +80 °C

• Rugged metal case - desk, DIN rail or panel mount (brackets included)

• High retention USB port connectors

• FCC, CE, UL, KCC, EMC heavy industrial

• USB cable included, 1.8 m

• External power source required (not included, sold separately)

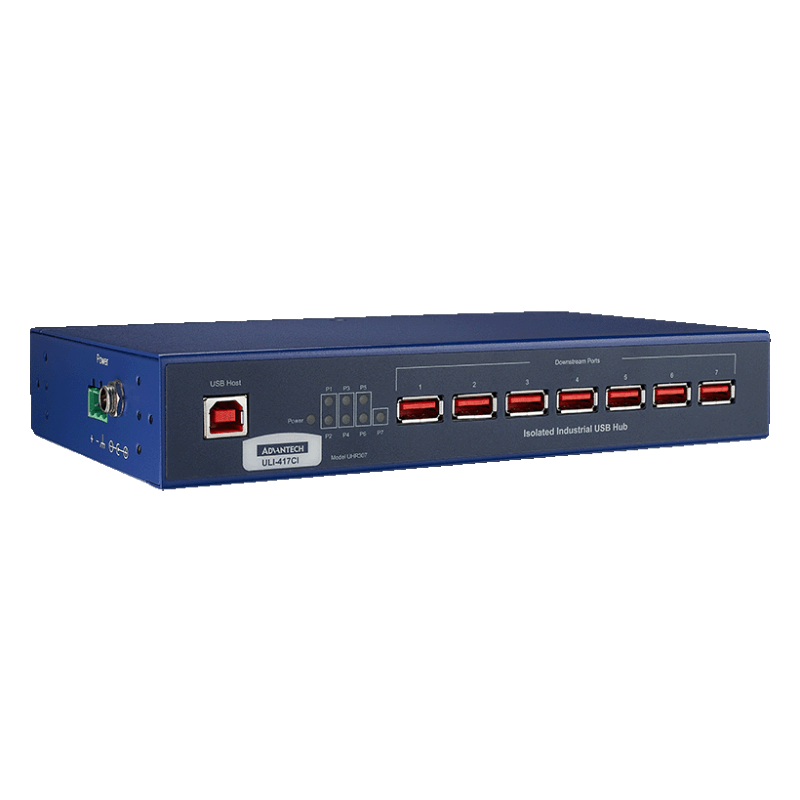

ULI-417CI - Industrial USB 2.0 Hub, 7 Port, Isolated, High Retention Connectors

• Expands one USB port to 7 USB ports (USB 2.0)

• 4 kV isolation & ESD Level 4 (contact 8 kV, air 15 kV) Performance Criteria B Protection

• Data rate: 12 Mbps at high speed

• Wide operating temperature: -40 to +80 °C

• Rugged metal case - desk, DIN rail or panel mount (brackets included)

• FCC, CE, UL, EMC heavy industrial

• High retention USB port connectors

• USB cable included, 1.8 m

• External power source required (not included, sold separately)

ULI-417I - Industrial USB 2.0 Hub, 7 Ports with High Retention Connectors

• Expands one USB port to 7 USB ports (USB 2.0)

• ESD Level 4 (contact 8 kV, air 15 kV) Performance Criteria B

• Data rate: 480 Mbps full speed

• Wide operating temperature: -40 to +80 °C

• Rugged metal case - desk, DIN rail or panel mount (brackets included)

• FCC, CE, UL, EMC heavy industrial

• High retention USB port connectors

• USB cable included, 1.8 m (6 ft)

• External power source required (not included, sold separately)

ULI-414I - Industrial USB 2.0 Hub, 4 Ports with High Retention Connectors

• Expands one USB port to 4 USB ports (USB 2.0)

• ESD Level 4 (contact 8 kV, air 15 kV) Performance Criteria B

• Data rate: 480 Mbps full speed

• Wide operating temperature: -40 to +80 °C

• Rugged metal case - desk, panel or DIN rail mount (brackets included)

• FCC, CE, UL, EMC heavy industrial

• High retention USB port connectors

• USB cable included, 1.8 m

• Bus power or external power (power supply not included, sold separately)

ULI-414HCL - 4-port Isolated USB 3.0 SuperSpeed Hub

• 2,500 VDC voltage isolation for upstream port

• 4 downstream USB 3.0 SuperSpeed ports

• Supplied by external 10 ~ 30 VDC power or by USB bus power

• ESD protection up to ±15 kV (level 4)

• LED indicators for power-on and speed of each downstream port
