Serial Converters and Repeaters

ULI-211CI -Triple Isolated RS-232/422/485 (Terminal Block) to Multi-mode Fiber Converter (ST Connectors) DIN Rail Mounted

• Converts serial data signals to multi-mode ST fiber optic

• 2 KV 3-way optical isolation (input/output/power); EMI/RFI protection

• Data rate: up to 115.2 kbps

• Wide operating temperature: -40 to +80 °C

• DIN mount, IP20 plastic case

• 10–48 VDC power source required (not included, sold separately)

• UL Class 1 / Division 2

ULI-232DC - 3-Way Isolated RS-232 (DB9 Male / Female) DIN Rail Repeater

• Extend and isolate RS-232 data another 15.2 m

• 2kV 3-way optical isolation

• Data rates up to 115.2 kbps

• -40 to +80 °C wide operating temperature

• DB9 M / DB9 F, IP30, DIN rail mount

• 10-48 Vdc power input (power supply required, not included, sold separately)

ULI-234TCI - 3-Way Isolated RS-422/485 Repeater, Industrial DIN Mount, Terminal Blocks

• Repeater extends signals an additional 1200 m

• 2 KV, 3-way optical isolation (input/output/power)

• Data rate: up to 115.2 kbps

• Wide temperature range: -40 to +80 °C

• DIN rail mount, IP30 case

• 10-48 Vdc input (power supply required, not included, sold separately)

• Allen-Bradley 1747-AIC (DH-485 network)

ULI-232DE - Heavy Industrial RS-232 (DB9 Male / Female) Isolated Repeater

• Extends RS-232 data signals

• 2kV, three-way isolation (input/output/power)

• Data rate: 1.2 to 115.2 kbps

• Wide operating temperature: -40 to +85 °C

• Rugged IP30 metal case (panel or DIN rail mount)

• 10-48 Vdc input power (power supply required, sold separately)

• IEC-61850-3, IEEE-1613, NEMA TS2, FCC, CE, NEMA TS2, 50G Shock, 4G Vibration

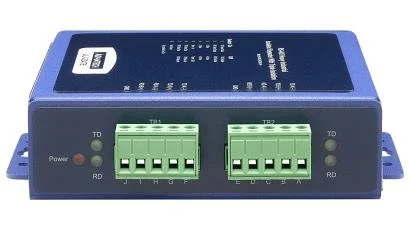

ULI-234TE - Heavy Industrial RS-422/485 (Terminal Block) Isolated Repeater

• RS-422/485 Repeator

• 2kV, 3-way isolation (input/output/power)

• Data rates:1.2 to 115.2 Kbps

• Wide operating temperature range: -40 to +85 °C

• IEC-61850-3, IEEE-1613, NEMA TS2, FCC, CE

• 10 to 48 VDC input power (power supply required, sold separately)

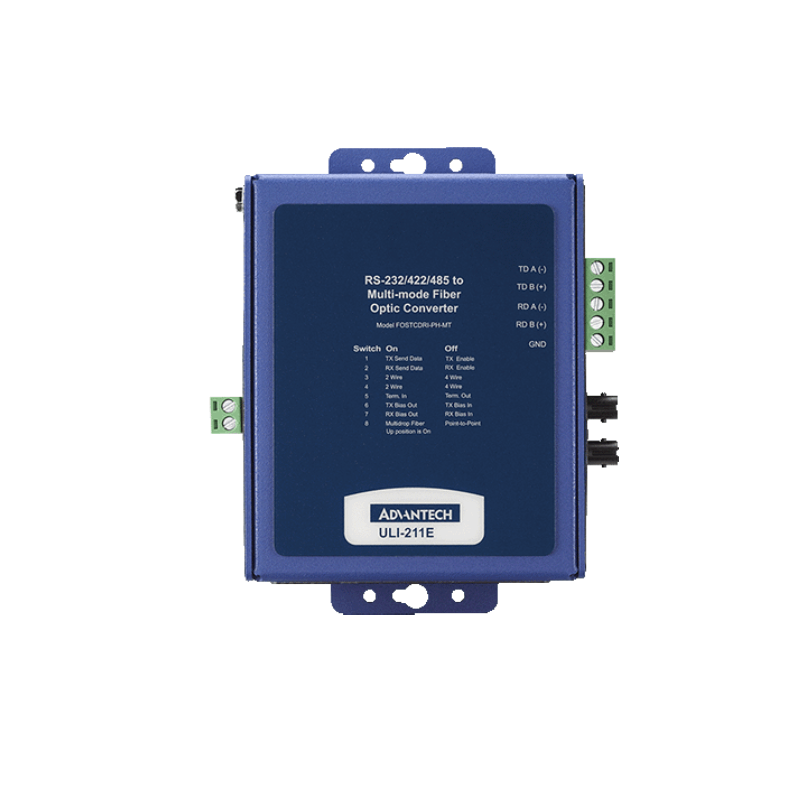

ULI-211E - Heavy Industrial RS-232/422/485 (Terminal Block) to Multimode Fiber (ST Connector). Panel Mount Metal Chassis

• Converts serial data signals to multi- or single-mode fiber

• 2 KV, 3-way isolation (input, output, power circuits)

• Data rate: 9.6 to 115.2 kbps (bit-wise enable)

• -40 to +85°C wide operating temperature

• IP30 metal panel mount case (DIN rail adaptable)

• FCC, CE, IEC-61850-3, IEEE 1613, UL C1/D2

• Note: 2 units required to extend data via fiber optic connection (see datasheet)

• 10-48 VDC power source required (not included, sold separately)

ULI-213E - Heavy Industrial RS-232/422/485 (Terminal Block) to Single Mode Fiber (SC Connector) Panel Mount Metal Chassis

• Converts serial data signals to multi- or single-mode fiber, SC connector

• 2 KV, 3-way isolation (input, output, power circuits)

• Data rate: 9.6 to 115.2 kbps (bit-wise enable)

• -40 to +85°C wide operating temperature

• IP30 metal panel mount case (DIN rail adaptable)

• FCC, CE, IEC-61850-3, IEEE 1613, UL C1/D2

• 10-48 VDC power source required (not included, sold separately)

• Note: 2 units required to extend data via fiber optic connection (see datasheet)

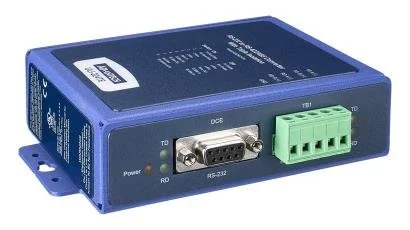

ULI-224TE - Heavy Industrial RS-232 (DB9 Female to RS-422/485 (Terminal Block) Converter, DIN Mount, Metal Chassis

• Converts RS-232 data signals to RS-422/RS-485

• Three-way 2 KV optical isolation (input, output, power)

• Wide operating temperature: -40 to +85 °C

• Modbus ASCII/RTU

• Rugged IP30 metal panel mount case, DB9 F / TB

• 10-48 Vdc input power (external power supply required, sold separately)

• UL C1/D2, IEEE-61850-3, IEEE-1613

Serial Converter, RS-232/422/485 TB to MM Fiber ST (Inverted), Ind. DIN, C1D2

• Converts serial data signals to multi-mode ST fiber optic

• Inverted fiber state - fiber light OFF in idle state

• 2 KV 3-way optical isolation (input/output/power); EMI/RFI protection

• Data rate: up to 115.2 kbps

• Wide operating temperature: -40 to +80 °C

• DIN mount, IP20 plastic case

• 10–48 VDC power source required (not included, sold separately)

• UL Class 1 / Division 2 rated
