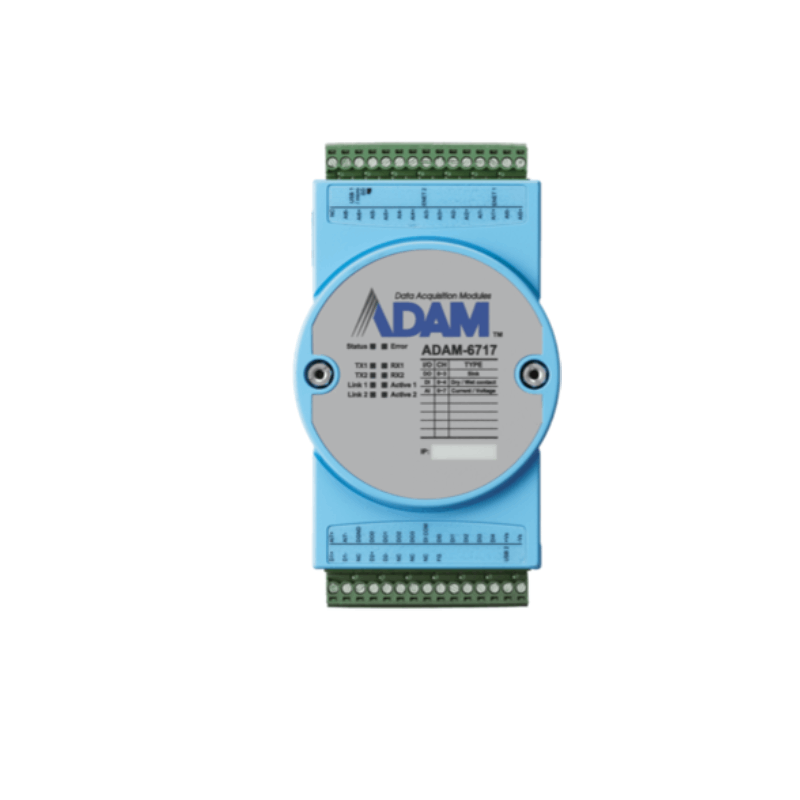

IoT I/O Gateways: ADAM-6700 Node-RED

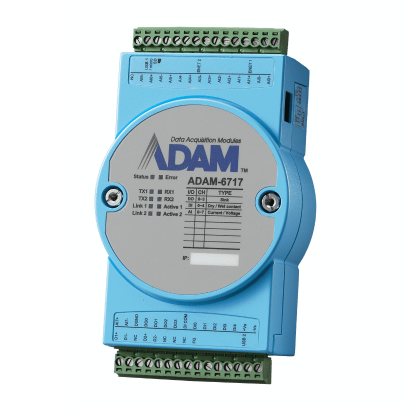

8AI/5DI/4DO Intelligent I/O Gateway

• Linux Open Platform

• 8ch analog input(current or voltage)/5ch digital input/4ch digital output

• Program by linux C API, Node-RED (graphic programming environment)

• Cloud/Database access ,edge data analysis and logic control, data visulization by dashboard

• Interfaces: RS-485x2, Ethernet port x 2 ,1 x USB Type-A 2.0, 1 x USB Micro-B 2.0

12DI/12DO Intelligent I/O Gateway

• Linux Open Platform

• 12ch digital input(counter)/12ch digital output(pulse output)

• Programming: linux C API, Node-RED (graphic programming environment)

• Cloud/Database access ,edge data analysis and logic control, data visualization by dashboard

• Interfaces: RS-485x2, Ethernet port x 2 ,1 x USB Type-A 2.0, 1 x USB Micro-B 2.0

USB to MiniPCIe Adaptor Module

• Enable more options through MiniPCIe modules

• Support Power Reversal Protection

• Wall-Mount and DIN-Rail mounting

• Connect with ADAM-6700 series via USB cable

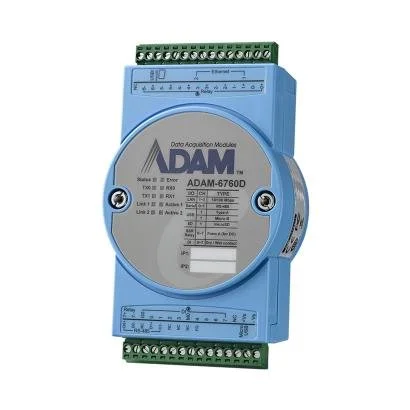

8SSR Relay/8 DI Intelligent I/O Gateway

• Linux open platform

• 8-channel SSR relay/ 8-channel digital input

• Programming: Linux C API, Node-RED (graphic programming environment)

• Cloud / database access, edge data analysis and logic control, and data visualization by dashboard

• Interfaces: RS-485x2, Ethernet port x 2 ,1 x USB Type-A 2.0, 1 x USB Micro-B 2.0
