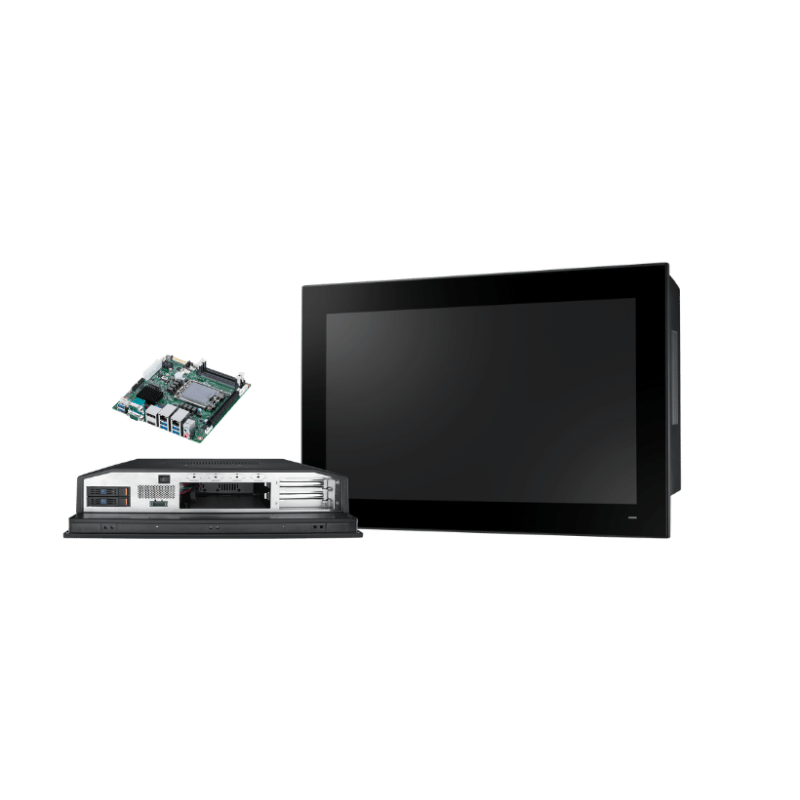

PPC-600 Series _ Scalable Computing

12.1" Configurable Panel PC Chassis for Selectable Mini-ITX Motherboards

• 12.1" true-flat panel PC with resistive touch

• Supports certified mini-ITX motherboards (up to 35W TDP processor)

• PCI or PCIe expansion slots

• Front-facing power status LED indicators

• IP66-rated front panel

15.6" Configurable Panel PC Chassis for Selectable Mini-ITX Motherboards

• 15.6" true-flat panel PC with multi-touch projected capacitive

• Supports certified mini-ITX motherboards (up to 65W TDP processor)

• PCI or PCIe expansion slots

• Front-facing power status LED indicators

• IP66-rated front panel

18.5" Configurable Panel PC Chassis for Selectable Mini-ITX Motherboards

• 18.5" true-flat panel PC with multi-touch projected capacitive

• Supports certified mini-ITX motherboards (up to 65W TDP processor)

• PCI or PCIe expansion slots

• Front-facing power status LED indicators

• IP66-rated front panel

• Support dual HDD drawer

21.5" Configurable Panel PC Chassis for Selectable Mini-ITX Motherboards

• 21.5" true-flat panel PC with multi-touch projected capacitive

• Supports certified mini-ITX motherboards (up to 65W TDP processor)

• PCI or PCIe expansion slots

• Front-facing power status LED indicators

• IP66-rated front panel

• Support dual HDD drawer

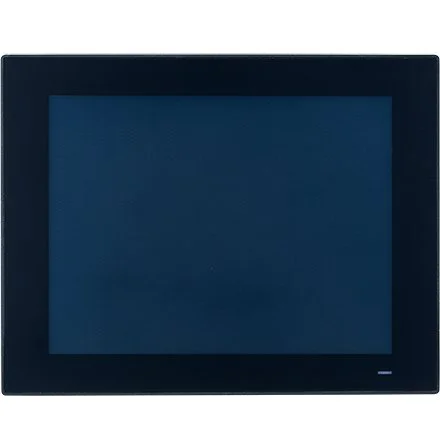

12.1" Panel PC with 8/9th Generation Intel® Core™ i/Celeron® Processor

• 12.1" TFT XGA LCD panel with resistive touch control

• 8/9th generation Intel® Core™ i/Celeron® processor (thermal power design: 35W)

• 2 x 260-pin SO-DIMM DDR4 2666 MHz (max. 32 GB)

• 1 x M.2 2230 (E key)

• 1 x mSATA bay (SATA SSD + mSATA support RAID 0&1)

• 1 x Optional TPM2.0 & 1 x Optional PCI/PCIe x4 expansion kit

• 1 x Isolated RS422/485 (terminal block)

• 1 x VGA and 1 x HDMI

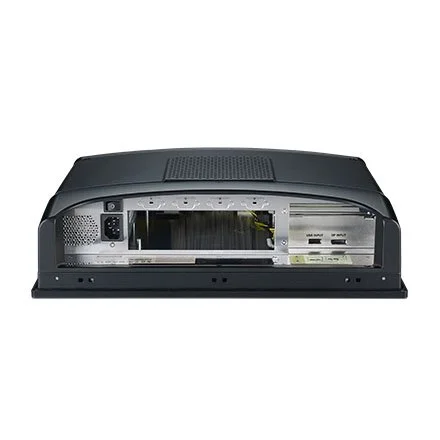

15" Configurable Panel PC Chassis for selectable Mini-ITX Motherboard

• 15” true-flat PPC with Resistive touch

• Supports certified mini-ITX motherboard up to 65W TDP processor

• Support PCI or PCIe expansion slot

• Front LED indicators for power status

• Front panel is IP66 compliant

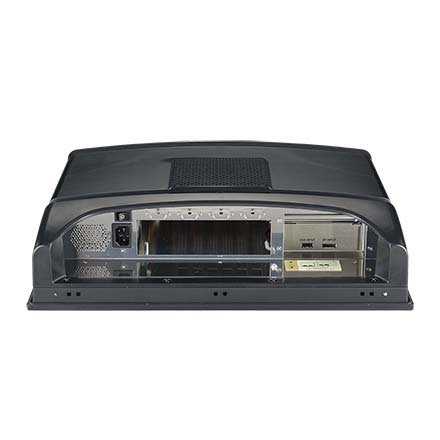

17" Configurable Panel PC Chassis for Selectable Mini-ITX Motherboards

• 17” true-flat PPC with Resistive touch

• Supports certified mini-ITX motherboard up to 65W TDP processor

• Support PCI or PCIe expansion slot

• Front LED indicators for power status

• Front panel is IP66 compliant

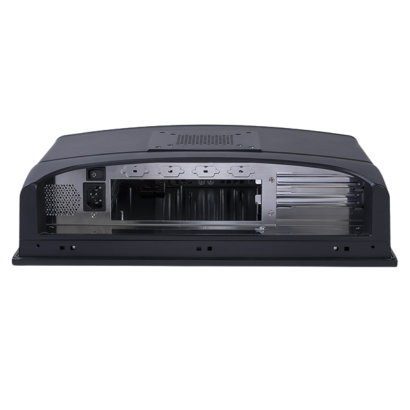

19" Configurable Panel PC Chassis for selectable Mini-ITX Motherboard

• 19" true-flat panel PC with resistive touch

• Supports certified mini-ITX motherboards (up to 65W TDP processor)

• PCI or PCIe expansion slots

• Front-facing power status LED indicators

• IP66-rated front panel

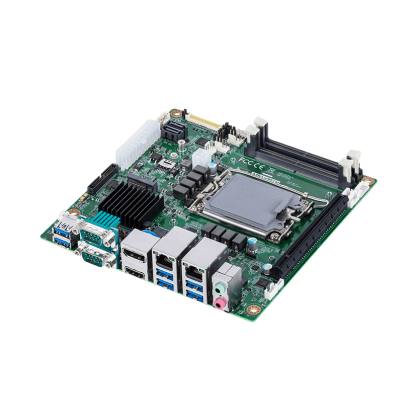

Mini-ITX M/B support 12th/13th Gen Intel® Core™ processors, H610E, 3 x LAN for PPC-600

• Supports Intel® 12/13th Gen Core™ i processor (LGA1700) with Intel Q670E/ H610E chipset

• Two 262-pin SO-DIMM up to 64GB DDR5 4800 MHz SDRAM

• Supports triple display of DP/HDMI/LVDS

• Supports PCIe x16 (Gen 5), 1 x M.2 M key & 1 M.2 E key, 6 USB 3.2

• Supports 2 x SATA 3.0 (Raid 0, 1) (only for PCH Q670E)

• Supports TPM 2.0

• Supports 4 RS-232,1 RS-232/422/485

• Supports 1 GPIO(8 channels)

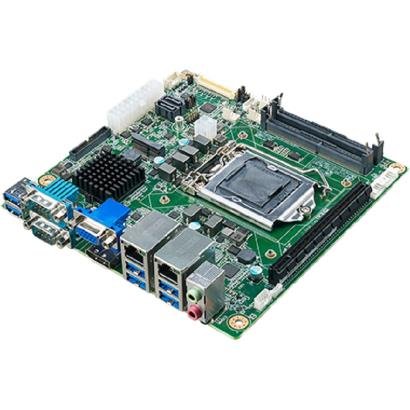

Intel® 8th & 9th Gen. Core™ i Mini-ITX Motherboard

• Supports Intel® 8th & 9th Gen Core™ i processor (LGA1151) with Intel Q370 chipset

• Two 260-pin SO-DIMM up to 32GB DDR4 2666 MHz SDRAM

• Supports triple display of DP/VGA/LVDS

• Supports PCIe x16 (Gen 3), 1 M.2 M key & 1 M.2 E key, 6 x USB 3.1

• Supports 2 x SATA 3.0 (Raid 0, 1)

• Supports TPM 2.0 (optional)

• Supports 4 RS-232,1 RS-232/422/485

• Supports 1 GPIO(8 channels)
