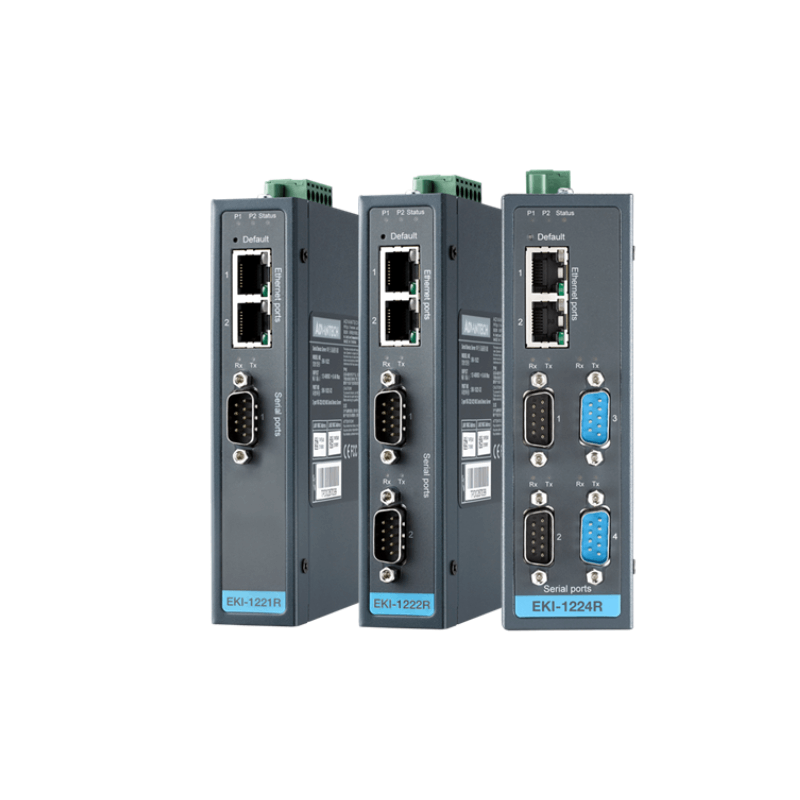

Ethernet/ Serial Device server

1-Port Modbus Gateway

• Security functions refer to the IEC 62443-4-2 standard

• Provides 2 x 10/100 Mbps Ethernet ports for LAN redundancy

• Integration of Modbus TCP and Modbus RTU/ASCII networks

• Supports up to 921.6 kbps, and any baud rate setting

• Support up to 16 connections on each serial port under Modbus Client mode and 32 sessions under Modbus Server mode.

• Supports agent mode providing the fastest response time.

• Supports Power, Ethernet and Device Redundancy.

• Automatic RS-485 data flow control

• "I" models support a wide operating temperature； "CI" models support isolation and a wide operating temperature

2-Port Modbus Gateway

• Security functions refer to the IEC 62443-4-2 standard

• Provides 2 x 10/100 Mbps Ethernet ports for LAN redundancy

• Integration of Modbus TCP and Modbus RTU/ASCII networks

• Supports up to 921.6 kbps, and any baud rate setting

• Support up to 16 connections on each serial port under Modbus Client mode and 32 sessions under Modbus Server mode.

• Supports agent mode providing the fastest response time

• Supports Power, Ethernet and Device Redundancy

• Software selectable RS-232/422/485 communication

• "I" models support a wide operating temperature ; "CI" models support isolation and a wide operating temperature

4-Port Modbus Gateway

• Security functions refer to the IEC 62443-4-2 standard

• Provides 2 x 10/100 Mbps Ethernet ports for LAN redundancy

• Integration of Modbus TCP and Modbus RTU/ASCII networks

• Supports up to 921.6 kbps, and any baud rate setting

• Support up to 16 connections on each serial port under Modbus Client mode and 32 sessions under Modbus Server mode.

• Supports agent mode providing the fastest response time.

• Supports Power, Ethernet and Device Redundancy.

• Software selectable RS-232/422/485 communication

• "I" models support a wide operating temperature ; "CI" models support isolation and a wide operating temperature

1-Port Serial Device Server

• Security functions refer to the IEC 62443-4-2 standard

• Provides 2 x 10/100 Mbps Ethernet ports for LAN redundancy

• Provides secure operations in COM port redirection (Virtual COM), TCP modes

• Supports up to 921.6 kbps, and any baud rate setting

• Allows a max. of 5 hosts to access one serial port

• Allows a max. of 16 hosts to be accessed as TCP client mode

• Software selectable RS-232/422/485 communication

• Automatic RS-485 data flow control

• "I" models support a wide operating temperature

• "CI" models support isolation and a wide operating temperature

2-Port Serial Device Server

• Security functions refer to the IEC 62443-4-2 standard

• Provides 2 x 10/100 Mbps Ethernet ports for LAN redundancy

• Provides secure operation in COM port redirection (Virtual COM), TCP modes

• Supports up to 921.6 kbps, and any baud rate setting

• Allows a max. of 5 hosts to access one serial port

• Allows a max. of 16 hosts to be accessed as TCP client mode

• Software selectable RS-232/422/485 communication

• Automatic RS-485 data flow control

• "I" models support a wide operating temperature

• "CI" models support isolation and a wide operating temperature

4-Port Serial Device Server

• Security functions refer to the IEC 62443-4-2 standard

• Provides 2 x 10/100 Mbps Ethernet ports for LAN redundancy

• Provides secure operation in COM port redirection (Virtual COM), TCP modes

• Supports up to 921.6 kbps, and any baud rate setting

• Allows a max. of 5 hosts to access one serial port

• Allows a max. of 16 hosts to be accessed as TCP client mode

• Software selectable RS-232/422/485 communication

• Automatic RS-485 data flow control

• "I" models support a wide operating temperature

• "CI" models support isolation and a wide operating temperature
