Substation Platform

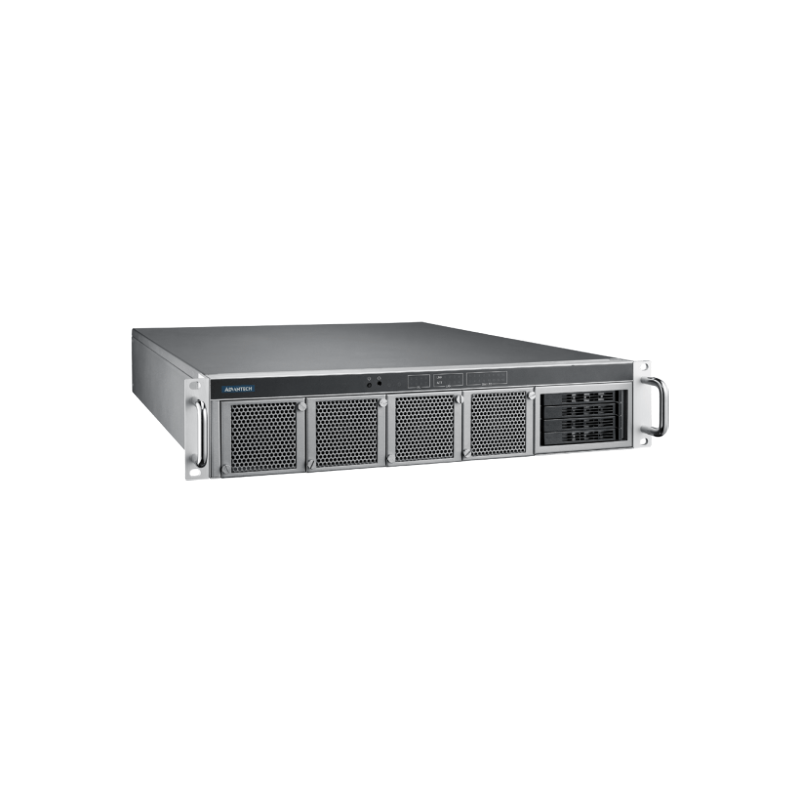

IEC-61850-3 Certified Power Automation Server Based on Intel® Xeon® Scalable Processor Family

• 2U rackmount server with wide operating temperature

• Suppports 2nd Gen. Intel® Xeon® Scalable Processors

• 12 x DIMM sockets supporting up to 768GB DDR4 SDRAM

• Up to 2 x hot-swappable PSUs and 4 x hot-swappable fans for redundancy

• Up to 4 x 2.5" hot-swappable HDD/SSD, 1 x M.2 2280 SATA/PCIe SSD

• Up to 2 x PCIe x16 Gen3 slots, PCIe x8 Gen3 slots, PCIe x4 Gen3 slots

• IPMI 2.0-compliant management with reliability and security enhancements

• Optional TPM 2.0 module

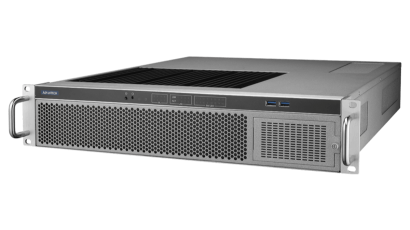

IEC-61850-3 Certified Power Automation Computer Based on 13th Generation Intel® Core™ Processors

• 13th Gen Intel® Processor with 8+8 Cores

• Quad display interfaces for SCADA and more multi-display use cases

• Support for a RAID card, HSR/PRP expansion card, and redundant PSU

• Supports Intel® AMT, iBMC, SNMP for remote management

• Wide operating temperature range, fanless rugged design for harsh environments

• Optional 10-year warranty and long product life cycle for substations

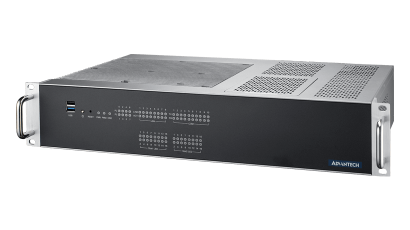

IEC 61850-3 Certified Fanless Server with Intel® 6th/9th Gen. Core™ Processors

• 9th Intel® Xeon® Processors

• Isolated 8 x LAN, 10 x Serial Port Communication Interfaces

• 100-240VAC/DC Redundant Power Supply (configurable option)

• 48VDC PSU option (Configuration option)

• 2 x IO Expansion Slots

• 3 x 2.5" SATA SSD, 1 x M.2 (M Key), Support RAID 0,1

• DVI-D & DVI-I Display Interface

• Programmable LEDs for customized application

• Supports SNMP for remote management

• Trusted Platform Module (TPM)

2-Port SFP Base Etheret with HSR/PRP Low profile PCI Express Communication Card

• CE/FCC certification

• Supports HSR protocol (IEC 62439-3, Clause 5)

• Supports PRP protocol (IEC 62439-3, Clause 4)

• PCI Express® x1 compliant

• 2 x SFP interface (for HSR/PRP)

• 1 x RJ45 (Interlink)

• Support IEEE 1588

• -25 ~ 70°C operating temperature range

8-Port SFP/RJ45 Gigabit Ethernet Card

• CE/FCC Certification

• 8 x GbE

• PCI Express Extension

• 8 x SFP Interface (for ECU-P1528PE)

• Operation Temp: -25 ~ 60°C

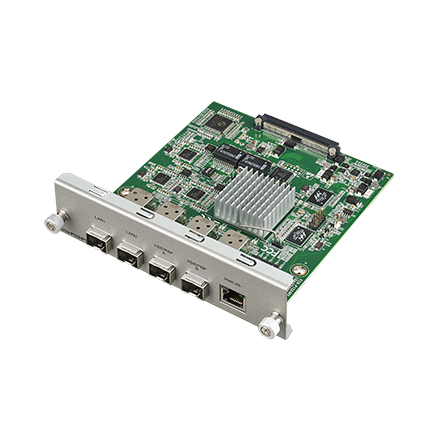

2-port SFP Ethernet Card with HSR/PRP

• CE/FCC Certification

• Support HSR Protocol (IEC 62439-3 Clause 5)

• Support PRP Protocol (IEC 62439-3 Clause 4)

• PCI Express Extension

• 2 x SFP Interface (For Ethernet Comm.)

• 2 x SFP Interface (For HSR/PRP)

• 1 x RJ45 (Interlink)

• Support IEEE 1588

• Operation Temp: -25~ 70°C

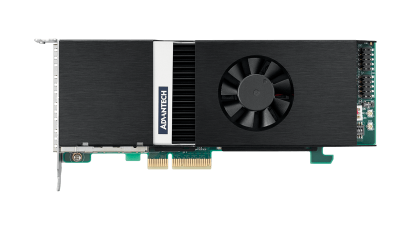

Virtualized HSR/PRP PCI Express Communication Card

• Intel® X550 Controller

• 4 x GbE SFP ports

• PCIe Gen.2 x4 host interface

• Low Profile (half length) form factors

• Support HSR Protocal (IEC-62439-3, Clause 5)

• Support PRP Protocal (IEC-62439-3, Clause 4)

• Supports multi-mode fiber (SX) and single-mode fiber (LX) modules

• Supports SR-IOV based virtualization

• Support IEEE 1588

8-port Non-Isolated RS-232/422/485 Ethernet Card

• IEC 61850-3 and IEEE 1613 compliant for substation automation applications

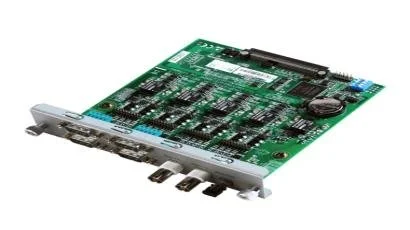

4-port Isolated RS-232/422/485 with IRIG B Card

• 4xRS-232/422/485 Isolated Serial Ports with Automatic Flow Control

• Fiber, TTL, and RS-485 IRIG-B Demodulated Time Code Inputs

• TTL and RS-485 IRIG-B Demodulated Time Code Onputs

• IEC 61850-3 and IEEE 1613 Compliant for Substation Automation Applications

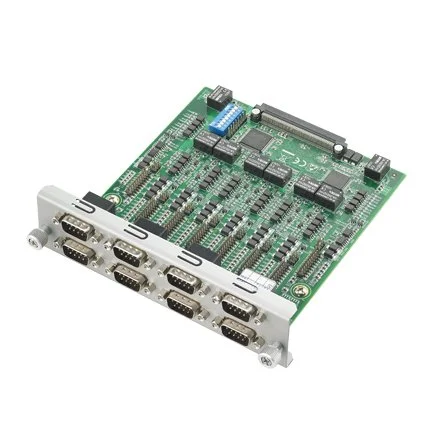

8-port Isolated RS-232/422/485 Ethernet Card

• IEC 61850-3 and IEEE 1613 compliant for substation automation applications

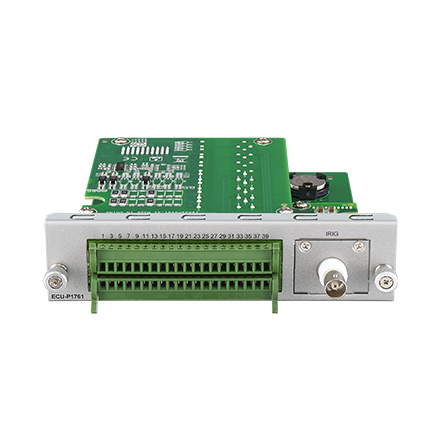

4-ch Isolated Digital Input, 4-ch Isolated Relay Output with IRIG-B Card

• CE/FCC Certification

• 4 x Isolated Digital Input

• 4 x Isolated Relay Output

• 1 x IRIG-B

• PCI Extension

• OperationTemp: -25~ 70°C

IEC 61850-3 Certified Power Automation Computer Based on 14th Generation Intel® Core™ Processors

• 14th Gen Intel® Processor with 8+16 Cores

• 2 x DDR4 SODIMM RAM, up to 64GB

• Tri-display interfaces for SCADA and more multi-display use cases

• 100-240 VAC/ 100-250VDC Redundant Power Supply (configurable option)

• Supports SNMP for remote management

• Wide operating temperature range, fanless rugged design for harsh environments

• Optional 10-year warranty and long product life cycle for substations

• Supports TPM 2.0
