Features & Benefits
Within the expanding Industrial IoT landscape, governments, equipment manufacturers, and smart infrastructure operators are actively seeking dependable solutions for real-time data insight and cost optimization. Advantech’s ECU-1000 series is designed to simplify field data acquisition and connectivity in Industrial IoT applications. With built-in EdgeLink software, it enables protocol conversion and seamless integration with major cloud platforms. EdgeHub further enhances the series by supporting remote operation, device monitoring, and secure maintenance. From basic communication gateways to high-performance intelligent platforms, the ECU-1000 series offers scalable solutions to meet diverse industrial needs.
-
Built-in 200+ PLC drivers and diverse industrial protocols: Modbus RTU/TCP, OPC UA, IEC-104, IEC-61850, DNP3, BACnet, SNMP, etc.
Bidirectional data conversion: Legacy equipment ↔ Modern IT platforms (MQTT, REST API, JSON)
Cloud-native architecture with pre-integrated connectors for AWS, Azure, and popular Cloud platforms
Local data processing: Filtering, alarm thresholds, and compression to reduce cloud bandwidth costs
Edge buffering with local storage or server backup (SQL, FTP server) ensures data continuity during network outages
-
One-click onboarding EdgeHub central cloud management platform
Remote configuration push to multiple gateways simultaneously
OTA firmware updates with version control
Secure PLC remote programming via encrypted network tunnel service
-
Industrial design for outdoor & harsh environments
-
TPM2.0, secure boot, VPN connectivity and IEC-62443 compliance
Products:
10 Total Items
-
ECU-1051
Industrial Communication Gateway with TI Cortex A8, 2 LAN & 2 COM
TI Cortex A8 600MHz CPU with DDR3L 256MB RAM
Support web service for remotely on-line monitoring
Firmware update by SD card and online update
Data logger on SD card
Support dual SIM slots for communication redundant
Support MQTT Client for cloud communication
Wide Operating temperature: -40 ~ 70°C
No RED Certification
-

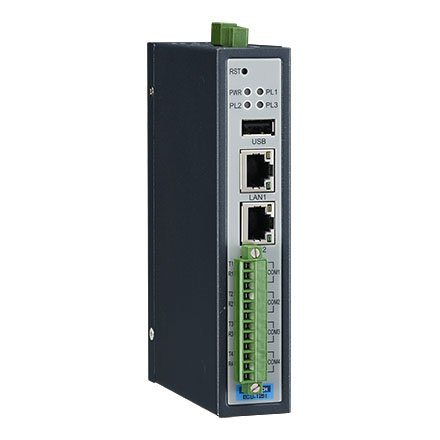

ECU-1251
Industrial Communication Gateway with TI Cortex A8, 2 x LAN & 4 COM
TI Cortex A8, 800MHz
DDR3L 256MB RAM
1 x Micro-SD Slot
4 x RS-232/485 isolated serial ports
2 x 10/100 Base-T Ethernet ports
1 x Mini-PCIe for WIFI/3G/GPRS/4G
Support web service for remotely on-line monitoring
Support SD card & on-line firmware update
Support Modbus, IEC-60870-101/104 protocol
Support Data logger on SD card
RED Compliance
Operation Temperature -40~70°C
-

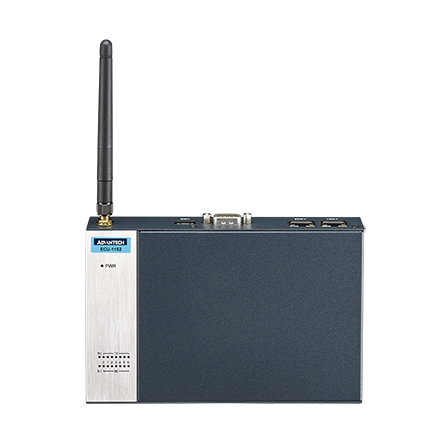

ECU-1152
Industrial Communication Gateway with TI Cortex A8, 2 LAN & 6 COM
TI Cortex A8 800MHz CPU
DDR3L512MB RAM
1GB Micro-SD card for system storage
1 x Micro-SD Slot
6 x RS-232/485 isolated serial ports
2 x 10/100 Base-T Ethernet ports
1 x Mini-PCIe for WIFI/3G/GPRS/4G
Support web service for remotely on-line monitoring
Support SD card & on-line firmware update
Support Modbus, IEC-60870-101/104 protocol
Support Data logger on SD card
No RED Certification
Operation Temperature -40~70°C
-

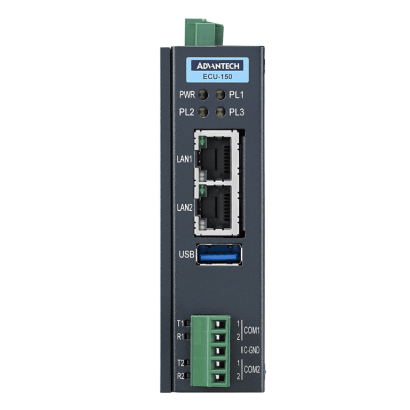

ECU-150
Compact High-Performance IoT Gateway with NXP i.MX8M Quad Core Cortex A53, 2 LAN, 2 COM & 1 USB
NXP i.MX8M Quad Core Cortex A53 1.3G CPU
DDR4 2GB RAM, 16GB eMMC for system storage
2 x RS-232/485 isolated serial ports
2 x 10/100/1000 Ethernet ports
1 x Mini-PCIe for WIFI/Cellular/4G
Support web service for remotely on-line monitoring
Support SD card & on-line firmware update
Support Modbus, IEC-60870-5, DNP3.0, OPC-UA, BACNet protocol （ECU-150-12A1&ECU-150-12A1U need container EdgeLink）
Support Data logger on SD card
-
ECU-1251D
Industrial Communication Gateway with TI Cortex A8, 2 LAN, 2 COM, 4 DI & 4 DO
TI Cortex A8 600MHz CPU with DDR3L 256MB RAM
Onboard IO - 4DI / 4DO
Support web service for remotely on-line monitoring
Firmware update by SD card and online update
Data logger on SD card
Support dual SIM slots for communication redundant
Support MQTT Client for cloud communication
Wide Operating temperature: -40 ~ 70°C
-
ECU-1252
Industrial Communication Gateway with TI Cortex A9, 2 LAN, 2 COM & 2 CAN
TI Cortex A9 600MHz CPU
DDR3L 2GB RAM
16GB eMMC for system storage
1 x Micro-SD Slot
2 x CAN port
2 x RS-232/485 isolated serial ports
2 x 1000 Base-T Ethernet ports
1 x Mini-PCIe for WIFI/Cellular/4G
Support web service for remotely on-line monitoring
-
ECU-1251 V2
Industrial Communication Gateway with TI Cortex A9, 2 x LAN & 4 COM
Cortex A9 600MHz processor with 2G RAM
16GB eMMC system storage and 1 x Micro-SD Slot
4 x RS-232/485 isolated serial ports
2 x 10/100 Ethernet ports and 1x mPCIe for wireless communication expansion
Support web service for remotely on-line monitoring
Supports SD cards and OTA firmware updates
EdgeLink IoT software for data acquisition and cloud communication
Wide Operating temperature: -40 ~ 70°C
-

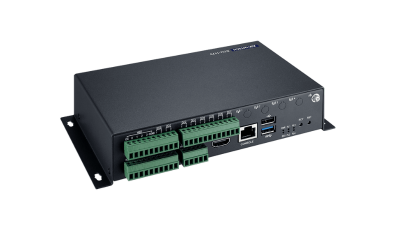

ECU-1170
High-Performance All-in-One Gateway for Battery Energy Storage Systems
Quad-core Cortex-A55 processor, 1.8GHz
Connectivity: 4 GbE, 8 RS-232/485, 2 CAN, 1 mPCle and 1 M.2
I/O: 20 DI, 6 DO, 8 Relay, 2 AI
Battery-powered RTC, Watchdog, and optional TPM support
Wide operating temperature range: -40~70°C
Optional 5 sec power backup with Supercapacitor
Supports IEC 61850, IEC 104, DNP3, Modbus, MQTT, and OPC UA
Preloaded with Yocto Linux and EdgeLink or Ubuntu Linux
-

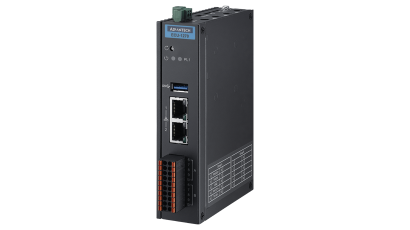

ECU-1270
Expandable Industrial IoT Gateway with TI AM6734 Quad Cortex A53
TI AM6734 Quad-core Cortex A53 CPU up to 1.4GHz
LPDDR4 2/4GB up to 8GB, eMMC 32GB for system storage
2x isolated serial ports, configurable for RS232/485
2x 10/100/1000 Ethernet ports
Add-on modules available for CAN FD/serial/digital I/O expansion
Slim, robust, and fanless
Supports SD cards and OTA firmware updates
-

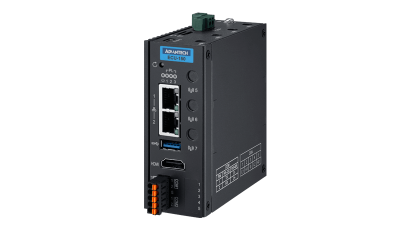

ECU-150 V2
ECU-150 V2 includes two RS-232/485 isolated serial ports, two 10/100/1000 Ethernet ports, and a USB 3.0 port, ensuring seamless connectivity.
NXP i.MX8M Plus Quad-core Cortex A53 CPU up to 1.6GHz
LPDDR4 2/4GB up to 8GB, eMMC 16/32GB up to 128GB for system storage
2x isolated serial ports, configurable for RS232/485
2x 10/100/1000 Ethernet ports
2x M.2 expansion available
Add-on modules available for CAN FD expansion
Slim, robust, and fanless
Supports SD cards and OTA firmware updates
