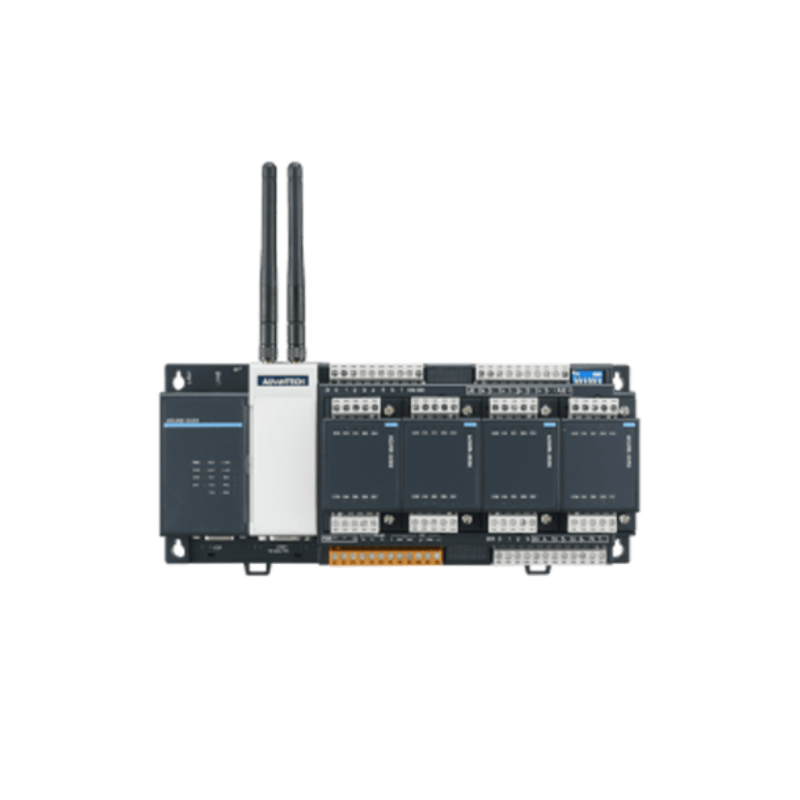

Intelligent RTU (Remote Terminal Unit) : ADAM-3600

8AI/ 8DI/ 4DO/ 4-Slot IO Modbus /BACnet /101/104 /DNP3/PLC/Azure/AWS IoT RTU

• Domain Focused Onboard IO -8AI / 8DI / 4DO

• High I/O Flexibility with 4-slot I/O Expansion

• Modbus & DNP3 Protocol

• IEC 61131-3&C Programming Language

• Operation Temperature -40~70°C

• Multiple wireless options for Zigbee/ Wi-Fi/ 3G/ 4G/ GPRS

• High Performance CPU Cortex A8 600MHz

• Low Power DDR3L 256MB RAM

• Embedded Real-time Linux Kernel

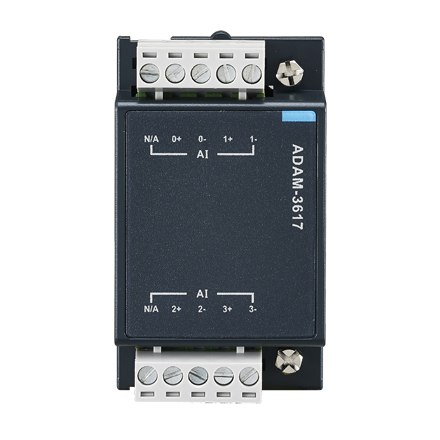

4-ch Analog Input Module

• Accuracy: ±0.1% or better of FSR (Voltage) ±0.2% or better of FSR (Current)

• Resolution: 16-bit

• Voltage/Current: ±10V, ±2.5V, 0 ~ 20mA, Range 4 ~ 20mA

• Isolation Voltage: 2000 V DC

• Sampling rate: 10 sample/second (total)

• Burn-out detection: Yes (Current-only)

• Input Impedance: 0.1 MΩ

• Input Type: Voltage, Current

• Channels: 4, differential

8-ch Digital Input Module

• Rated Input : >5mA @ 12 VDC

• Current : >10mA @ 24 VDC

• Input Filter : Programmable, Default 3ms

• Pulse Input Frequency : 150Hz

• Over Voltage Protection : +40 VDC

• -40 ~ 70°C operating temperature

• Supports Sink (Wet Contact) / Counter input type

4-ch Analog Output Module

• Resolution 12-bit

• Isolation Voltage 2000 VDC

• Output Type Voltage, Current

• Channels 4

8-ch Digital Output Module

• Rated voltage : 8 ~ 30 VDC

• Supports open collector (Sink) output type

• Over voltage protection : +40 VDC

• Opto-isolator response time : 150 us (max)

• Pulse output frequency : 1 KHz

• Isolation voltage : 2000 VDC

• Rated current : 200 mA (max load)

• -40 ~ 70°C operating temperature
