Products:
4 Total Items
-

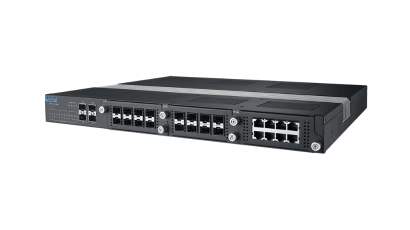

EKI-8528-4XF
IEC 61850-3 L3 Modular Managed Switch
Certified to IEC 62443-4-2 SL2
3 x 8 Gigabit ports module slots + 4 x 10G SFP+ ports
Dual power input options for 110/220V AC or 24-48V DC power module
L3 functions: RIP v1/v2, OSPF, VRRP, PIM and NAT
Fully layer 2 and TSN-enabled functions
Features IEEE 802.1AS Time Synchronization, IEEE 802.1Qbu Frame Preemption, IEEE 802.1Qbv Time Aware Shaper and IEEE 802.1CB Seamless Redundancy
Redundancy: X-Ring Pro (< 20ms @250units), X-Chain
-40 ~ 75˚C wide-range operating temperature
-
EKI-8528-4XFL
IEC 61850-3 L2 Modular Managed Switch
Certified to IEC 62443-4-2 SL2
3 x 8 Gigabit ports module slots + 4 x 10G SFP+ ports
Dual power input options for 110/220V AC or 24-48V DC power module
Fully layer 2 and TSN-enabled functions
Features IEEE 802.1AS Time Synchronization, IEEE 802.1Qbu Frame Preemption, IEEE 802.1Qbv Time Aware Shaper and IEEE 802.1CB Seamless Redundancy
Redundancy: X-Ring Pro (< 20ms @250units), X-Chain
-40 ~ 75˚C wide-range operating temperature
-

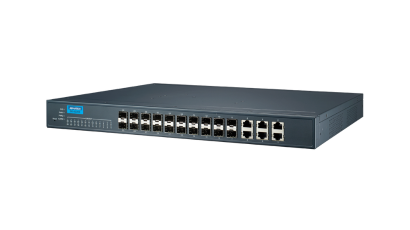

EKI-9226G-20FMI
IEC61850-3 20G SFP + 6GE Managed Ethernet Switch, 48DC
-40 ~ 85˚C wide-range operating temperature
Dual Power input and 2 relay output
Redundancy: Gigabit X-Ring Pro (ultra high-speed recovery time < 20 ms), RSTP/STP (802.1w/1D),MSTP
Security: 802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption), HTTPS, SSH and SNMPv3
Management: SNMP v1/v2c/v3, WEB, Telnet, Standard MIB
SFP socket for Easy and Flexible Fiber Expansion
20 x Gigabit SFP ports + 6 x Gigabit x RJ-45 ports
-
EKI-9226G-20FOI
IEC61850-3 20G SFP + 6GE Managed Ethernet Switch, 90 ~ 264VAC/88 ~ 370VDC
-40 ~ 85˚C wide-range operating temperature
Dual Power input and 2 relay output
Redundancy: Gigabit X-Ring Pro (ultra high-speed recovery time < 20 ms), RSTP/STP (802.1w/1D),MSTP
Security: 802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption), HTTPS, SSH and SNMPv3
Management: SNMP v1/v2c/v3, WEB, Telnet, Standard MIB
SFP socket for Easy and Flexible Fiber Expansion
20 x Gigabit SFP ports + 6 x Gigabit x RJ-45 ports
-
EKI-9226G-20FOI
IEC61850-3 20G SFP + 6GE Managed Ethernet Switch, 90 ~ 264VAC/88 ~ 370VDC
-40 ~ 85˚C wide-range operating temperature
Dual Power input and 2 relay output
Redundancy: Gigabit X-Ring Pro (ultra high-speed recovery time < 20 ms), RSTP/STP (802.1w/1D),MSTP
Security: 802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption), HTTPS, SSH and SNMPv3
Management: SNMP v1/v2c/v3, WEB, Telnet, Standard MIB
SFP socket for Easy and Flexible Fiber Expansion
20 x Gigabit SFP ports + 6 x Gigabit x RJ-45 ports
