AMG150-1G-S60-PD

$0.00

5060811143025

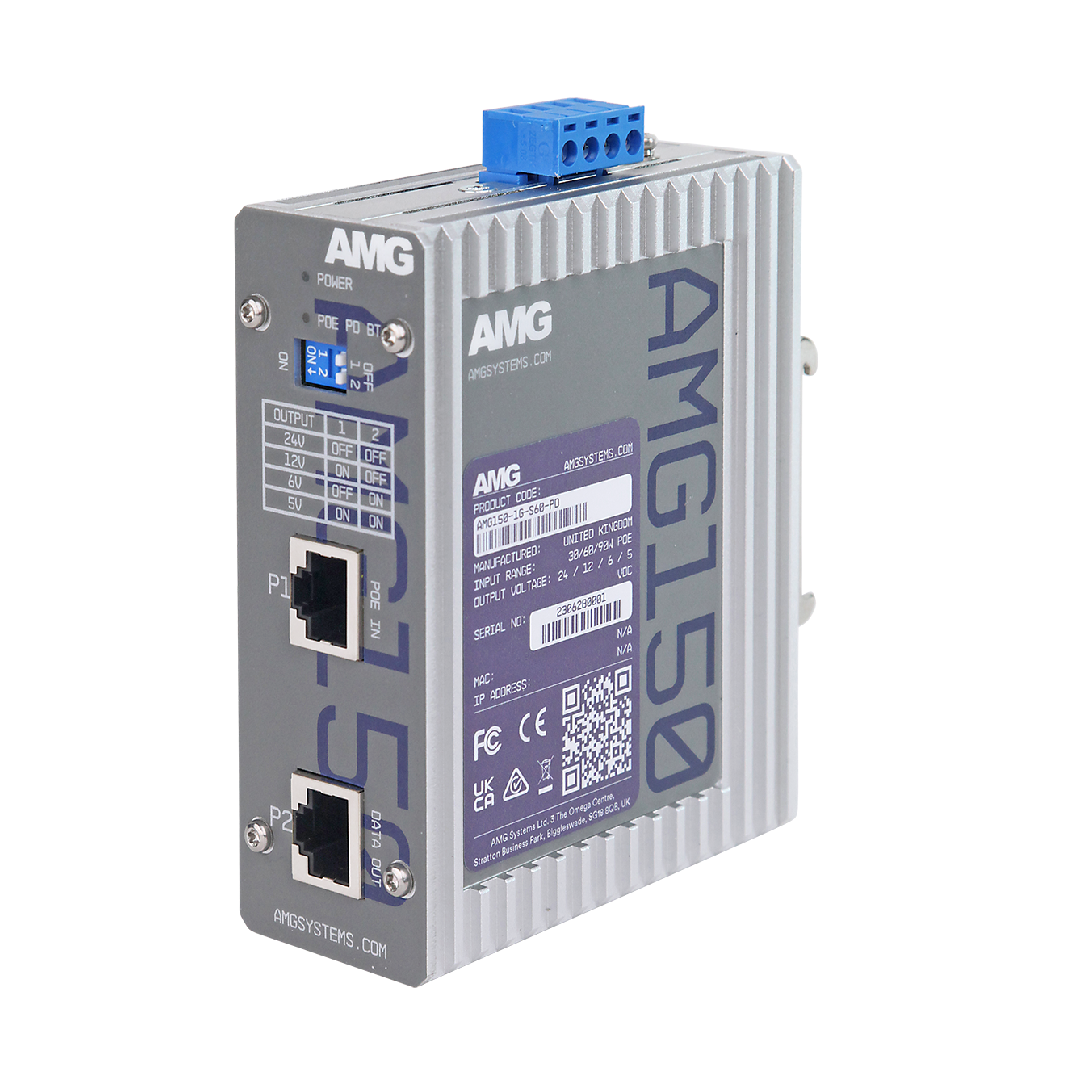

Industrial 1 Port PoE Splitter, 1 x 10/100/1000Base-T(x) RJ45 Port with 802.3bt 90W PD Input, 1 x 10/100/1000Base-T(x) RJ45 Port Output, 5/6/12/24VDC Output @ 60W (5A Max), DIN Rail/Wall Mount, -40°C to +75°C,  Includes 2x DC Power Cables, PoE Powered

5060811143025

Industrial 1 Port PoE Splitter, 1 x 10/100/1000Base-T(x) RJ45 Port with 802.3bt 90W PD Input, 1 x 10/100/1000Base-T(x) RJ45 Port Output, 5/6/12/24VDC Output @ 60W (5A Max), DIN Rail/Wall Mount, -40°C to +75°C,  Includes 2x DC Power Cables, PoE Powered

Features

  • Compact size – ideal for confined spaces, including camera poles and roadside cabinets

  • -40°C to +75°C temperature maintains performance in extreme conditions

  • Plug & Play – no need for any user configuration

  • DIN rail mountable – quick to install and remove for maintenance

  • RJ45 ports support 10/100/1000Mb speeds

  • IEEE802.3af/at/bt 15/30/60/90W PoE PD power

  • User selectable 5/6/12/24VDC output voltage

  • Output power of up to 60W or 5 Amps (whichever is reached first for the respective voltage)

  • Integrated surge & ESD protection for maximum protection in harsh environments

  • Designed in the USA & UK. Manufactured in the United Kingdom

  • AMG Lifetime Support Warranty
