AMG160-1F-1EU

$0.00

5060811142066

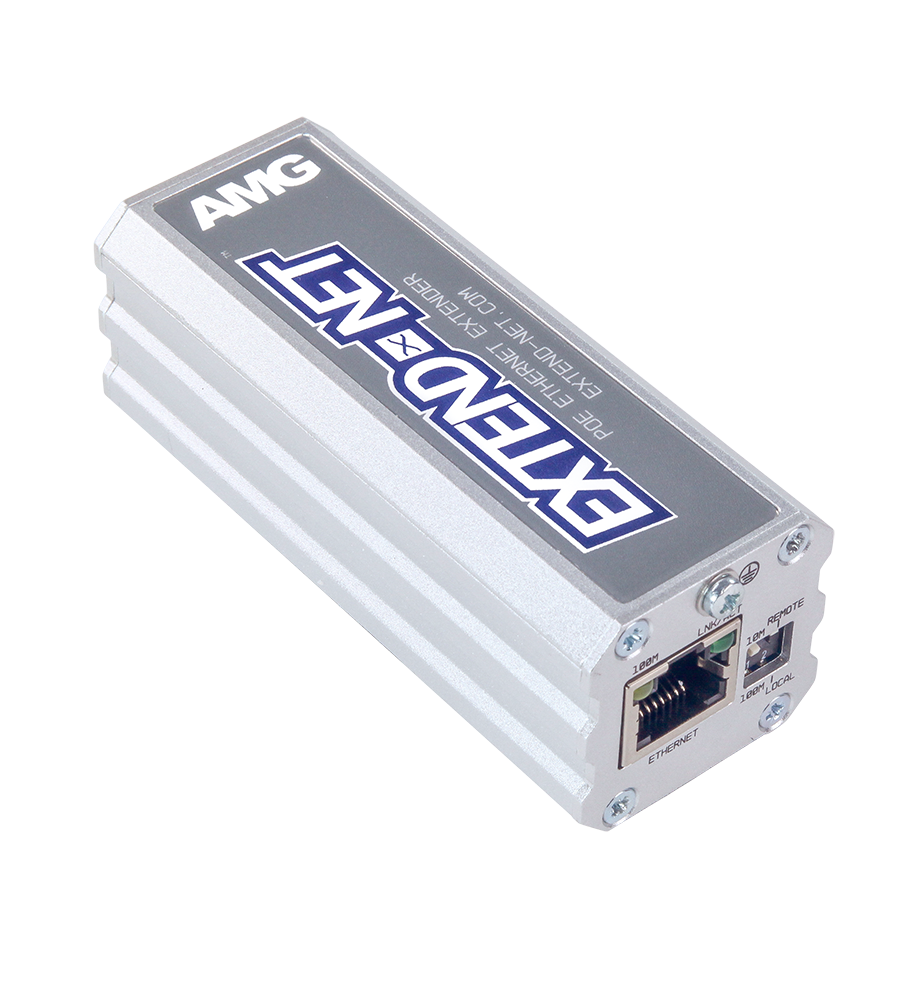

Industrial 1 Port Ethernet Extender Over UTP, 1 x 10/100Base-T(x) RJ45 Port, 1 x Extend-Net™ UTP RJ45 Port, Supports 802.3at/bt 30/60/90W PoE Pass-Through, DIN Rail / Wall Mount, -40°C to +75°C, 12-56VDC Power Input

5060811142066

Industrial 1 Port Ethernet Extender Over UTP, 1 x 10/100Base-T(x) RJ45 Port, 1 x Extend-Net™ UTP RJ45 Port, Supports 802.3at/bt 30/60/90W PoE Pass-Through, DIN Rail / Wall Mount, -40°C to +75°C, 12-56VDC Power Input

Features

  • Compact size – ideal for confined spaces, including conduit, camera poles and roadside cabinets

  • -40°C to +75°C temperature maintains performance in extreme conditions

  • DIP switches for Local/Remote & 10/100Mb modes

  • Automatic 1-pair or 4-pair cable selection

  • Standalone, DIN rail or wall mountable – flexible mounting options are included with every unit

  • Extends Ethernet up to 550m (1,800 ft) at 100Mbps

  • Extends Ethernet up to 1000m (3,280 ft) at 10Mbps

  • Supports 15W, 30W, 60W & 90W PoE Pass-Through

  • Integrated surge protection on Extend-Net™ port

  • Unicast, Multicast & Jumbo Frames are supported along with full symmetrical bandwidth performance

  • Designed in the USA & UK. Manufactured in the United Kingdom

  • AMG Lifetime Support Warranty
