5060811144633

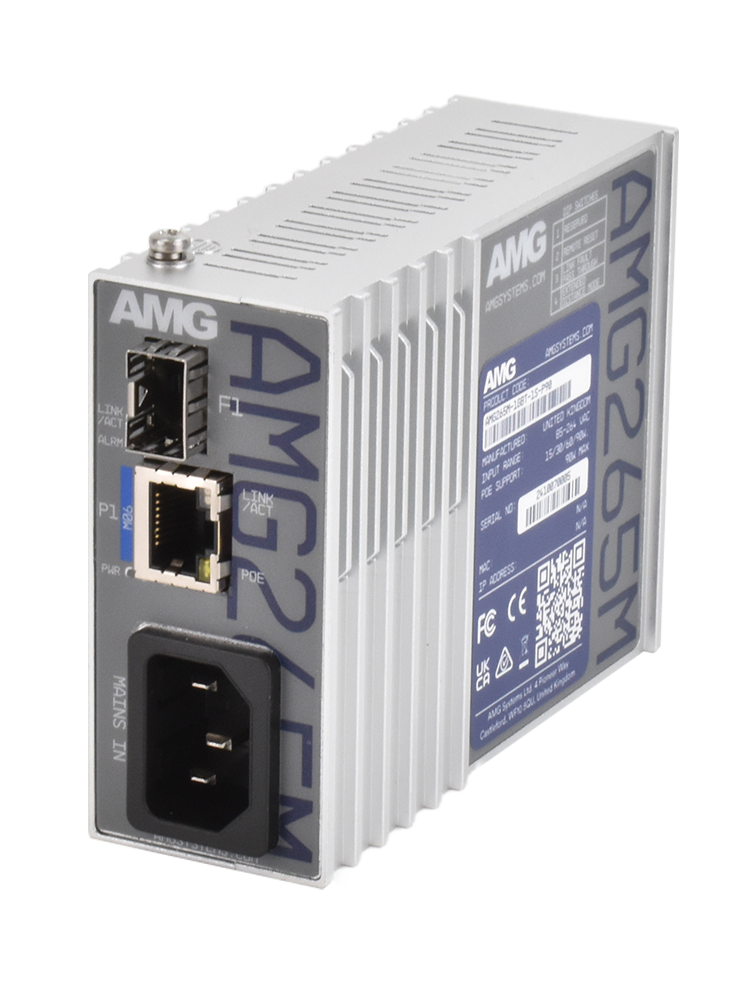

Industrial Mini PoE Media Converter 1 x 10/100Base-T(x) RJ45 Port with 802.3bt 60/90W PoE, 1 x 100/1000Base-Fx SFP Port, DIP-Switch Functions, DIN Rail / Wall Mount, -30°C to +75°C, Integrated 90W PSU, 85-264 VAC IEC Mains Power Input
Features
Ultra compact size – ideal for confined spaces, including camera housings and roadside cabinets
-30°C to +75°C temperature maintains performance in extreme conditions
DIN rail or wall mountable – quick to install and remove for maintenance (an optional magnetic mount is also available)
All SFP ports are multirate 100Mb/Gigabit – support single and multimode, single or dual fiber options up to 120Km
DIP switch selection of link fault pass-through, remote device reset and extended distance modes
Supports 15W, 30W, 60W and 90W PoE
Integrated mains power supply with 52VDC @ 90W output
Designed in the USA & UK. Manufactured in the United Kingdom
AMG Lifetime Support Warranty
