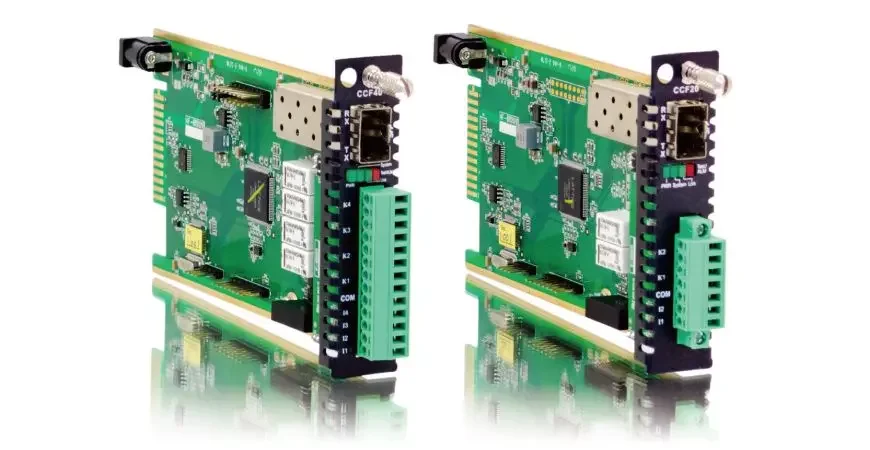

4ch / 2ch Contact Closure Fiber Converter Card
The FRM220-CCF contact closure fiber converter comes in two models, one with 2 channels (CCF20) and one with 4 channels (CCF40) and provides the transmission of contact closure over a single fiber optic link. With SFP cage on fiber ports, the FRM220-CCF gives you the fiber cabling connector SFP-LC, both multi-mode and single-mode, as well as BiDi which allows bi-directional transmission using only a single fiber core. The FRM220-CCF has contact inputs and 0.5 amp contact output relays. The relay output follows the “relay input” from the remote end. When the remote “relay input” is shorted, the local relay output is closed and vice-versa. Any one of the relay outputs can be configured to close when “carrier loss” is detected from the remote end. (Either through a CH01M console or via NMC in managed chassis.) Carrier Loss indicates that the optical fiber is disconnected or that the remote end has lost power and is not operating. This "carrier loss" relay can then be connected to an appropriate alarm circuit.
2-port Serial to Ethernet Wireless Device Server
2-port Serial to Ethernet Device Server
The serial to Ethernet wireless device server (STE211W) and serial to Ethernet device server (STE211) provide a bridging device to connect RS-232/RS-485 Serial Data communications to hardwired Ethernet networks or WiFi wireless networks. It connects serial devices such as PLC, alarm sensors and PTZ camera control to IP networks. Applications include industrial/factory automation, public safety, and surveillance systems. The Serial converter is built for use in light industrial environments, featuring a compact wall-mount design. It operates from 9-32VDC power supply voltages with terminal block connectors and is easy to configure through its web GUI interface.
Modbus to MQTT Gateway
The MQTT Wi-Fi / Ethernet / Serial Gateway, GW211W-MQ provides an easy to deploy device to send RS-232/RS-485 Serial Modbus RTU Data communications to MQTT TCP networks on hard-wired Ethernet or over wireless WiFi networks. The MQTT Gateway works with standard Modbus Slave device, such as PLCs, IoT Sensors, Energy meters (AMRs), Solar Inverters, Wind Turbines, IO Modules, Flow Meters and more. The MQTT Gateway is built for use in light industrial environments and features a compact wall-mount design. It operates from 9-32VDC power supply voltages with terminal block connectors and is easy to configure through its web GUI interface.
Modbus RTU to Modbus TCP Gateway
The Modbus Wi-Fi / Ethernet / Serial Gateway, GW211W-MB provides an easy to deploy device to send Modbus serial data communications over a packet network such as Ethernet or TCP/IP on a hard-wired network or via WiFi. The Modbus Gateway works with standard Modbus Slave devices, such as PLCs, IoT Sensors, Energy meters (AMRs), Solar Inverters, Wind Turbines, IO Modules, Flow Meters and more. The Modbus Gateway is built for use in light industrial environments and features a compact wall-mount design. It operates from 9-32VDC power supply voltages with terminal block connectors and each Modbus Gateway is easily configure through its web GUI interface.

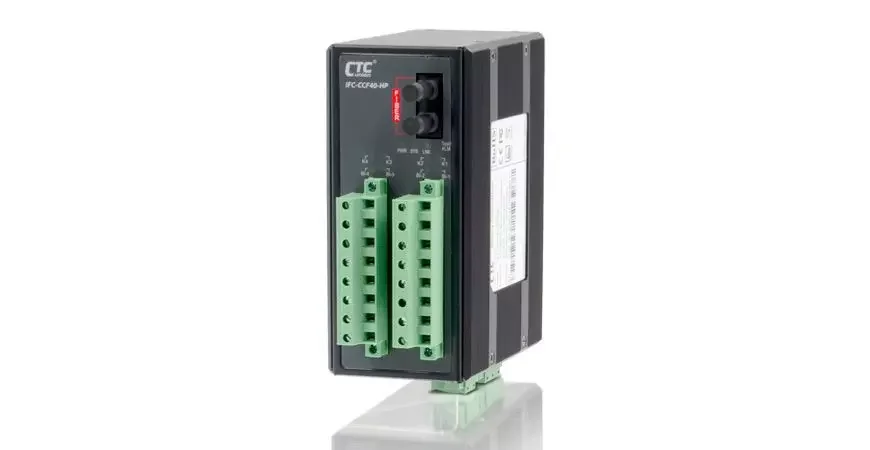

2/4 Channel Contact Closure Input, 2/4 Relay Output, Over Fiber Transmission
The Contact Closure over Fiber extender IFC-CCF series supports 2/4 channel contact closure to connect two points through a multimode or single-mode optical fiber, and then use a contact closure switch to open or close the contact between the two points. It is typically used in applications such as access control system, alarm event triggering, building automation, security barriers status indications and environmental control systems, fire & alarm systems, traffic signal control equipment etc.
1x RS485 to 1-port Fiber (SC/ST) Media Converter, support PROFIBUS
IFC-Serial-PRO is a serial over fiber converter that is capable of selecting interface modes for connection to RS-485 2-wire half duplex and supports high-speed data rates of PROFIBUS. Fiber optical cabling extends distances and isolates from EMC/noise to reduce interference between PROFIBUS devices. The terminal block offers an alarm relay contact and two redundant DC power inputs.
IFC -Serial-PRO is also available in two operating temperature ranges, a standard -10° to 60°C commercial temperature range and an extended -40° to 75°C range, making it is reliable and an ideal solution for keeping your industrial automation applications running smoothly and continuously even in harsh environments. IFC-Serial-PRO is protocol transparent, and can be applied to PROFIBUS and other networks using RS485 interfaces.
1x RS232/422/485 to 1-port Fiber (SC/ST) Media Converter
The IFC-Serial media converter is a capable of selecting interface mode for connection to RS-232 (3 wire), RS-485 (2 wire, half duplex) or RS-422/485 (4 wire, full duplex) and features a three-way communication plus a second independent RS-232 communication channel. Additionally, the terminal block offers an alarm relay contact and two redundant DC power inputs.
IFC-Serial is also available in two operating temperature ranges, a standard -10° to 60°C commercial temperature range and an extended -40° to 75°C range. With all these specifically designed features, IFC-Serial is a reliable and ideal solution for keeping your industrial automation applications running smoothly and continuously even in harsh environments. The product is protocol transparent that can be applied to RS485/422/232 networks, such as MODBUS to achieve reliable network.

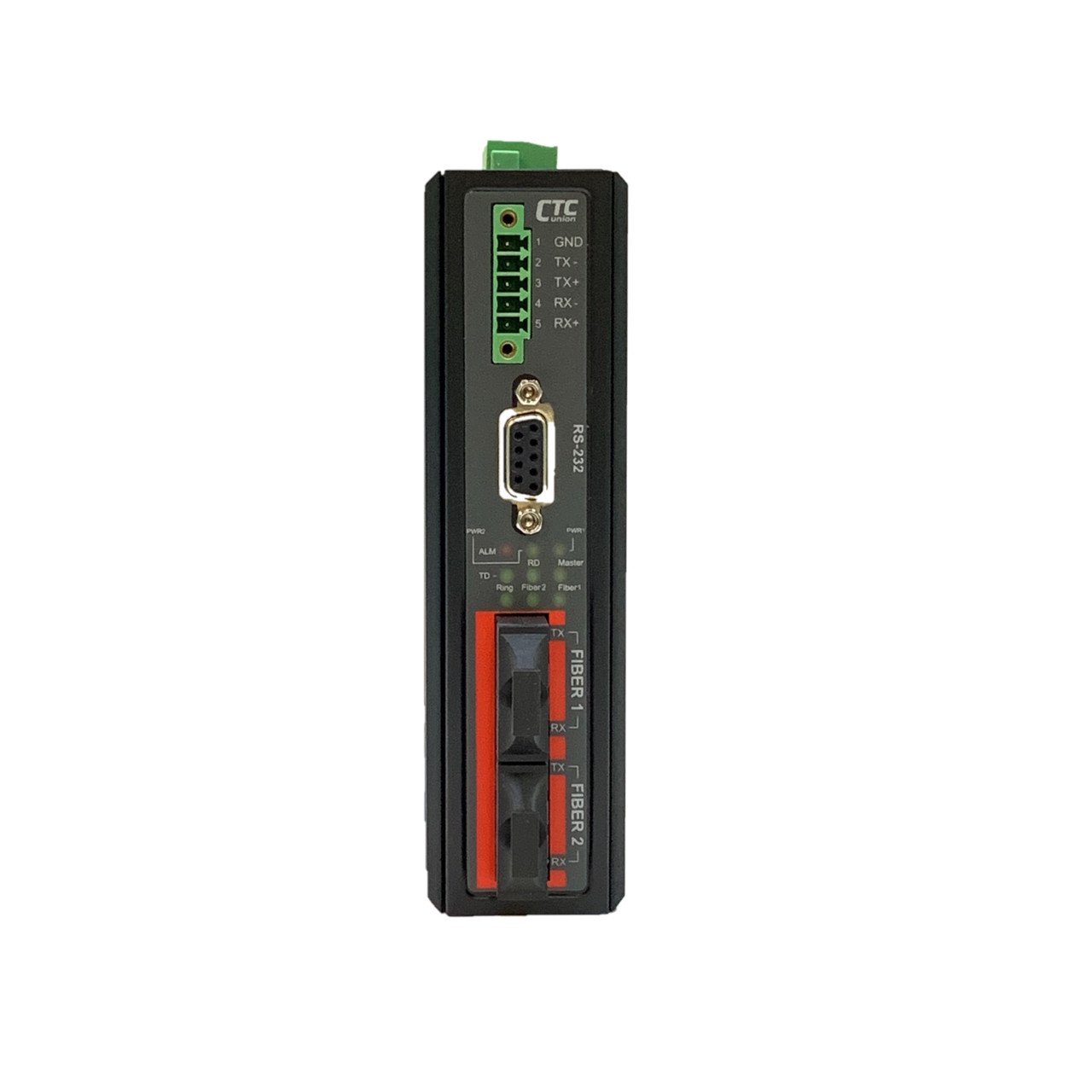

1x RS232/422/485 to 2-ports Fiber (SC/ST) Media Converter
The IFC-FDC converter is a capable of selecting interface mode for connection to RS-232 (3 wire), RS-485 (2 wire, half duplex) or RS-422/485 (4 wire, full duplex) and features a three-way communication plus a second independent RS-232 communication channel. Additionally, the terminal block offers an alarm relay contact and two redundant DC power inputs.
IFC-FDC is also available in two operating temperature ranges, a standard -10° to 60°C commercial temperature range and an extended -40° to 75°C range. With all these specifically designed features, IFC-FDC is a reliable and ideal solutions for keeping your industrial automation applications running smoothly and continuously even in harsh environments. The product is protocol transparent that can be applied to RS485/422/232 networks, such as MODBUS to achieve reliable network.
4 channel Binary Transducer
The IFC-FDC converter is a capable of selecting interface mode for connection to RS-232 (3 wire), RS-485 (2 wire, half duplex) or RS-422/485 (4 wire, full duplex) and features a three-way communication plus a second independent RS-232 communication channel. Additionally, the terminal block offers an alarm relay contact and two redundant DC power inputs. IFC-FDC is also available in two operating temperature ranges, a standard -10° to 60°C commercial temperature range and an extended -40° to 75°C range. With all these specifically designed features, IFC-FDC is a reliable and ideal solutions for keeping your industrial automation applications running smoothly and continuously even in harsh environments. The product is protocol transparent that can be applied to RS485/422/232 networks, such as MODBUS to achieve reliable network.
