CMD40/80/180

$0.00

Dual Fiber CWDM Mux/Demux Rack

Dual Fiber CWDM Mux/Demux Rack

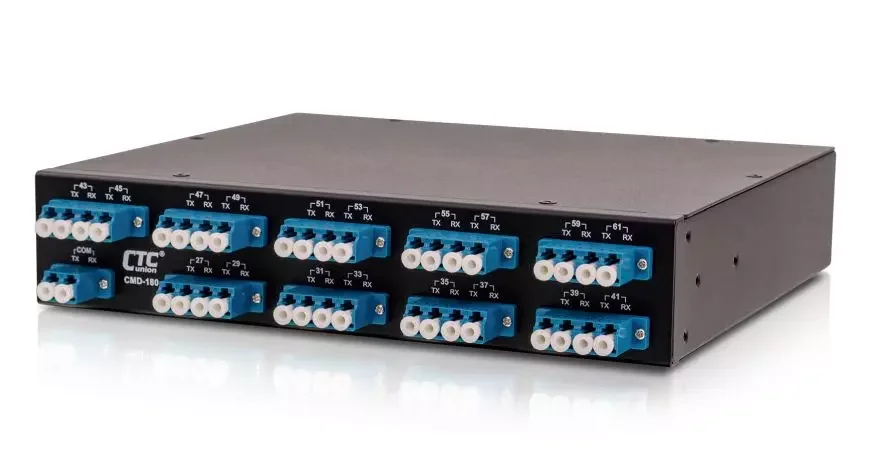

CMD40/80/180The CMD series is a standalone dual fiber CWDM Mux/Demux rack for CWDM wavelengths from 1271nm to 1611nm. When fiber availability is limited, the CMD Mux/Demux can increase the bandwidth on the existing fiber infrastructure. By using CMD Mux/Demux for 10Gbps per channel service, up to 180 Gbps could be supported on dual core fiber. The CMD Mux/Demux provides the primary wave division and combination functions for CWDM. Line side wave lengths require translation to client side equipment via a transponder card or direct connection to CWDM wavelength SFP or SFP+ modules.

Features

  • Full native mode performance

  • Protocol transparent, no limitation

  • Standard LC/UPC connectors

  • Utilizes industry standard ITU-T CWDM wavelength

  • Passive model requires no power

  • Integration with Transponder for CWDM application

Data Sheet

Application

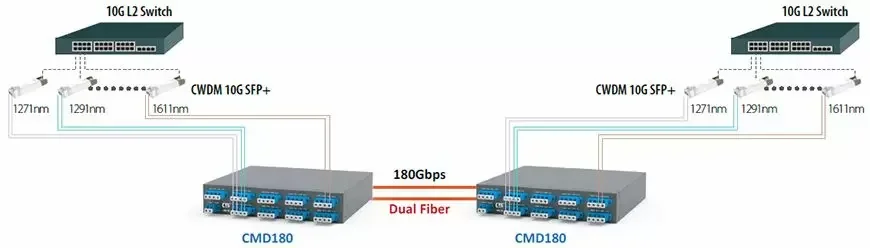

▪ Dual Fiber 18ch CWDM Mux/Demux Application
