The ET100A Network Bridge is a high performance remote, self-learning, Ethernet bridge. Its compact size and low cost makes it ideal for cost-sensitive bridging applications, or as a LAN extender or segmenter over bit stream type infrastructures. The built-in n x64 (56) Kbps timing clock generator makes it easy to connect to other n x 64 (56)Kbps related data equipment. Several options of data interfaces, including V.35, RS-530, RS-449, RS-232, and X.21 make this unit's connection between 10Base-T or 100Base-TX LAN and various data port interfaces convenient.
Features
Protocol: Synchronous HDLC (ISO 13239), PPP, CISCO® HDLC
10Base-T or 100Base-TX Ethernet bridge
Auto MDI / MDIX
Supports IEEE 802.3x flow control
Selectable data port: V.35, RS-530, RS-449, RS-232, X.21
Transparent Half / Full duplex support on WAN, LAN interface
Nx64, Nx56 timing clock generator for Sync WAN link
LEDs indication for LAN, WAN status

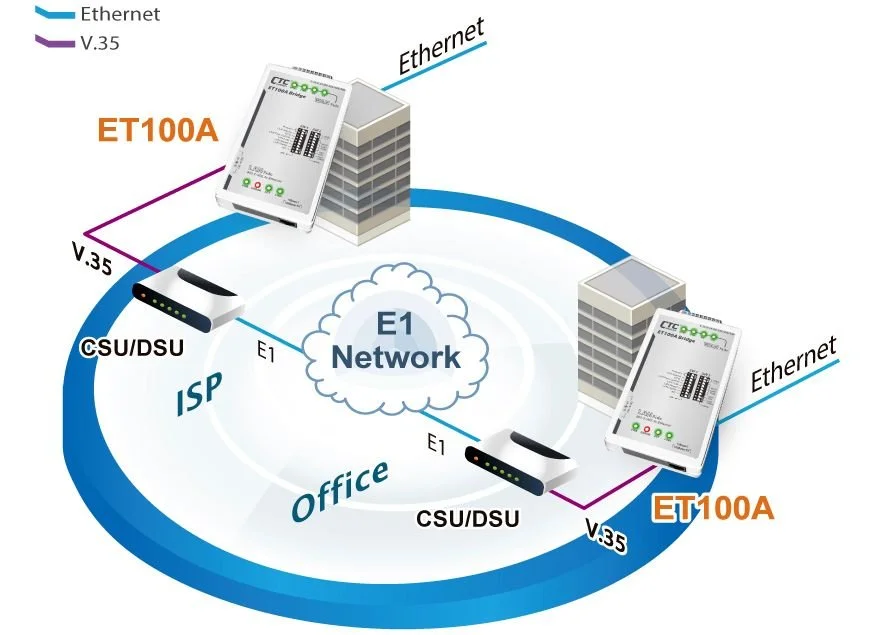

Application
Ethernet over TDM, Point to Point
HDLC Bridge Application
