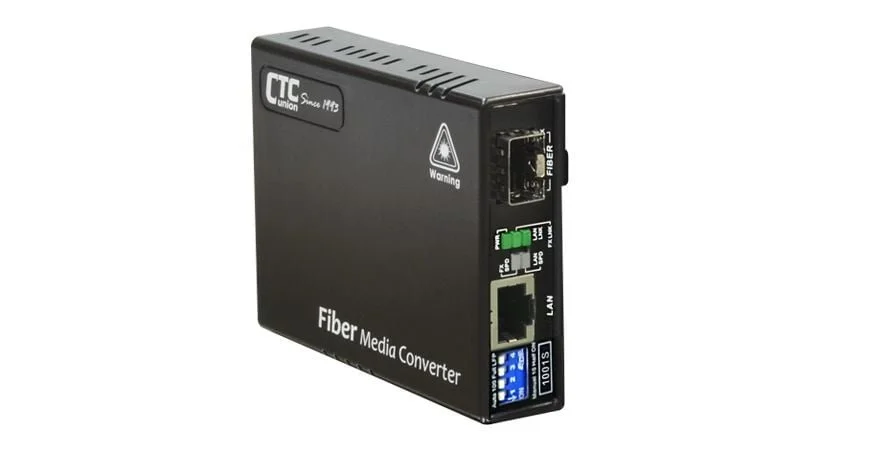

FMC-1001S

$0.00

Compact Media Converter - 100/1000Base-T to 100/1000Base-X SFP Media Converter

Compact Media Converter - 100/1000Base-T to 100/1000Base-X SFP Media Converter

100/1000Base-T to 100/1000Base-X SFP Media Converter

The FMC-1001S family are Gigabit Ethernet 10/100/1000Base-T to 100/1000Base-X non-managed stand-alone media converters, which give you the fiber cabling connectors, LC with SFP module. Pluggable SFP are available in both multi-mode and single mode types as well as BiDi which allows bi-directional transmissions using only a single fiber cable. Auto-negotiation will automatically tailor to convert full-duplex signals, according to IEEE 802.3u standards. LED indicators signal the power status of the converter, UTP port speed and Link status FX port speed and Link status.

Features

  • 10/100/1000Base-T to 100/1000Base-X Converter

  • Auto-Negotiation

  • Auto MDI/MDIX

  • Forward 2048 bytes (Max.) packets in switch mode (copper & fiber port in different speed)

  • Forward 16k bytes in converter mode (fiber & copper port at the same speed)

  • Provides DIP switch to set function; Select fiber speed (100/1000M); Select LPF enable / disable; Flow control enable / disable

  • Supports transparent Q in Q double tagged frame

  • Supports IEEE 802.1Q Tag VLAN pass thru

  • May be concentrated into FMC-CH17 chassis (Adapter Type only)

  • Supports store and forward switch mode

Data Sheet

Application

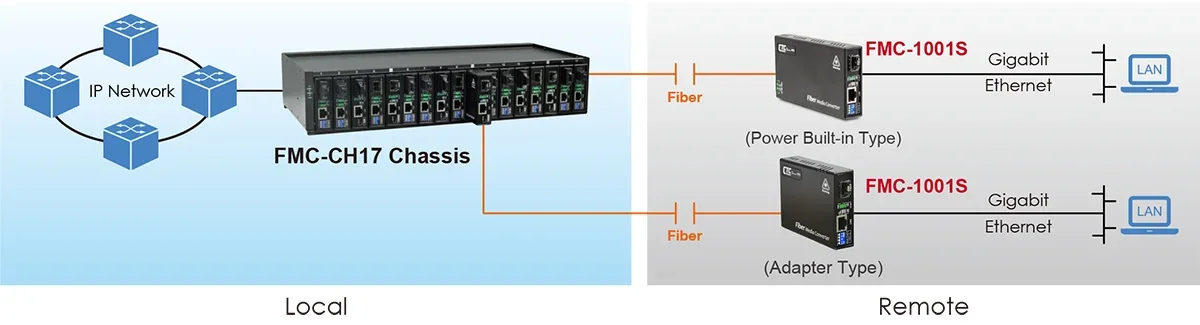

Figure 1: As Rack Module with Remote

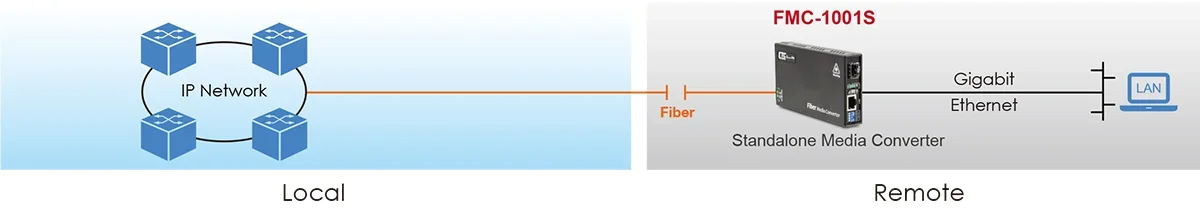

Figure 2: As Standalone Media Converter
