FMC-10/100

$0.00

Compact Media Converter - 10/100Base-TX to 100Base-FX Media Converter

Compact Media Converter - 10/100Base-TX to 100Base-FX Media Converter

The FMC-10/100 family are Fast Ethernet 10/100Base-TX to 100Base-FX non-managed stand-alone media converters, which give you the options to choose from the most popular fiber cabling connectors, ST, SC or FC. Both multi-mode and single mode converter models are available as well as BiDi which allows bi-directional transmissions using only a single fiber cable. Auto-negotiation will automatically tailor to convert both half-duplex and full-duplex signals, according to IEEE 802.3u standards. LED indicators signal the power status of the converter, UTP port speed, Link, and duplex status, FX port Link and duplex status.

Features

  • 10/100Base-TX to 100Base-FX Converter

  • Auto-Negotiation or forced mode

  • Auto MDI/MDIX

  • Forward 1600 bytes (Max.) packets

  • Supports flow control (Pause)

  • Supports Link Fault Pass-Through (LFPT)

  • Supports Far End Fault Indication (FEFI)

  • Forward 9K jumbo packets in converter mode (100M/Full)

  • May be concentrated into FMC-CH17 chassis (Adapter Type only)

Datasheet

Application

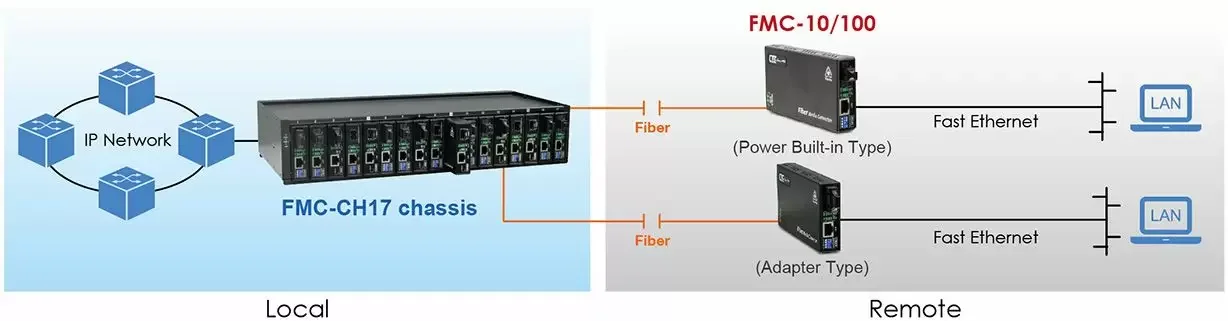

Figure 1: As Rack Module with Remote

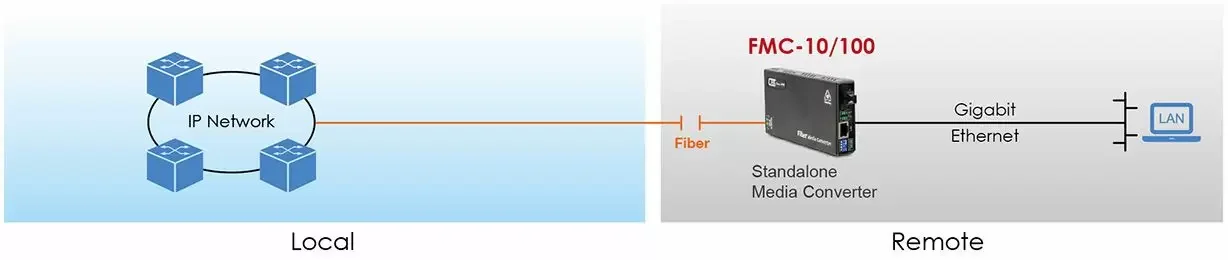

Figure 2: As Standalone Managed Converter
