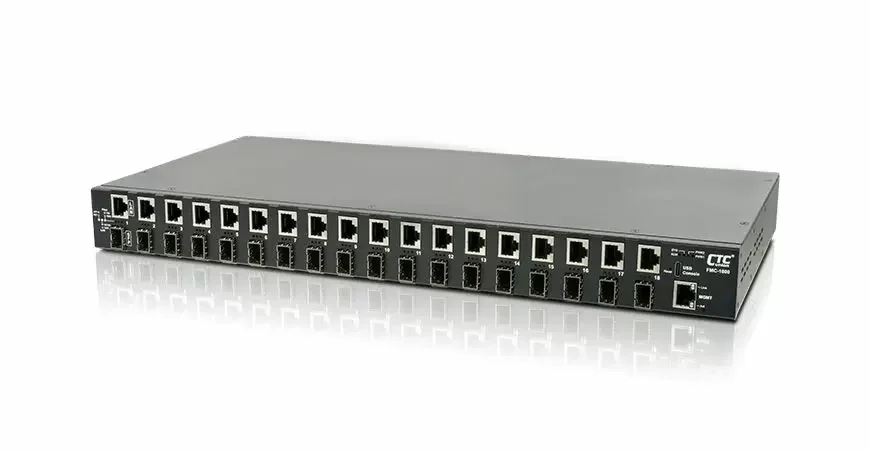

The 18-channel managed Gigabit Ethernet Media Converter Rack, FMC-1800 converts Ethernet copper 100/1000Base-TX to SFPs working at 100Mbps or 1000Mbps. FMC-1800 can connect to any RJ-45 Ethernet switch and supports any third-party standard SFP module from any SFP vendor. With different kinds of fiber optic media, both multi-mode and single mode fiber are available as well as BiDi which allows bi-directional transmissions using only a single fiber to extend the distance of Fast Ethernet and Gigabit Ethernet networks. With SNMP and Web-based management, the administrator can monitor, configure and control the activity of FMC-1800 remotely.
Features
1U 19” 18 channels Managed Media Converter Rack
18-port 100/1000Base-T to 18-port 100/1000Base-X SFP
Auto MDI/MDIX in TP port
Auto-Negotiation in TP port
Supports hot-swappable SFPs working at 100 Mbps or 1000 Mbps
Supports Web, Telnet, SNMP, Console Management
Local configuration via USB console port
Supports Link Pass-Through & Link loss Alarm
Supports any third-party standard SFP module
Supports SFP DDMI
Layer 2 wire-speed conversion with fully transparent function
Available in 3 types : power built-in AC, DC, AC+DC
Jumbo frame packets up 16k bytes

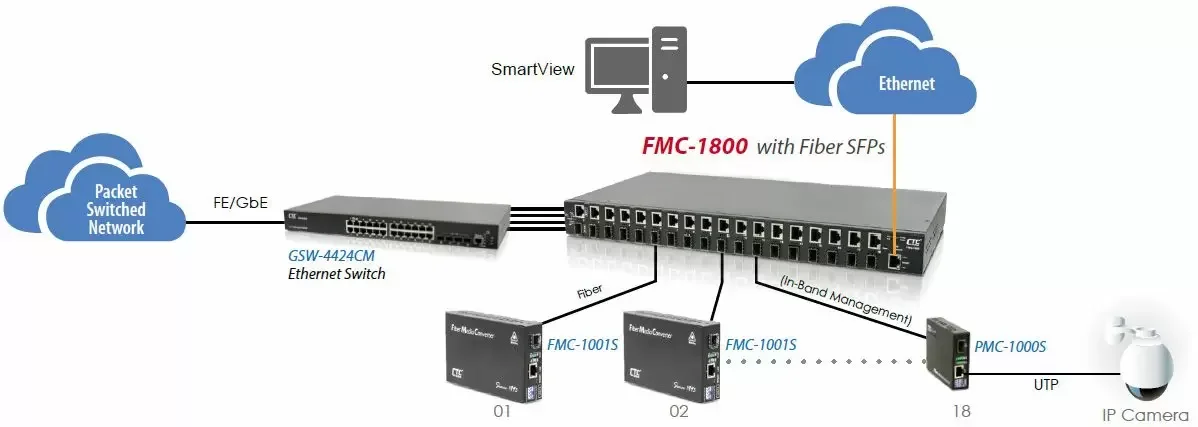

Application
