FMC-2000MS

$0.00

Compact Ethernet Switch with In-Band Management

Compact Ethernet Switch with In-Band Management

Web Smart OAM Managed 100/1000Base-T to 100/1000Base-X SFP GbE Switch

The FMC-2000MS family are Web Smart OAM/IP managed Gigabit Ethernet 10/100/1000Base-T to 100/1000Base-X fiber Ethernet Switch/Converter, which provide simple control and setting function on each Ethernet port through in band network via a Web browser. The FMC-2000MS Ethernet Switch/Converter gives you the fiber cabling connector, SFP-LC. Both multi-mode and single mode models are available as well as BiDi which allows bi-directional transmissions using only a single fiber cable. Auto-negotiation will automatically tailor to convert both half-duplex and full-duplex signals, according to IEEE 802.3u standards. LED indicators signal the power status of the Switch, UTP port speed, Link, and duplex status, FX port Link and duplex status.

Features

  • 10/100/1000Base-T to 100/1000Base-X SFP Ethernet Switch

  • Auto-Cross over for MDI/MDIX in TP port

  • Auto-Negotiation or Manual mode in TP port

  • Supports flow control Enable or Disable

  • Supports Jumbo Frame 16K Packet

  • Ingress/Egress Bandwidth control

  • Supports IEEE 802.3ah OAM management

  • Supports SNMPv1

  • Digital Diagnostic (DOM) SFP Support

  • Management Password Setting

  • Dying gasp (remote power failure detection)

  • Supports Link Fault Pass-Through ( LFPT ) Function

  • Supports Auto Laser Shutdown (ALS) Function

  • USB console port and Web management on stand-alone.

  • Supports On-Line F/W upgrade (local) by the Web manager

  • Supports 16 Tag VLAN Groups

  • RMON counters

  • May be concentrated into FMC-CH17 chassis (Adapter Type only)

  • May be used as a remote to FRM220-2000MS

  • Wall-Mountable

Datasheet

Application

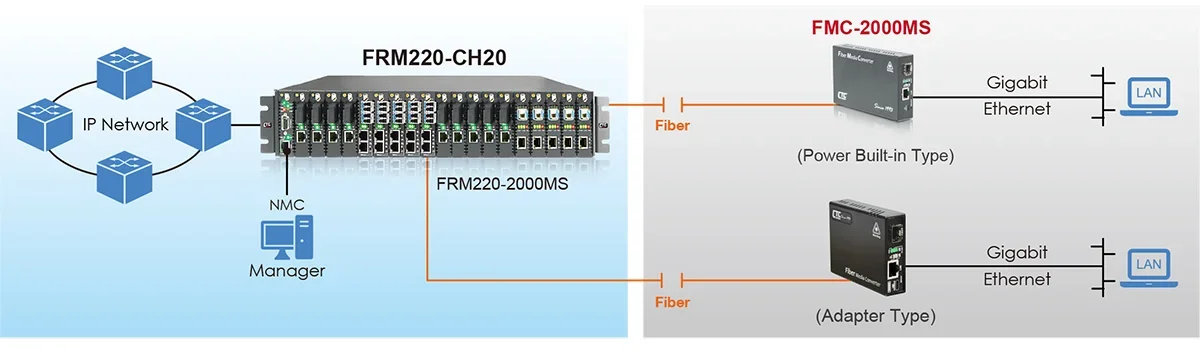

Figure 1: As a Remote to FRM220-2000MS

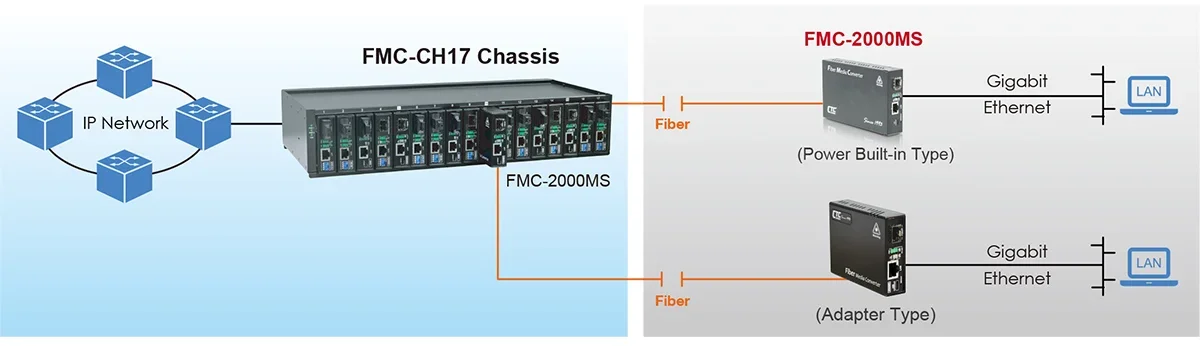

Figure 2: As Rack Module with Remote

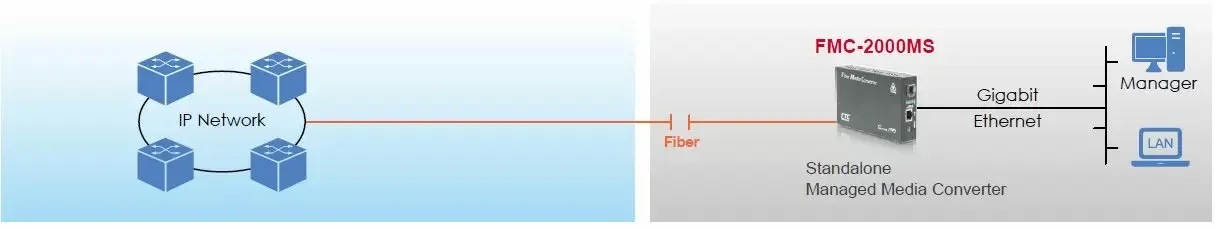

Figure 3: As Standalone Managed Converter
