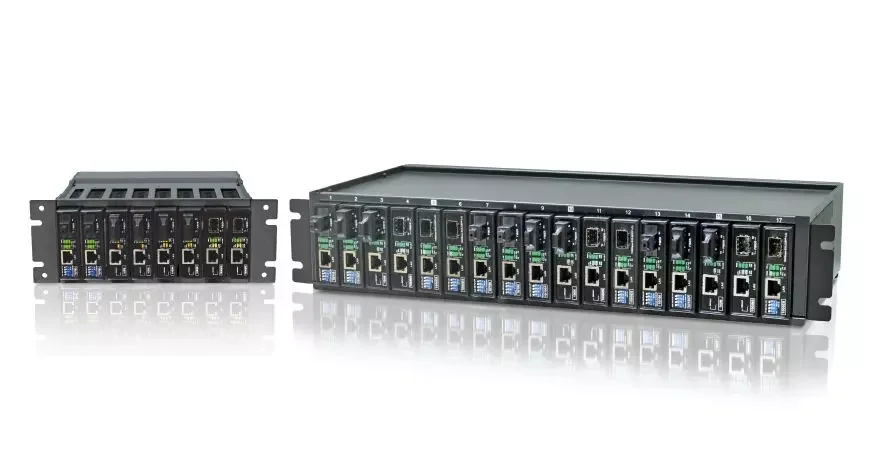

The FMC-CH17 is a 2U high 19" 17 slots chassis and the FMC-CH08 is a 2U high 10" 8 slots cassis. The FMC chassis provides an economic solution in low density fiber converter installations where no management features are required. Each FMC converter is an independent Ethernet to fiber or Ethernet to copper media converter that may be used as a standalone converter or placed in the FMC-CH17 or FMC-CH08 chassis. With two power supplies, the FMC-CH17 chassis supports redundant power from any of two power options while FMC-CH08 supports single power options. The AC supplies operate from (100-240VAC) and DC supplies operate from 18-60VDC. The built in cooling fan ensures that the temperatures in the rack remain within the tolerated working range.
Features
2U, 19", 17-Slot chassis with single or dual built-in power for AC or DC (FMC-CH17)
2U, 10", 8-slot chassis with single built-in power for AC or DC (FMC-CH08)
Cross flow cooling fan built-in. (FMC-CH17)
Designed for 19" Rack mounting
FMC units are hot swappable

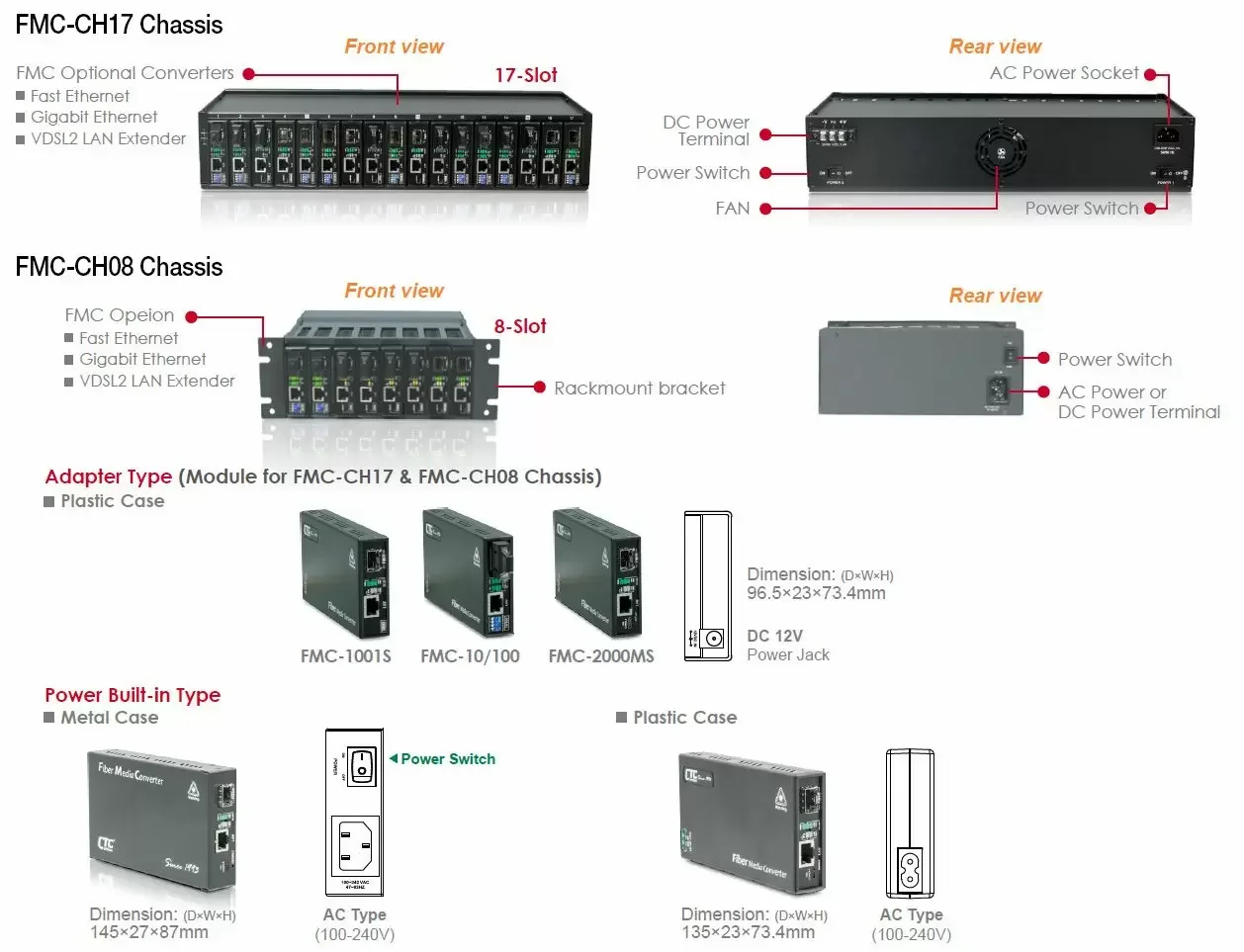

Chassis Overview
