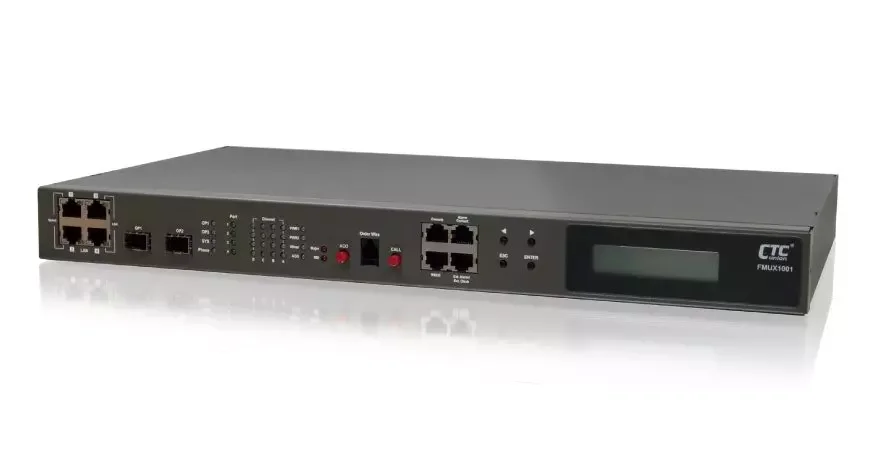

The 1U, 19" rack mountable, PDH fiber optic multiplexer transmits up to 16 channels plus a 10 / 100 / 1000Base-T (FMUX1001) / 10 / 100Base-TX (FMUX101) Ethernet channel over a single fiber optic link. The FMUX1001 / FMUX101 chassis supports redundant power and hot swappable design.
The AC supplies operate from 100 ~ 240VAC while DC supplies operate from 18 ~ 60VDC. From the rear of the chassis, one to four hot swappable quad E1 or T1 line cards, serial data communications (V.35, X.21, RS-530) or FXO/FXS voice cards are supported. The standard FMUX1001 configuration may be viewed or set via the front panel LCD/menu keys, serial VT-100 terminal connection, Telnet, web HTTP or SNMP.
Features
1U, 19" 4-slot chassis
16 E1 (2.048Mb/s) Multiplexer with 100 / 1000Mbps Ethernet and RS-232 data (async) Interface (FMUX1001)
16 E1 (2.048Mb/s) Multiplexer with 10 / 100Mbps Ethernet and RS-232 data (async) Interface (FMUX101)
RS-232 port for system console
One alarm output port, one Order Wire port
4x 10 / 100 / 1000Base-T Ethernet ports (FMUX1001)
4x 10 / 100Base-T Ethernet ports (FMUX101)
SNMP management
LCD plus menu keys for local configuration
Port based VLAN, tag based VLAN & bandwidth control
Telnet and web based remote configuration
2 plug-in SFP slot for optical SFP module
Forward 1024K byte packets on Ethernet port
