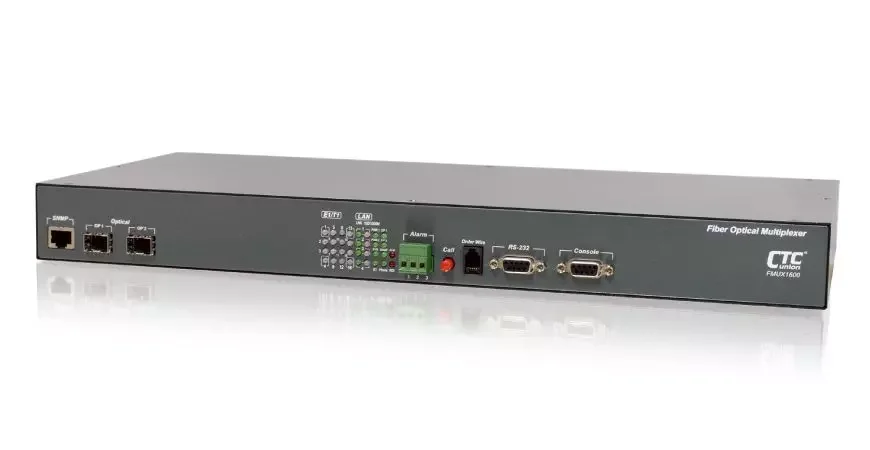

The 1U 19" rack mountable, PDH fiber optical Multiplexer transmits up to 16 / 8 E1 / T1 + 4 x 10 / 100 / 1000Base-T Gigabit Ethernet over a single fiber optic link. The FMUX1600 / FMUX800 chassis in available in three different power configurations; single AC, single DC, or AC+DC. The AC supplies operate from 90 ~ 240VAC while DC supplies operate from 18 ~ 60VDC. On the rear of the chassis, the BNC model provides 32 / 16 unbalanced 75 Ohm coaxial connections with BNC connectors while the RJ-45 model provides 16 / 8 balanced 120 Ohm connections over twisted pair wiring with RJ45 connectors.
With two SFP sockets on fiber ports, the FMUX1600 / FMUX800 gives you the fiber cabling connector SFP-LC, both multi-mode and single-mode are available as well as BiDi which allows bi-directional transmissions using only a single fiber cable. 1+1 Automatic optical line protection is also supported for the aggregate fiber ports. The standard FMUX1600 / FMUX800 configuration may be viewed or set via serial VT-100 terminal connection or SNMP card with web, telnet, and SNMP management.
Features
Provides 16 / 8 E1 / T1 G.703 transparent transmission over fiber
Provides 4x 10 / 100 / 1000 Mbit / s Ethernet Ports and 1x RS232 ch.
Provides one RS232 channel
Loopback test on E1 / T1 fiber port
Provides one hotline channel (order-wire)
Supports full / half duplex, 10M / 100M / 1000M, auto-Negotiation
Forward 10K byte jumbo packets on Ethernet port
Supports 1+1 fiber line protection. Less than 50ms
Complete alarm function and can monitor remote device status
Power combination AC220V and DC-48V for redundant options
Supports RS232 local management; Supports on-line f / w upgrade
Supports Web, Telnet, SNMP management (optional)
