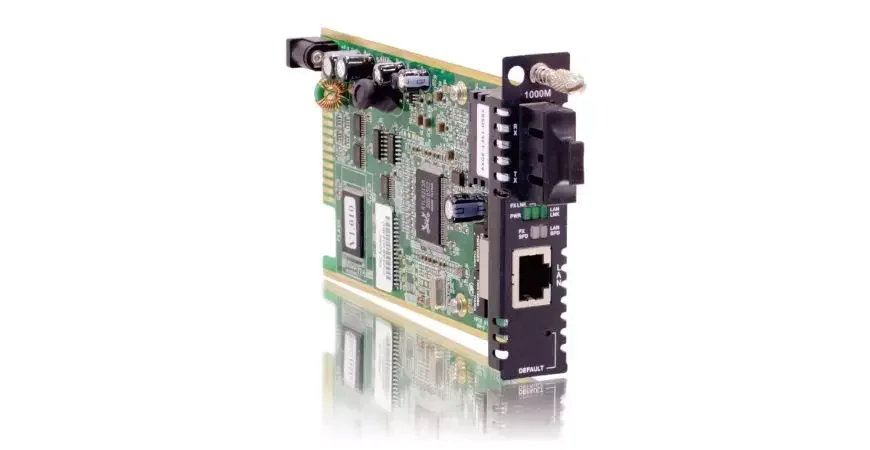

The Switch Card (FRM220-1000M(S) is an IEEE 802.3ah OAM compliant copper to fiber Gigabit Ethernet solution designed to make conversion between 10 / 100 / 1000Base-T and 100 / 1000Base-X with SFP modules (1000MS) and fixed type 1x9 SC connector (1000M).
With SNMP and Web-based management in the FRM220, the administrator can monitor, configure, and control the activity of each 802.3ah series card and remotely connected OAM compliant converter. Converter settings include bandwidth control, duplex, and speed configuration, VLAN tagging, limited Q-in-Q support and SFP DDMI. When used as stand-alone converters, the 1000M(S) can be managed by a friendly Web Smart user interface via any web browser.
Features
1 Port 10 / 100 / 1000Base-T to 1000Base-X Converter (FRM220-1000M)
1 Port 10 / 100 / 1000Base-T to 100 / 1000Base-X SFP Converter (FRM220-1000MS)
Auto-Cross over for MDI / MDIX in TP port
Auto-Negotiation or manual mode in TP port
Supports flow control Enable or Disable
Supports Jumbo Frame 9K Packet
Ingress / Egress bandwidth control
Supports 802.3ah-OAM in-band management
Firmware upgrade via Web (for standalone unit only)
Management Password Setting (for standalone unit only)
Dying gasp (remote power failure detection on stand-alone)
Supports Link Fault Pass-Through (LFPT ) Function
Supports Auto Laser Shutdown (ALS) Function
Allow IP settings web or console management
Supports D / D function for SFP fiber transceiver
Supports 16 Tag VLAN Group
RMON counters (for standalone unit only)
