In-Band Managed FE Media Converter: Dual Channel 10/100Base-TX to 100Base-FX In-Band Managed Converter

In-Band Managed FE Media Converter: Dual Channel 10/100Base-TX to 100Base-FX In-Band Managed Converter

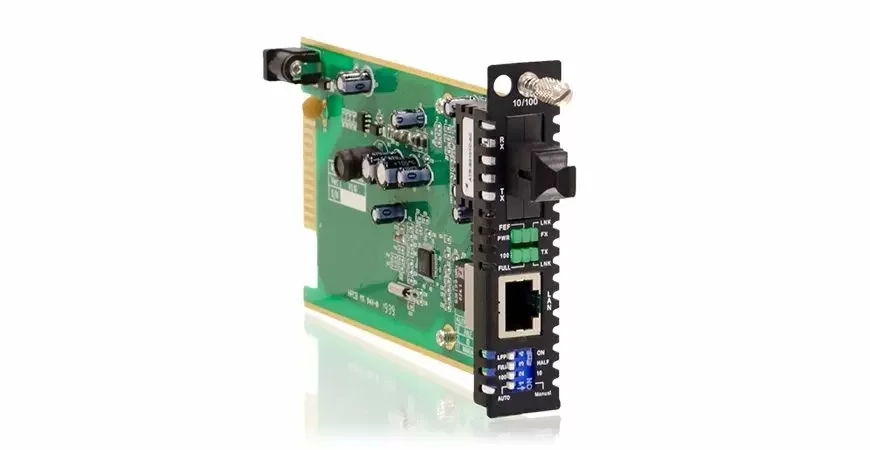

The FRM220-10/100iS-2 is a dual (2 in 1) 10/100Base Ethernet to 100Base-FX fiber slide-in card converter based on the popular FRM220-10/100i. With advanced features like bandwidth control, this dual media converter is targeted for central equipment in metro LAN, campus, enterprise and FTTx applications.

By offering in-band management, this converter can be completely controlled and monitored in a centrally located managed rack. By offering two completely isolated converters on one card, this card can effectively double the conversion capacity of a rack.

Features

  • Dual independent converters 10/100Base-TX to 100Base-FX

  • Auto-Negotiation or forced mode

  • Auto MDI/MDIX

  • Forward 2046 bytes (max.) packets in switch mode

  • Supports IEEE 802.1Q Tag VLAN pass thru

  • Supports Q in Q double tagged frame transparent

  • Forward 9K jumbo packets in converter mode

  • Supports local / remote In-band management (Monitor and Configure) by the SNMP manager (NMC)

  • Bandwidth control (Nx32Kbps or Nx512Kbps) & flow control (Pause)

  • Supports remote CPE power fail detect (dying gasp)

  • Supports Far End Fault Indication (FEFI) and Link Fault Pass-Through (LFPT)

  • Supports Loop Back Test and RMON counter

  • D/D function for supported SFP fiber transceiver

  • Auto Laser Shutdown (ALS) and Fiber Hardware Reset (FHR)

  • Online local / remote f/w upgrade

Datasheet

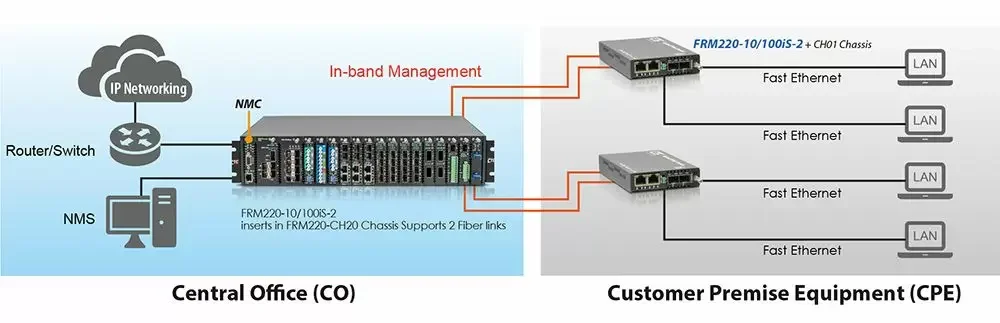

Application
