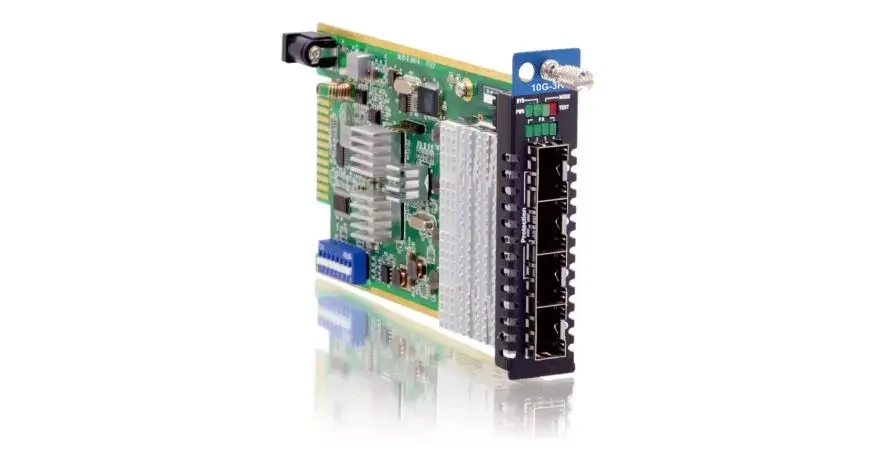

10G 3R Multi-rate Transponder with Optical Line Protection

10G 3R Multi-rate Transponder with Optical Line Protection

The FRM220-10G-3R has 4 SFP+ slots that can be configured as a dual channel 10G 3R multi-rate transponder or in a 1-to-2 port protection mode. The device provides a flexible transmission of various protocols, such as 1G/10G Ethernet, SDH STM16/STM64, OTU1/OTU1e/OTU2/OTU2e, Fiber Channel 1/2/4/8/10, OBSAI, CPRI, etc. Using SFP+ ports with dedicated CWDM or DWDM wavelengths, the 10G transponder supports multi-rate functionality with optical data rates from 1Gbps up to 10Gbps. With its functionality the FRM220-10G-3R transponder is also suitable as a repeater for transmission over extended distances. In addition, the use of state of the art components greatly reduces the power requirements and heat dissipation factors over our previous transponders.

Features

  • Multi-rate supports 1Gbps ~ 10Gbps

  • Protocol Transparent 3R fiber Media Transponder/Repeater

  • Supports 1+1 Optical Line Protection, switching time <50ms

  • Supports 2 channels with different bit rate

  • Supports Loopback Test.

  • Supports 1550nm ITU-T C-band tunable DWDM SFP+ Transceiver

  • SFP DDM Information

  • Firmware Upgrade

  • Setting from DIP Switch, Console, NMC

  • Supports Auto Laser Shutdown (ALS)

  • Supports LFPT function

Datasheet

Application

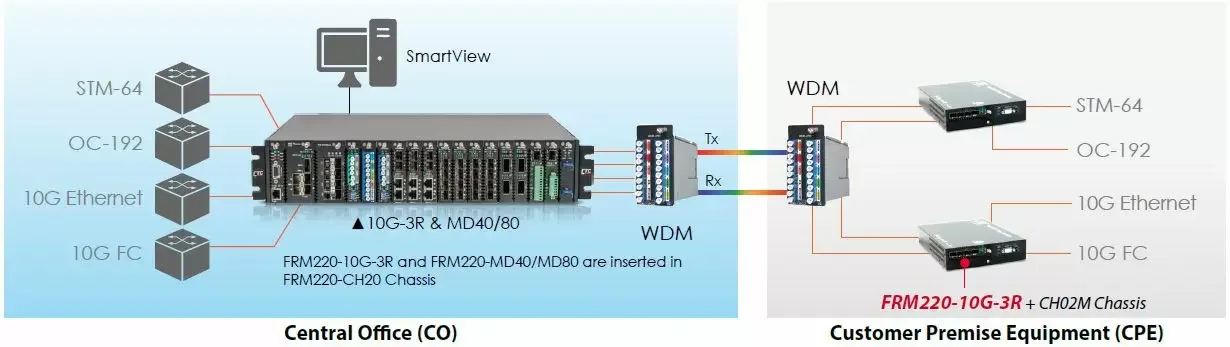

10G-3R CWDM P to P Application
