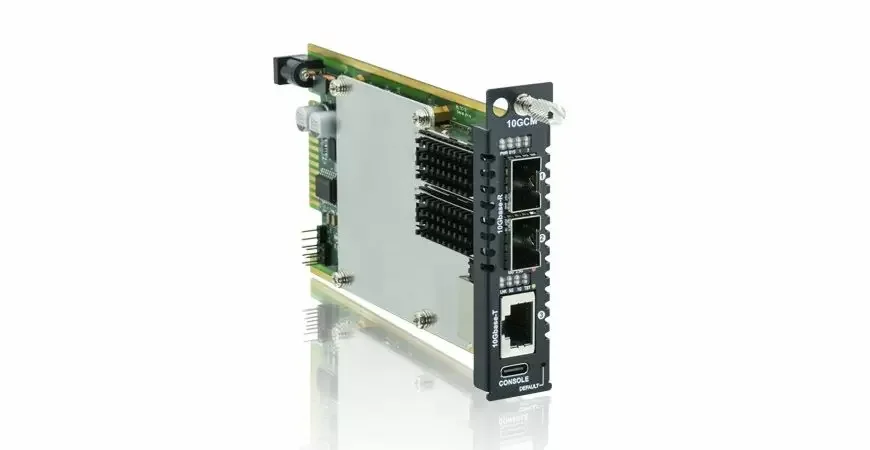

FRM220-10GCM

10G In-band managed media converter, FRM220-10GCM is a 2-port 10GBase-R + 1-port 100M/1G/2.5G/10GBase-T Ethernet converter. With embedded SNMP and Web-based management, the network administrator can monitor, configure and control the activity of each 10G converter both locally and remotely.

This media converter supports duplex and speed configuration, jumbo frames allocation of 10G Gigabit interfaces. By offering additional function, this 10G converter also provides 1-port 100M/1G/2.5G/10GBase-T RJ45 port allowing 100M/1G/2.5G/10G based devices to connect to 10G Ethernet fiber backbone. This 10G converter may also be controlled and monitored via an NMC in a FRM220 managed chassis.

Features

• 2-port 1G/2.5G/5G/10G Base-R SFP+ with 1-port 100M/1G/2.5G/5G/10GBase-T RJ45

• Supports local / remote In-band management

• Standalone IP Based, Web GUI, Telnet, SNMP management

• Auto-Negotiation / Auto MDI/MDIX

• Forward 10K bytes Jumbo packets (max.)

• Supports Flow control (Pause)

• Supports BERT / loopback test

• Supports Far End Fault Indication (FEFI)

• Supports Link Fault Pass-Through (LFPT)

• D/D function for supported SFP fiber transceiver

• Auto Laser Shutdown (ALS)

• Online local / remote f/w upgrade

• Fiber Redundant mode

• Supports DWDM Tunable SFP+
