FRM220-40G-1Q4S

$0.00

40G QSFP+ to 4 × 10G SFP+ Transponder

40G QSFP+ to 4 × 10G SFP+ Transponder

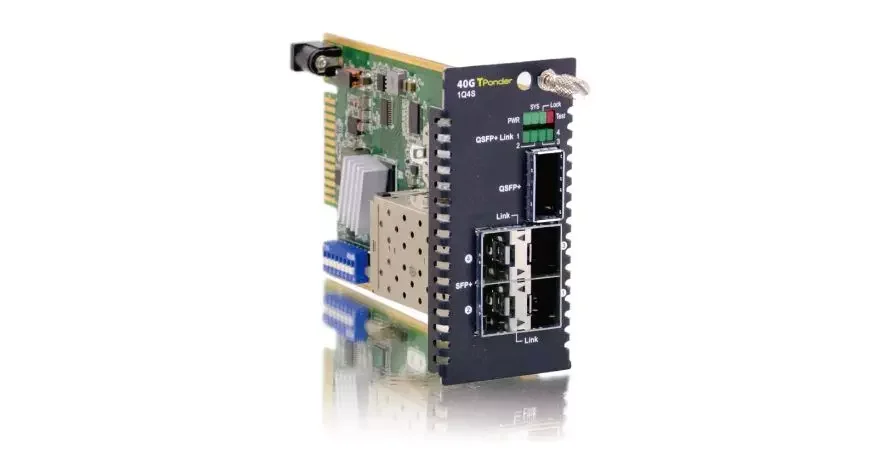

The FRM220-40G-1Q4S is a 40G QSFP+ to 4 × 10G SFP+ transponder that provides media conversion and distance extension for 40G over 10G links. The FRM220-40G-1Q4S meets the growing need for more bandwidth for data centers and enterprises. The emergence of high-end servers and Ethernet switches with 40G Ethernet interfaces increases the need for media conversion (multi-mode to single-mode) and link range extension. The FRM220-40G-1Q4S is a two slot wide hot-swappable card with one QSFP+ slot for QSFP+ 40G transceiver and four SFP+ slots for SFP+ 10G transceivers. The installation and setup is simple plug and play. The FRM220-40G-1Q4S can be inserted into any powered FRM220-CH20 chassis with QSFP+ and SFP+ transceivers required for the application.

Features

  • Device Management via FRM220 Chassis with NMC

  • Multiple functions in one module: 40G converter/repeater and Quad 10G optical multiplexer

  • 40G link interface -- Ethernet/IEEE: 802.3ba 40GE-LR4

  • 40G multi-link (fiber) interfaces -- Ethernet/IEEE: 802.3ba XLAUI and OIF: CEI-11G

  • QSFP+ ports for flexibility and scalability

  • Hot-swap support (module and interfaces)

  • Supports 1 × 40G QSFP+ and 4 × 10G SFP+

  • Supports DMI function for QSFP+ & SFP+ module

  • Supports Loopback test function

  • 3R function

  • Supports LFPT function

Datasheet

Application

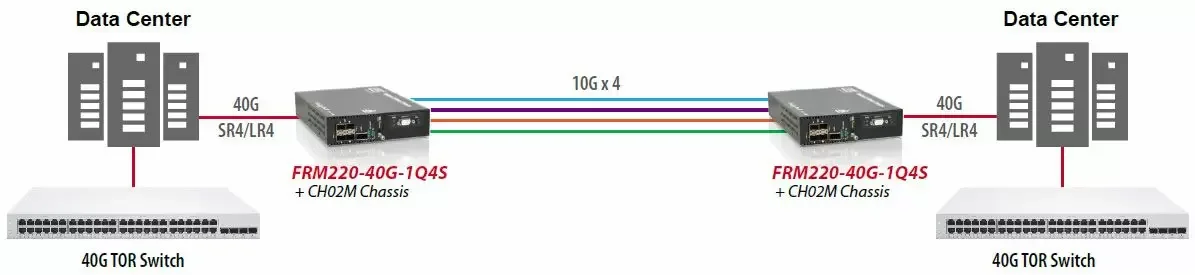

40G SR4/LR4 P to P Application
