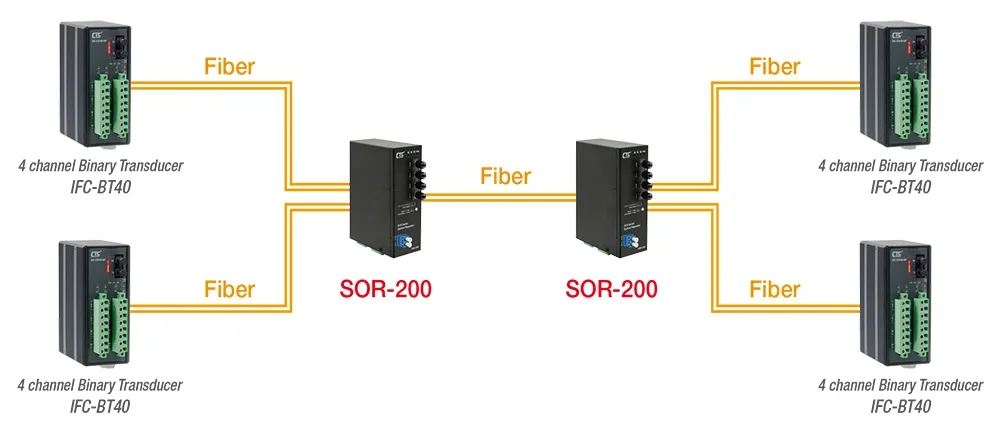

The Optical repeater, SOR-200, is a 2 channel serial optical signal over a long distance single mode fiber device. Asynchronous signals can be connected to client side port 1 and 2. thus two serial inputs with ST connectors are available and these can be multiplexed onto trunk port 3. Two devices with and optical interface can be connected to port 1 and 2 via MM fiber. These signals are transmitted to trunk port3 via 20km SM fiber with LC connector. The SOR-200 supports DC voltages or AC voltage sources. To supports commissioning, loops can be activated for client side port 1/2 so that the input signals are reflected at each port to support commissioning of the optical fiber connections.
The Optical repeater, SOR-200, is a 2 channel serial optical signal over a long distance single mode fiber device. Asynchronous signals can be connected to client side port 1 and 2. thus two serial inputs with ST connectors are available and these can be multiplexed onto trunk port 3. Two devices with and optical interface can be connected to port 1 and 2 via MM fiber. These signals are transmitted to trunk port3 via 20km SM fiber with LC connector. The SOR-200 supports DC voltages or AC voltage sources. To supports commissioning, loops can be activated for client side port 1/2 so that the input signals are reflected at each port to support commissioning of the optical fiber connections.
Supports one trunk port for distances up to 20 km via SM fiber
Automatic baud rate adjustments to synchronous and asynchronous for serial signals
One alarm contact for signaling
Communication failure alarm detection
LED's for data transfer and alarm indication
Bidirectional transmission of two optical ports over one single mode fiber
