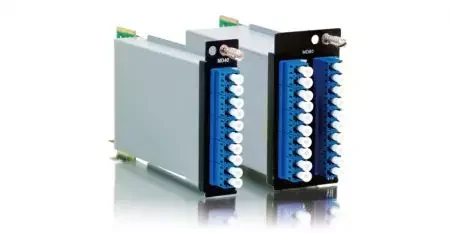

The FRM220-CWMD Mux/DeMux are modular design cards that support ITU-T G.694.2 wavelengths between 1271nm to 1611nm in 20nm increments. The FRM220-CWMD modules are protocol and rate transparent allowing different services such as 10G Ethernet, 10GFC, STM-64, OC-192 to be transported across the same fiber link. The passive FRM220-CWMD Mux/DeMux modules are available in 4 and 8-Channel (wavelength) models, supporting a variety of wavelength combinations and port configurations. The small and compact size of the CWDM modules yields one of the highest port densities in the industry. A 2U high 19-module FRM220 chassis populated with modules can yield up to 120 channels of capacity.
FRM220-CWMD modules are passive deviceas that require no external power. They can also be installed in an FRM220 powered chassis with a NMC management module¹ and can be managed using SmartView EMS device management software, third-party SNMP software, Telnet or a serial console port. The modules can be installed in any FRM220 chassis equipped with other FRM220 media converters and transponders to provide a multi-service platform capable of delivering Ethernet, TDM, Voice and other services across a CWDM fiber common link.
Features
Full native mode performance
Passive model requires no power
Protocol transparent, no limitation
Utilizes industry standard ITU CWDM wavelength
Standard LC connectors
Passive device that can be installed in a powered chassis for managed applications
Integration with Transponder in FRM220 chassis for CWDM application
Application
Figure 1 : 4 channels Duplex Transmission CWDM Mux & Demux

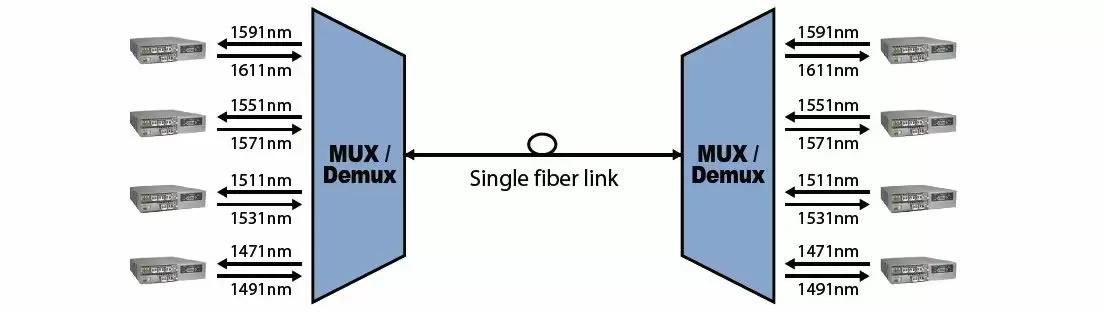

Figure 2: 4 channels Bi-Directional Transmission CWDM Mux & Demux
