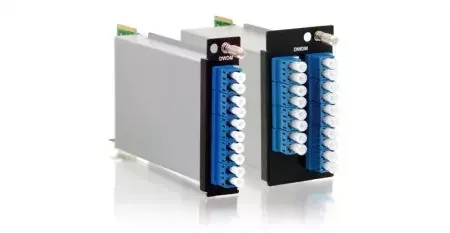

CTC Union DWDM MUX DEMUX Modules, with 100GHz channel spacing, can be used to combine or separate wavelength channels at standard ITU grid. We supply the common configuration including 4, 8, 16 channels. These DWDM modules passively multiplex the optical signal outputs from 4 or more electronic devices, and send them over a single optical fiber and then de-multiplex the signals into separate, distinct signals for input into electronic devices at the other end of the fiber optic link. All the DWDM MUX DEMUX modules provide excellent optical performance and high reliability to ease of fiber handling and power saving solution.
Features
Low Optical Insertion Loss
High channel isolation
Low PDL
Good channel-to-channel uniformity
Exceptional reliability and stability
Reliable passive WDM optical technology
Scales easily for ring networks
Compliance with RoHS
Application
Figure 1 : The DWDM transceivers connected to DWDM Mux/Demux should have the same wavelength as the client.

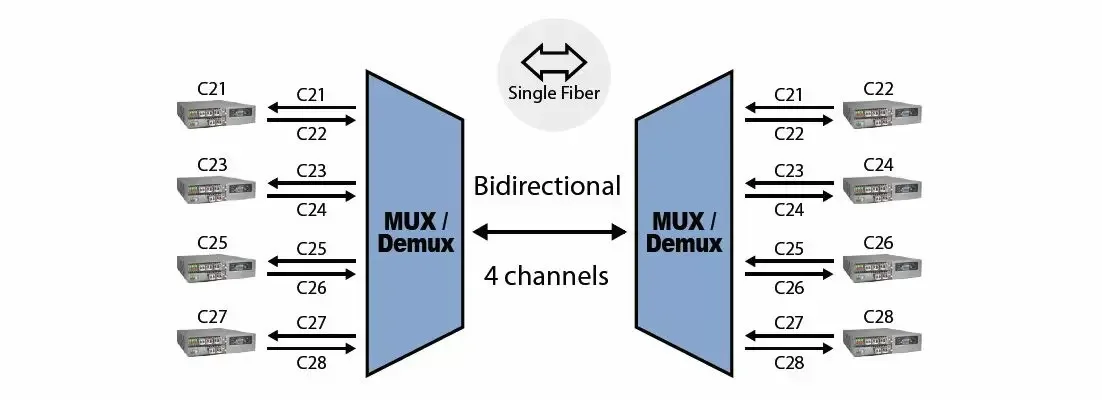

Figure 2: The DWDM transceivers should have the same wavelength as the transmit wavelength of the client port.
