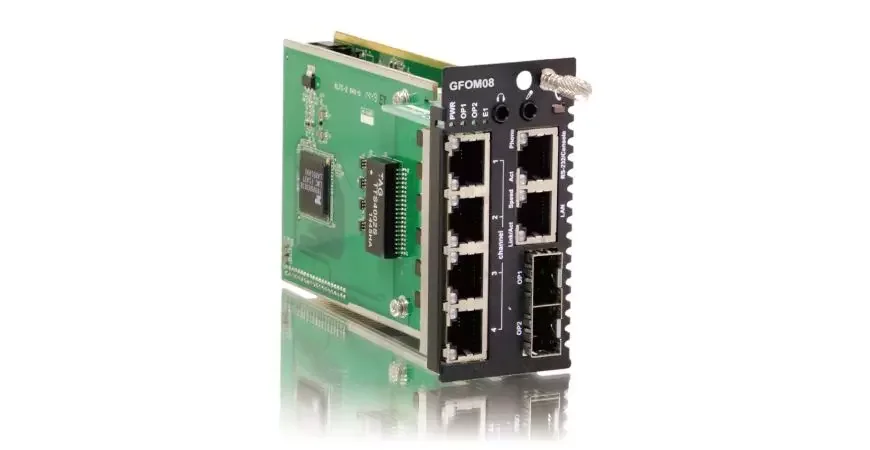

The FRM220-GFOM04/GFOM08 is a 4/8 channel E1/T1 fiber multiplexer with an additional Gigabit Ethernet trunk, plus order wire and clear channel RS- 232, constructed as a two slot wide card for the FRM220 series. When the FRM220-GFOM04/GFOM08 card is placed in the FRM220 rack with NMC, the administrator can view the converter card's status, type, version, fiber link status and alarms. Remote, fiber connected standalone card, can also be managed through in-band management via the chassis NMC. The card can be configured to enable or disable the port, reset the port, and provide local or remote diagnostic loopback. The 1+1 redundant optical aggregate of this multiplexer employs industry standard pluggable optics (SFP) operating at 1.25Gbps data rates. The SFP modules can be chosen to support single-mode, multi-mode, single fiber bi-directional or Coarse and Dense Wave Division Multiplexing (CWDM and DWDM).
Features
8 channels unframed E1/T1 (transparent)(FRM220-GFOM08)
4 channels unframed E1/T1 (transparent)(FRM220-GFOM04)
10/100/1000Base-T Ethernet
Auto MDI/MDIX & Auto-Negotiation or Force Mode
Supports flow control 802.3x & 9K jumbo packets
Supports link fault Pass-Through for Ethernet
One clear channel RS232 up to 250Kbps(Async)
1+1 fiber protection, switching time < 50ms
Supports Digital Diagnostics Monitoring Interface (DDMI) SFP
AIS on signal loss on E1/T1 and fiber port
Loopback test on E1/T1, RS232, fiber ports
Supports local or remote In-band management (Monitor or Configure status) by SNMP manager and console port
Supports Order wire Ear / Microphone port
Supports On-Line F/W upgrade & Dying Gasp
Application

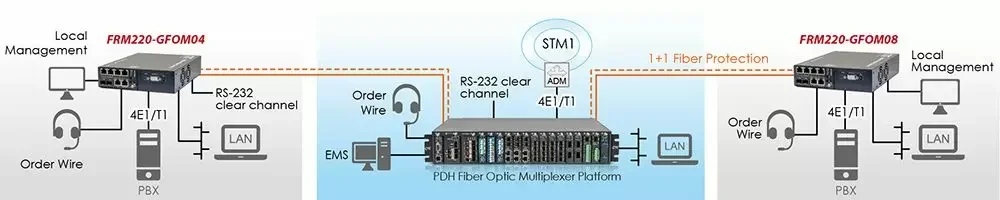

Managed 4E1/T1 + Gigabit Ethernet Fiber Optical Multiplexer Application
