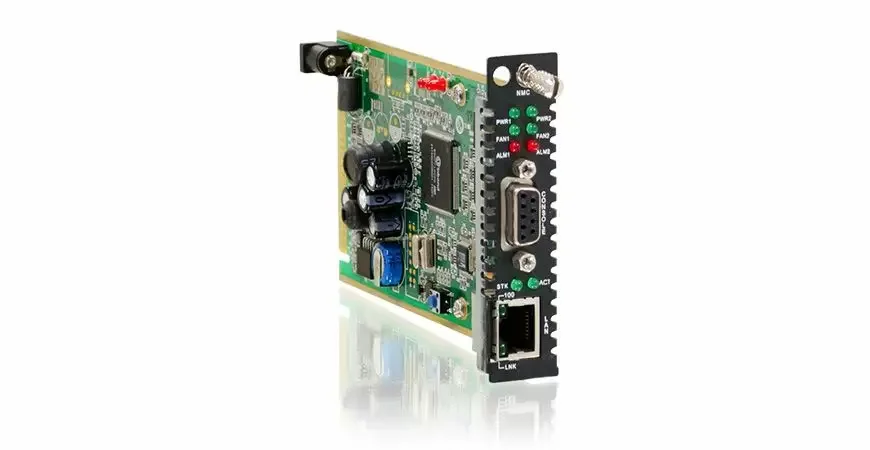

The Network Management Controller card (FRM220-NMC-R3 ) is placed in a compatible FRM220 series chassis to provide device management functions. The management interface supports a local RS-232 serial console or remote TCP/IP management by Telnet, HTTP and SNMPv1, v2c protocols and is designed to be hot swapped so that it may be field replaced without affecting any online service of any other rack cards. The card also supports online firmware upgrade from TFTP server, using any user interface, without affecting any other inserted line card's transmissions. Easy software update means the management card will always support the latest FRM220 Series cards, such as transponders, EDFA, CWDM/DWDM and the latest FRM220A-2000EAS series. Support for any standard NMS is provided by the included enterprise MIB file. CTC Union also provides and maintains our own EMS (Element Management System) which is a Java based client/server manager for monitoring and maintaining a large number of network elements over a long period of time.
Features
NMC-R3 card provides central management for FRM220-CH20, FRM220-CH08, FRM220-CH04A, CH02/SMT and CH02/NMC
User interfaces for serial console, Telnet & Web
Configure, monitor and provide fault management for all installed line cards
Monitor power and fan status in chassis (CH20, CH08 & CH02/SMT only)
Provides upgrade feature for most line card types
SNMP agent for complete management by enterprise MIB
Running System log with time stamping for SNTP (time server)
Parameter management for quick configuration, configuration copy/backup/restore
Card alias and inventory by type and serial number
Linux Kernel based for high stability and reliability
