FRM220-OAB15

$0.00

Optical Amplifiers Booster: Single Channel EDFA Booster

Optical Amplifiers Booster: Single Channel EDFA Booster

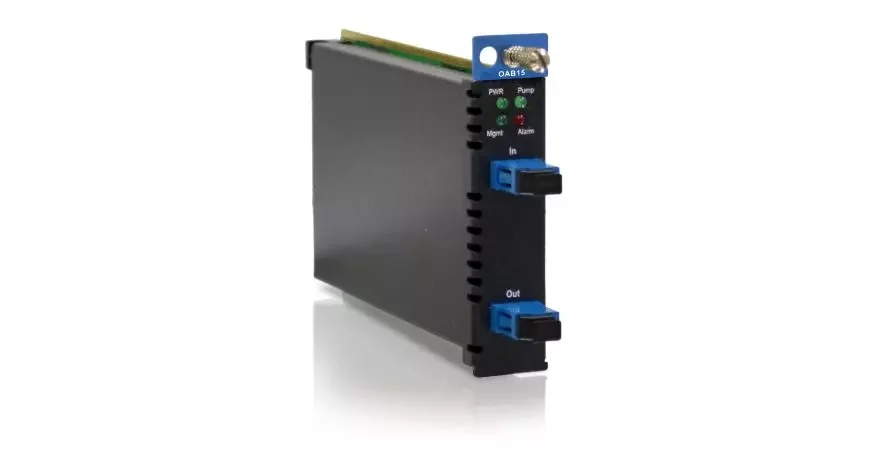

The FRM220-OAB15 is a FRM220 chassis rack managed single channel Erbium Doped Fiber Amplifier (EDFA) booster line card for C-band. It has a large dynamic range while providing excellent broadband noise performance. It provides Automatic constant output Power Control (APC) and Automatic Constant Current (ACC) via rack management or RS-232 console interface. Its fast transient suppression feature allowing the output power to be kept at a constant level when there are fast changes in input power.

Features

  • Single channel EDFA with FRM220 chassis rack management

  • Up to 15 dBm output power

  • Output level constant control mode

  • Output current constant control mode

  • Low noise figure

  • Low power dissipation

Datasheet

Application

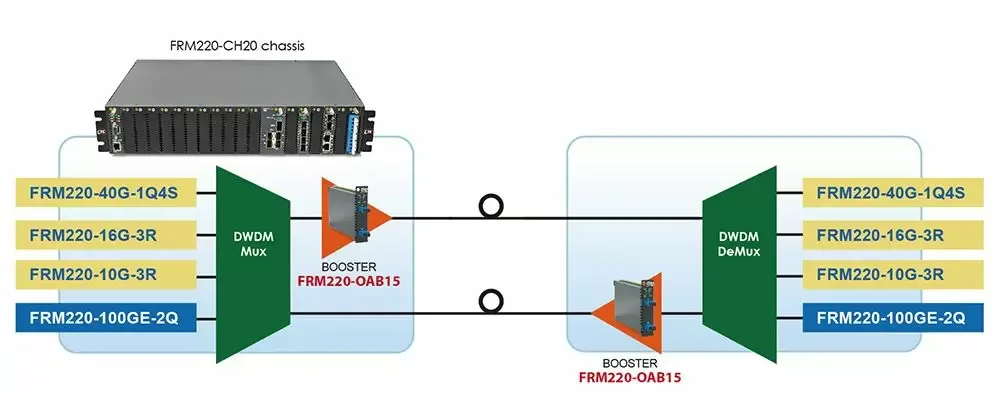

EDFA booster DWDM P to P Application
