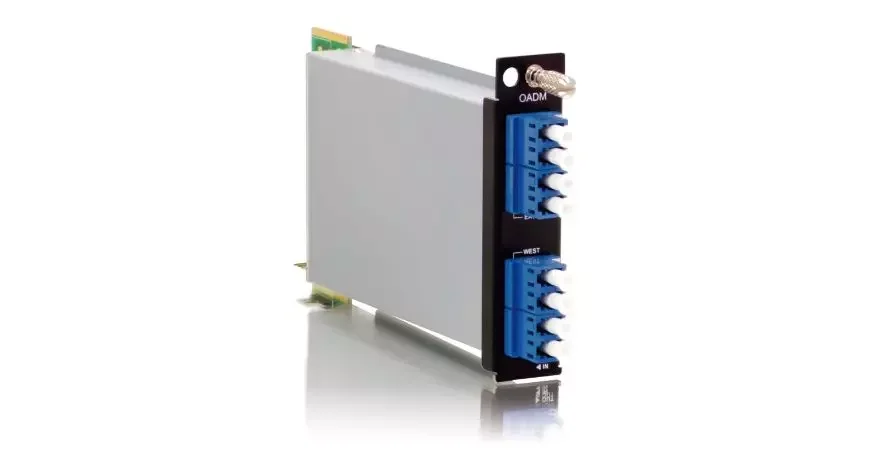

The FRM220-OADM Optical Add / Drop Multiplexer are modular designed cards that support ITU-T G.694.2 wavelengths between 1271nm to 1611nm in 20nm increments. The FRM220-OADM Optical Add / Drop Multiplexer takes a single wavelength from a trunk, pulls the signal out, and allows a new signal at the same wavelength to be inserted into the trunk at roughly the same spot.
All the other wavelengths pass through the Add / Drop Multiplexer with only a small loss of power (usually < 2.5dB including connectors and adapters). FRM220-OADM modules are passive devices that require no external power. They can also be installed in an FRM220 powered chassis with a NMC management module and can be managed using SmartView EMS network management software, Telnet or a serial console port. The FRM220-OADM modules can be installed in any FRM220 chassis equipped with other FRM220 media converters and transponders to provide a multiservice platform capable of delivering Ethernet, TDM, Voice and other services across a CWDM fiber common link.
Features
Single Add / Drop Channel
Operating channel: 1471, 1491, 1511, 1531, 1551, 1571, 1591, 1611nm
Passive optical module, no power required
Protocol transparent, no limitation
Utilizes Industry standard ITU CWDM wavelengths
Optical connectors: LC / UPC
