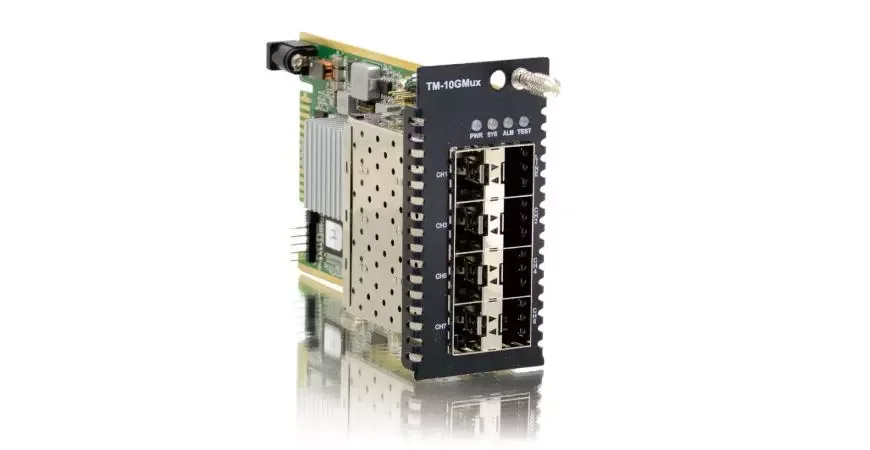

The FRM220-TM-10GMux is a 7x 1GE to 10G Muxponder. Based on TDM technology, the Muxponder transports seven separate Gigabit Ethernet data streams into a 10 Gbps SFP+ Based trunk port. This solution provides significant cost reduction and excellent fiber utilization when compared to CWDM optical multiplexing. The FRM220-TM-10GMux incorporates 7x 1GE SFP based access interfaces that can accommodate various types of SFP. Such as Multi-mode, Single mode and 1Gbps copper SFPs.
The trunk port is a SFP+ 10Gbps permitting flexible connectivity options between the Muxponders either in a WDM system or directly between two devices. Two types of housings are available for installation in a 19” FRM220 chassis. 20 slots are provided by using the FRM220-CH20 chassis 2U while the 8 slots are provided by using FRM220-CH08 Chassis 1U. Both housings can be monitored and configured through SNMP, Web GUI or Telnet using a NMC management module.
Features
7x 1 GE to 10G
10 Gbps trunk port rate
Network management via NMC
Remotely activated local or remote loopback
7 independent 1 GE services over 10G trunk port
Supports ITU-T C-band tunable DWDM SFP+ transceiver
SFP+ digital diagnostics monitoring
Hot swappable
In-Band management
