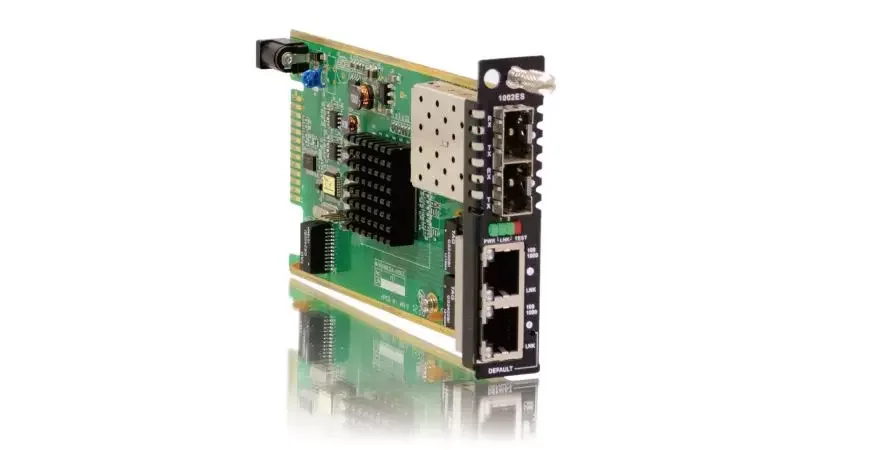

The dual copper and dual fiber Gigabit Ethernet switch (FRM220A-1002ES) designed to make conversion between 10 / 100 / 1000Base-T and 100 / 1000Base-SX / LX with SFP connector. With SNMP and Web-based management in the FRM220 or FRM220A chassis the network administrator can monitor, configure, and control the activity of each FRM220A-1002ES switch card locally via the chassis management.

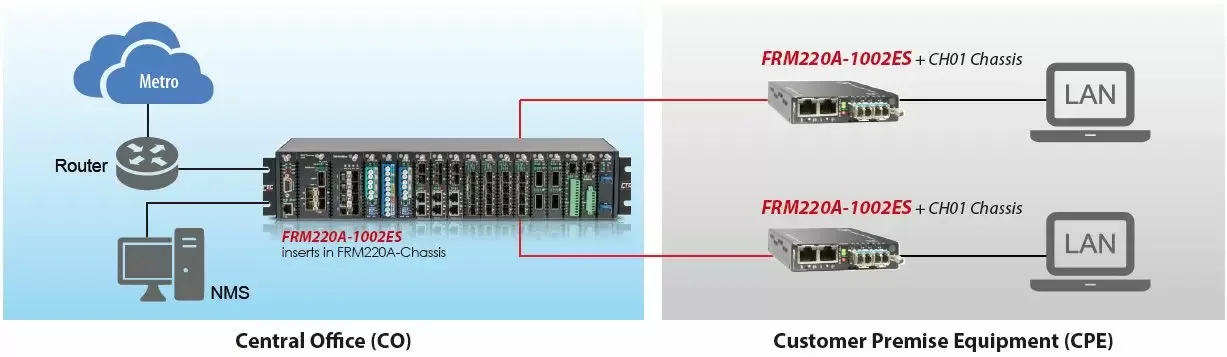

Based on a powerful L2 switch architecture, this converter supports bandwidth control, duplex and speed configuration, VLAN tagging, Q-in-Q, QoS, jumbo frames as well as auto laser shutdown, and link fault pass through. When placed stand-alone, this card may only be managed via local serial console when placed in a CH01M single slot type chassis.
Features
2-Port 10 / 100 / 1000Base-T and 2-Port 100 / 1000Base-X Switch
Auto-Cross over for MDI / MDIX in TP port
Auto-Negotiation or manual mode in TP port
Supports flow control Enable or Disable
Supports Jumbo Frame 10K Bytes
Supports 16 Tag VLAN Group
Supports Double VLAN tag (Q-in-Q)
Supports Bandwidth control
Supports Loop Back Test
Supports Link Fault Pass-Through (LFPT) Function
Supports Auto Laser Shutdown (ALS) Function
Supports local management on FRM220A rack management.
Console management on stand-alone.
Supports D / D function for SFP fiber transceiver
Provide Product information for management
